Bathroom Door Mortice Privacy Lock 76mm

Product Code:
L5057SZ
Est. Delivery: TBC
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

£2.80 Incl. VAT
Oops! Please select from the options
  • 5+
    £2.72 Incl. VAT
  • 10+
    £2.65 Incl. VAT

Product Description

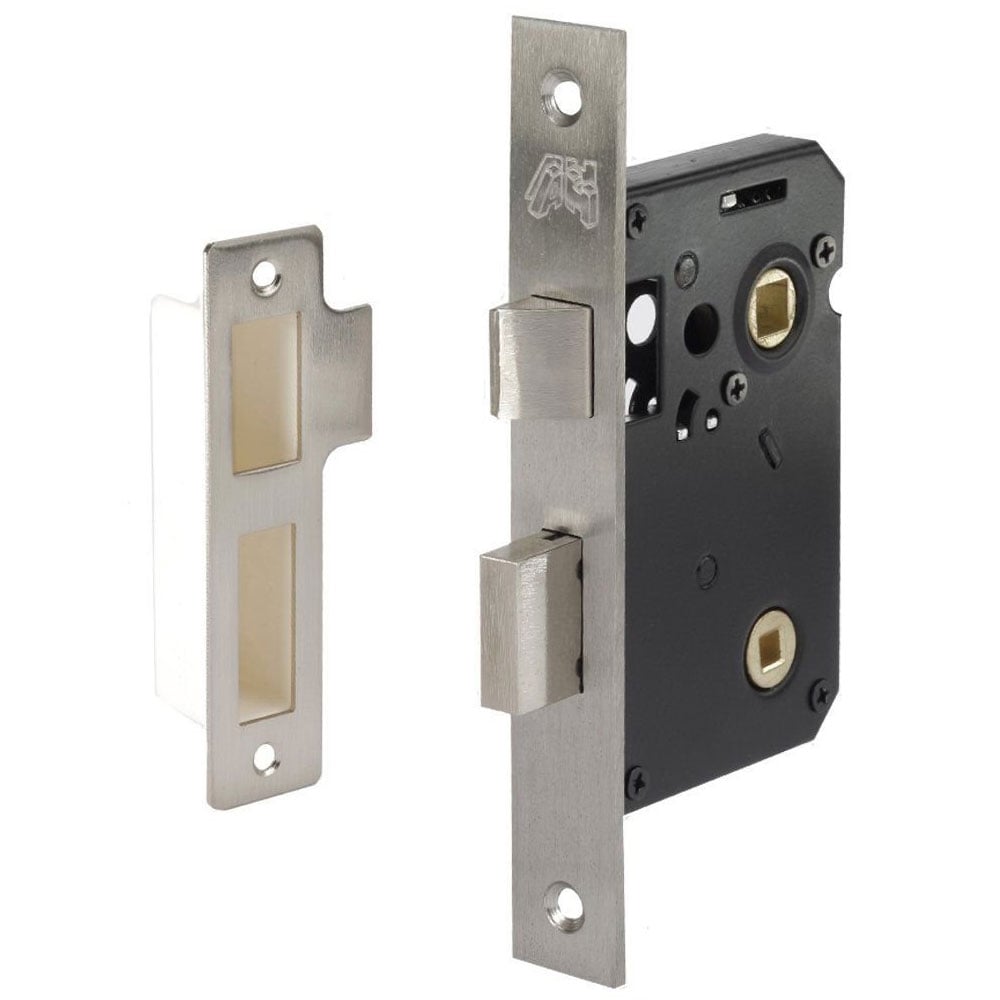

This bathroom mortice lock is suitable for lever rose handles requiring a bolt through fixing, and is available in satin stainless steel

  • Suitable for all types of lever on rose furniture requiring bolt through fixings

  • Soft Spring Action

  • This bathroom lock is fully adjustable - the latch bolt is reversible and can be turned 180 degrees for left or right hand opening configurations

  • Supplied with an adjustable flat and flush strike plate which can be fully rotated to match lock


MATERIAL: Stainless Steel

TYPE: Bathroom privacy lock

STYLE: Mortice fixture

FIXINGS: All fixings included

ADDITIONAL FEATURES: Matching strike plates and dust back box included, ideal for thumb turn handles

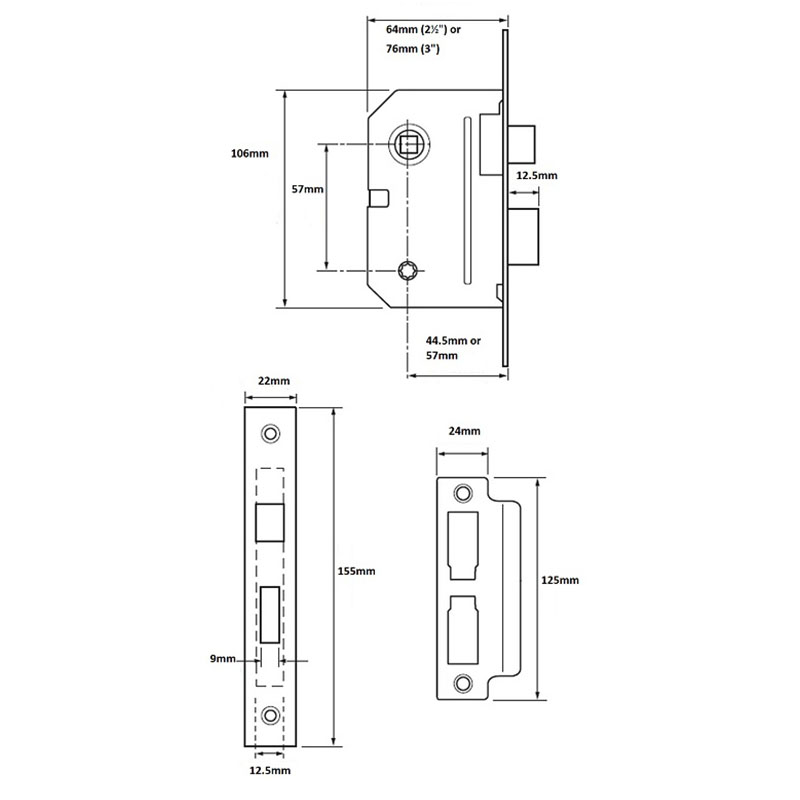

Dimensions


OVERALL CASE LENGTH/DEPTH: 76mm

BACKSET MEASUREMENT: 57mm

STRIKE PLATE HOLE CENTRE TO CENTRE: 85mm

FACE PLATE HOLE CENTRE TO CENTRE: 130mm

SPINDLE HOLE DIAMETER (FOR HANDLE): 8mm

SPINDLE HOLE DIAMETER (FOR THUMB TURN): 5mm

What size lock is suitable for my door?

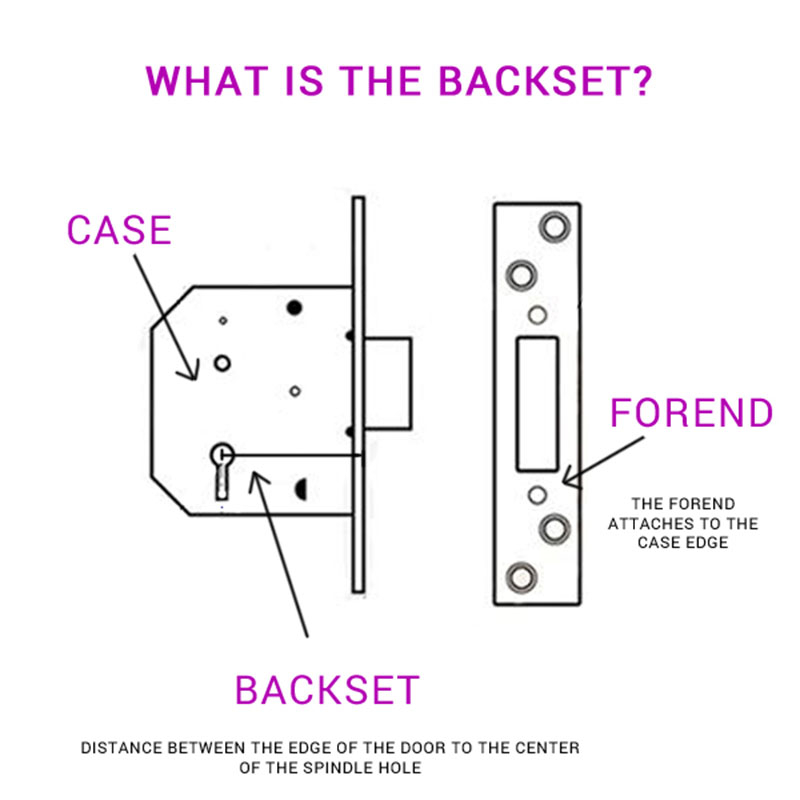

You will need to remove your old lock and measure it to obtain your measurement requirements.  Please see the diagram in the images which explains how to measure your lock to distinguish if you will need a 64mm (2'') or 76mm (3'').

Product Documents

Details

Size 3" (76mm) Finish Satin Stainless Steel
