MATERIAL: Brass

TYPE: Bathroom lock and sliding door kit

STYLE: Modern and flush design

FINISH: Available in a polished chrome, polished brass, satin chrome and satin nickel

FIXINGS: All required fixings included

Description

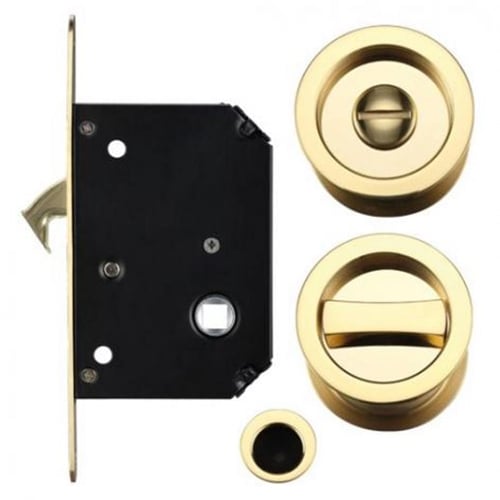

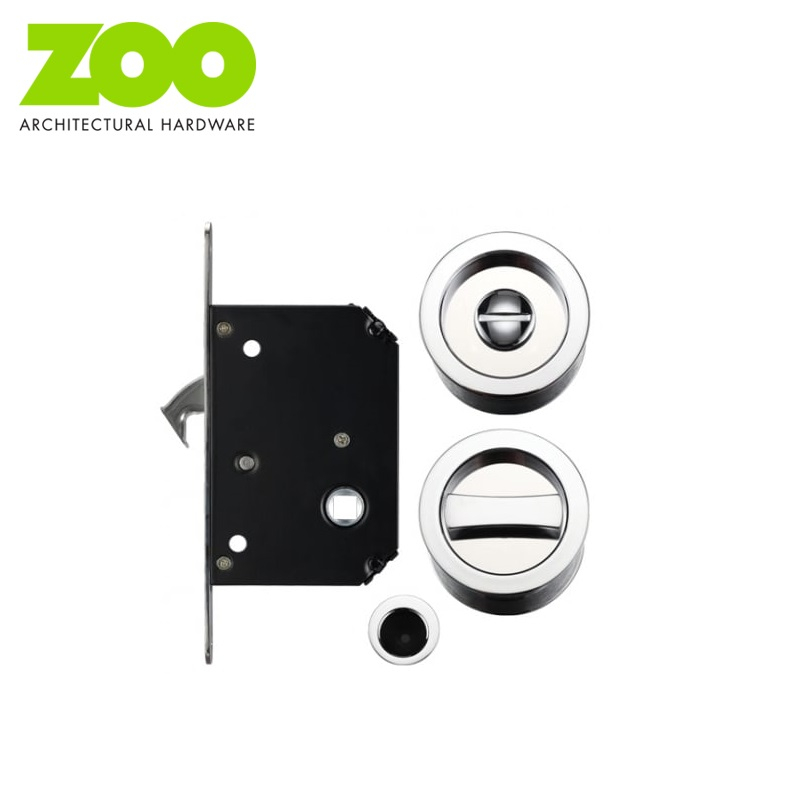

COMPLETE KIT INCLUDES:

1 x 70mm deep sliding door bathroom hook lock
1 x Flush fitting snib thumb turn
1 x Flush fitting emergency release
1 x Edge pull handle to help pull the sliding door out of the wall cavity
1 x Strike plate
1 x 8mm spindle shim
1 x Grub screw
1 x Hex key
4 x 20mm matching wood screws

• Locking handle kit for sliding bathroom doors


• Suitable for 40mm - 44mm thick doors only


• Ideal for pocket doors systems and kits


• Simple to install and fix


• 8mm spindle shim supplied - can convert the spindle to 8mm for use with bigger spindle holes


• Designed especially for sliding bathroom doors however can also be used on many more sliding door applications


• Turn & release mechanism fully built into the flush pull handles


• Choose between a polished chrome, polished brass, satin chrome and satin nickel finish


• Round shape furniture


• Modern design


• The flush pulls are to be glued or bonded into the door with knurled fixing surfaces


• The release part of the lock is fitted on the outside of the sliding door and allows the door to be unlocked in an emergency by turning the slot.


• 12 month manufacture defect guarantee

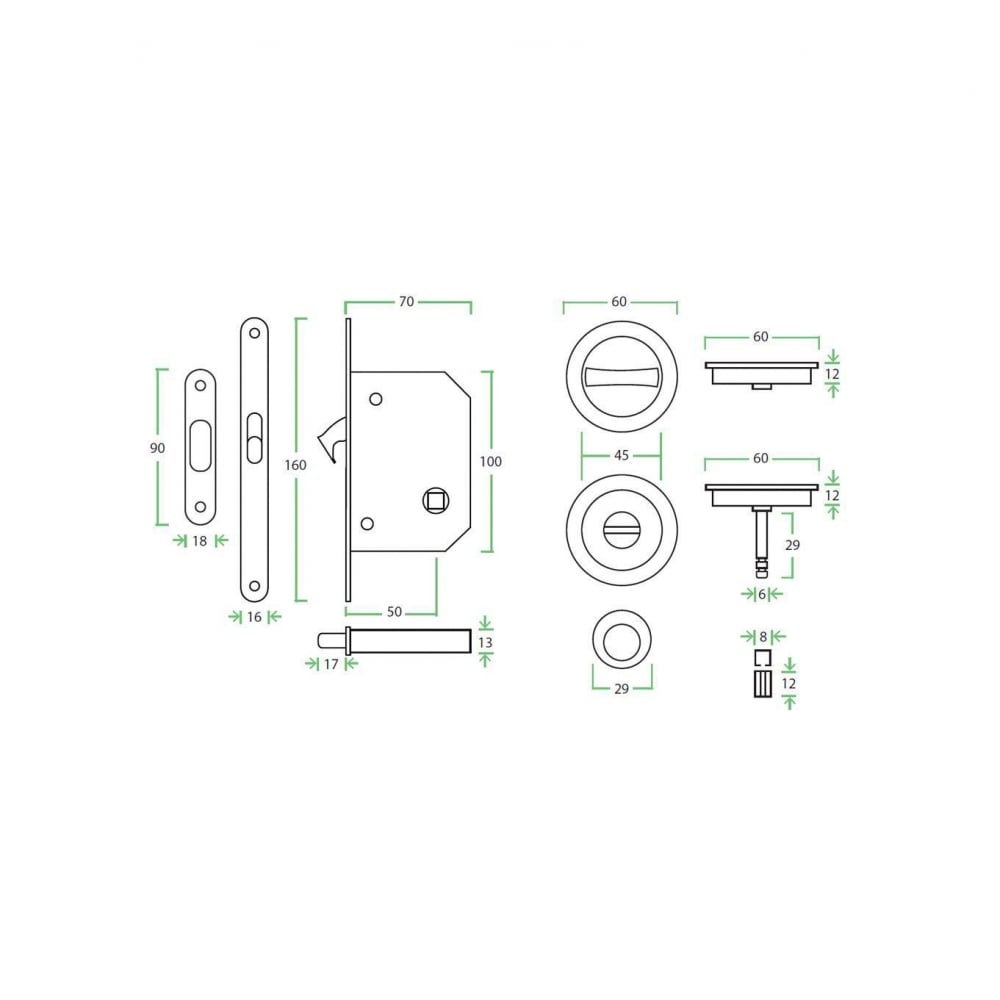

Dimensions

Sash lock width: 70mm

Sash lock height: 100mm

Sash lock thickness: 16mm

Spindle hole centre to front of sash lock: 50mm

Finger pull handle diameter: 29mm

Finger pull handle depth: 20mm

Turn and release handle diameter: 60mm

Turn and release depth: 12mm

Strike plate height: 90mm

Strike plate width: 18mm

Strike plate hole to hole centre: 70mm

Built on spindle length: 25mm

Built on spindle diameter: 6mm
