Cable Window and Door Restrictor

Name: Cable Window and Door Restrictor
Brand: ERA
SKU: E/723

Code:

E/723

Brand:

ERA

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: Zinc alloy castingsTYPE: Window & Door RestrictorSTYLE: Cabled LockFINISH: Polished chrome, brown, polished brass and whiteFIXINGS: 5 x 4.5 x 45mm Gimlet Point screwsADDITIONAL INFORMATION: Includes 2 keys, cover caps, 5 x 4.5 x 45mm...Read More

View full product details

View questions about this product

Create a wishlist

Mr Clive Woolley

Description

MATERIAL: Zinc alloy castings

TYPE: Window & Door Restrictor

STYLE: Cabled Lock

FINISH: Polished chrome, brown, polished brass and white

FIXINGS: 5 x 4.5 x 45mm Gimlet Point screws

ADDITIONAL INFORMATION: Includes 2 keys, cover caps, 5 x 4.5 x 45mm Gimlet Point screws and instructions

Description

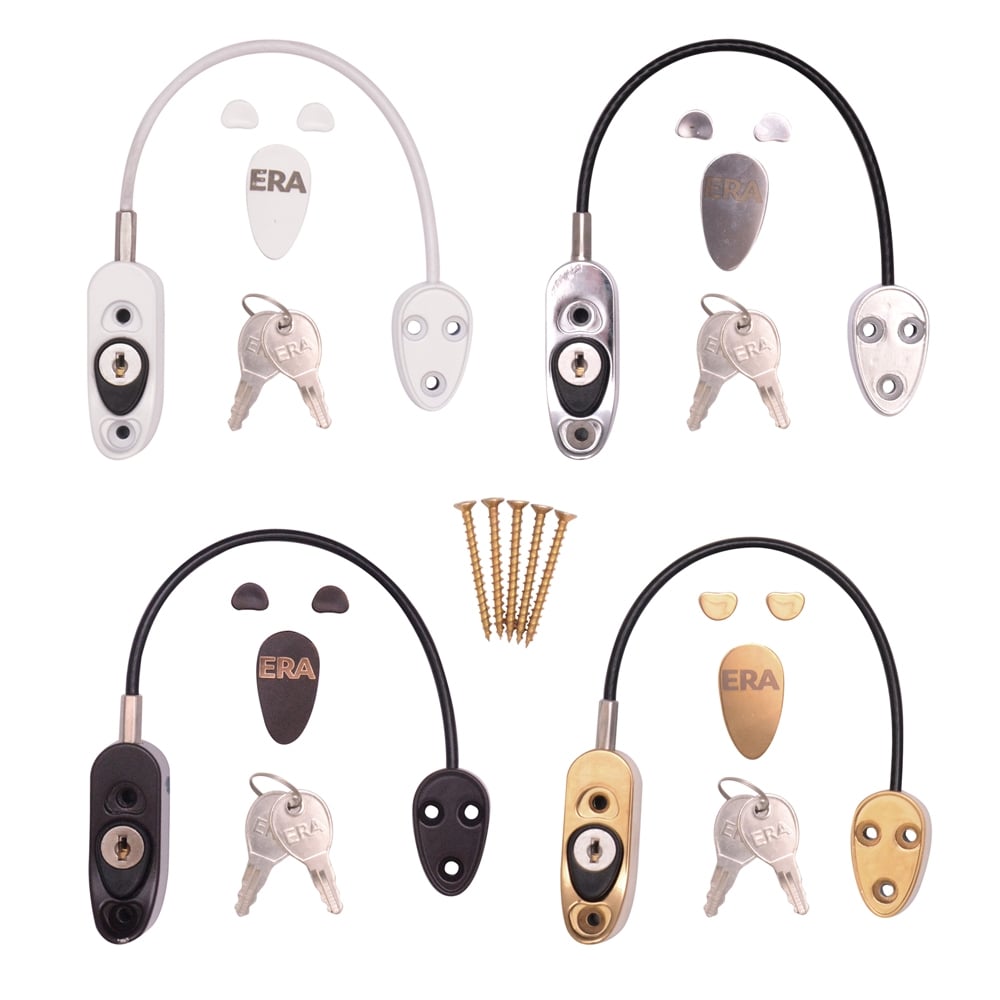

Window and Door Cable Restrictors

The Flexible Cable Window Restrictor is the perfect solution to provide a restricted opening of windows and doors and is the ideal choice to solve issues of security and health and safety.

High quality cable restrictor for extra security and safety
Suited to homes with families and is compliant child resistant locking device for windows and balcony doors in accordance with BS EN 16281: 2013
Classified in accordance with BS EN: 13126-1: 2011 Grade 3 Impact Resistance, for building hardware restricted devices on windows and doors
Suitable for domestic and commercial applications and for PVCu, Timber and Aluminium windows and doors
Ergonomically developed for easy operation, push the button and simply insert the cable into lock body and turn the key. To unlock simply insert the key and remove, press the button to release and release the cable
Aesthetically designed push to open cable lock with cut key locking for security
Suitable for domestic, residential and commercial applications
Tested to 50,000 cycles
Coatings - White and Brown powder paint; Polished Chrome and Polished Gold electroplated
Cable - Black Nylon for Brown, Polished Chrome and Polished Gold finishes. White Nylon for the White finish
Includes 2 keys, cover caps, 5 x 4.5 x 45mm Gimlet Point screws and instructions
Reinforced cable wire
Steel key lock
Easy to install
10 year mechanical guarantee

Dimensions

Cable length: 170mm

Lock backplate length: 60mm

Lock backplate width: 21mm

Lock backplate depth: 30mm

Lock backplate hole to hole fixing: 36mm

Attachment bracket length: 40mm

Attachment bracket width: 23mm

Attachment bracket depth: 10mm

Attachment bracket hole to hole fixing: 37mm

Technical information
Corrosion resistance
Meets the requirements of BS EN 1670:2007 Grade 4 (240 hours

Operations
Tested in excess of 50,000 cycles

Performance
Meets the requirements of BS EN 13126-1:2011 Grade 3 Impact Resistance. Devices that restrict the opening of windows and door height windows. BS EN 16281:2013. Consumer fitted child resistant locking devices for windows and balcony doors.

Maintenance
All moving parts should be lightly lubricated using a light non-acidic mineral oil (e.g. “3 in 1”) twice per year and the surface cleaned with a soft damp cloth. The product may need to be adjusted and fixings tightened to ensure a satisfactory operation.

Specification

Details

Finish Brown
Polished Chrome
Polished Gold
White
