Chubb Sash Lock Replacement 5 Lever Mortise Roller British Standard

Code:
Z/ZBSCS

This item is out of stock and not available to purchase.

This highly secure Chubb Sash Lock Replacement 5 Lever Mortise Roller from Zoo Hardware has been built with a solid brass deadbolt and solid steel casting for ultimate durability. Available in multiple finishes, these have been fully tested to comply with British Standard EN 3...Read More

Create a wishlist

"quality product"

Neil Breeden

Description

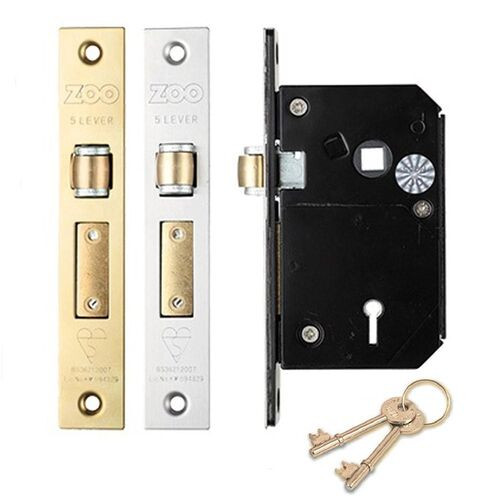

This highly secure Chubb Sash Lock Replacement 5 Lever Mortise Roller from Zoo Hardware has been built with a solid brass deadbolt and solid steel casting for ultimate durability. Available in multiple finishes, these have been fully tested to comply with British Standard EN 3621:2007 and are also fire-rated and suitable for both FD30, and FD60 rated fire doors.

Comes supplied with a set of two brass keys, faceplates, door keep and fixing screws. Suitable for domestic, residential and commercial use.

Features & Benefits

  • Fully tested to comply with British Standard EN 3621:2007
  • Suitable for domestic, residential and commercial use
  • Manufactured with a solid brass deadbolt and strong steel casing
  • Satin Stainless and Anti-Tarnish Brass finished plates

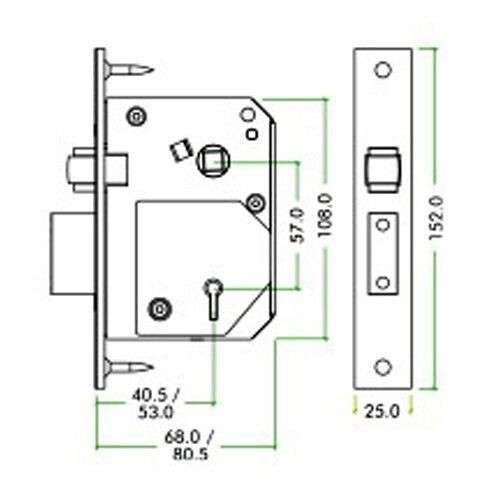

Product Specification

67mm Sash Lock

Backset: 40.5mm

Overall Case Width:
67mm

Overall Case Height:
108mm

Distance Between Key Hole and Spindle Hole:
57mm

Faceplate Height:
152mm

Faceplate Width:
25mm

80mm Sash Lock

Backset: 53mm

Overall Case Width:
80mm

Overall Case Height:
108mm

Distance Between Key Hole and Spindle Hole:
57mm

Faceplate Height:
152mm

Faceplate Width:
25mm

Dimensions

Size 67mm
80mm

Details

Finish Brass Anti Tarnish Finish
Satin Stainless Steel
