Eclipse Ball Bearing Hinge Grade 11 FD60 Fire Rated - Pack of 2

Product Code:
ECLIPSE-GRADE-11-14
Brand:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

from
£4.97 Incl. VAT
Oops! Please select from the options

Product Description

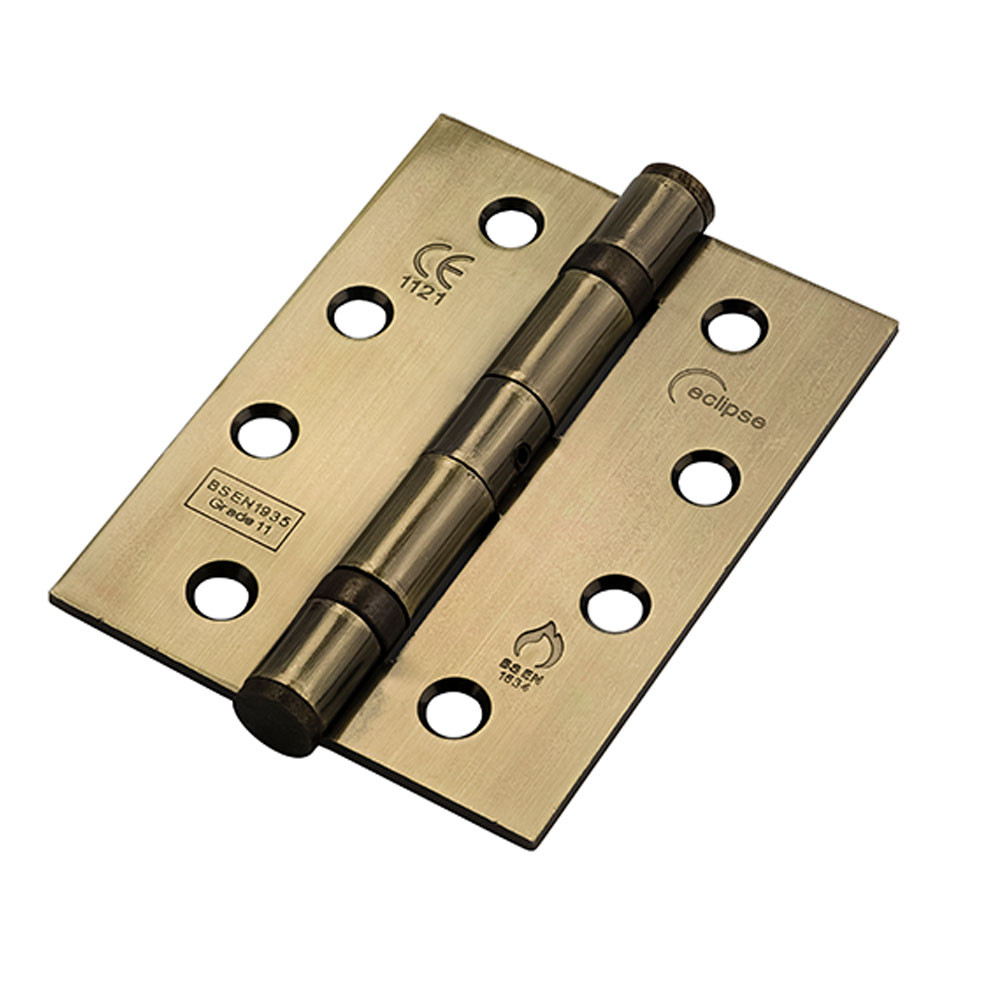

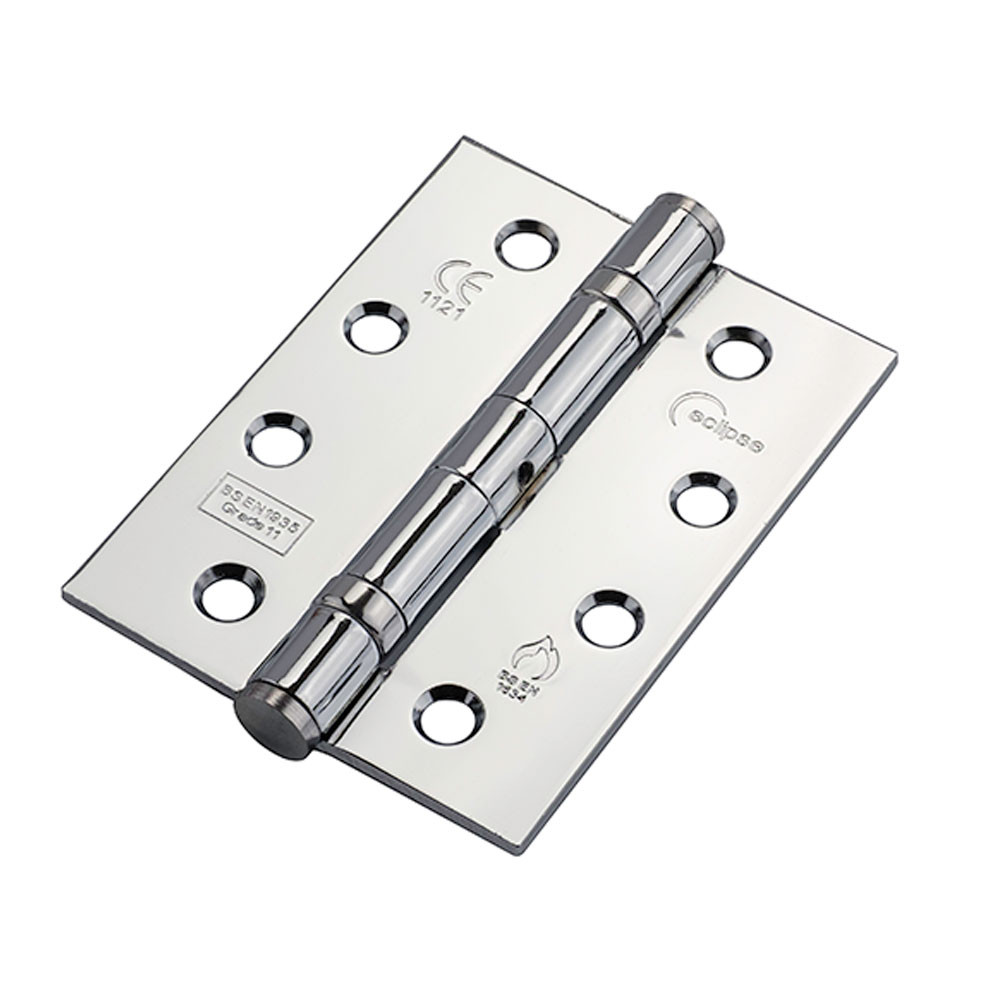

These CE marked Frisco Eclipse Grade 11 FD60 Fire Rated Ball Bearing Hinges (76mm x 51mm) are supplied in packs of 2 and are the ideal hinges for hanging internal residential fire doors that weigh up to 80kg. The satin steel finish of these hinges makes them highly versatile and able to complement any interior.

Its CE mark shows this grade 11 hinge has met BSEN 1935 and BSEN 1634 British standards and has surpassed the health, safety and environmental protection requirements.

What is an FD60 rating?

FD60 Fire Doors and their accessories offer at least 60 minutes of protection against fires when installed correctly to the manufacturer's guidelines.

Please note, fire door accessories are a safety product and therefore must be installed using the correct hardware and accessories. Because all fire doors & fire door hardware is manufactured differently, please follow the individual instructions that come with each door.

What does Grade 11 mean?

A grade 11 ball bearing hinge can hold a maximum of 80kg. The hinge has been CE marked and is fire door rated. This means this hinge can be used with a fire door, and the door will remain fire-resistant if you have installed and maintained the door by fire regulations. The grade 11 hinge is suitable for use on doors in buildings with a high frequency of service in public areas with a high possibility of accidents or misuses, such as public buildings, offices, or schools. It is recommended that three hinges are used as this creates more durability, prevents warping and twisting.

What are ball bearing door hinges?

Door hinges are crucial pieces of door hardware which are used to both hang and open/close a door. The ball bearing style of door hinge is a durable option which consists of steel ball bearings positioned between the hinge knuckles. Whilst standard hinges can often deteriorate over time resulting in loud squeaky noises, the steel bearings within the ball bearing hinge ensures a much quieter and smoother motion when opening and closing the door. Most internal doors will require two hinges to function properly whereas doors with added security functions will typically require three or more to help prevent forced entry. When installing fire doors, fire rated hinges will need to be used and customers are advised to check that their hinges meet the required fire safety standards. Available in a variety of finishes, there are plenty of choices to suit your needs.

Features & Benefits

  • FD60 rated
  • Grade 11
  • Meets BSEN 1935 & BSEN 1634
  • CE Marked
  • Pack of 2
  • Easily adaptable finish
  • Ideal for residential hinges
  • Suitable for doors up to 80kg

Product Documents

There are no product documents to show.

Details

Fire Rated Yes Product Type Hinges Supplier Hardware Finish & Colour Electro Brass Plated
Antique Bronze Plated
Black Stainless Steel
Satin Chrome Plated
Polished Chrome Plated
Colour Group Silver
Gold / Brass
Black
Bronze
Finish Group Antique
Polished
Matt
Satin
Use Location Internal Fire Rating FD60
