• Fire test - BS476 part 22 & BS EN1634
• Fire Rating - FD30/60
• CE Mark - Yes
• Available in a satin or polished stainless steel finish

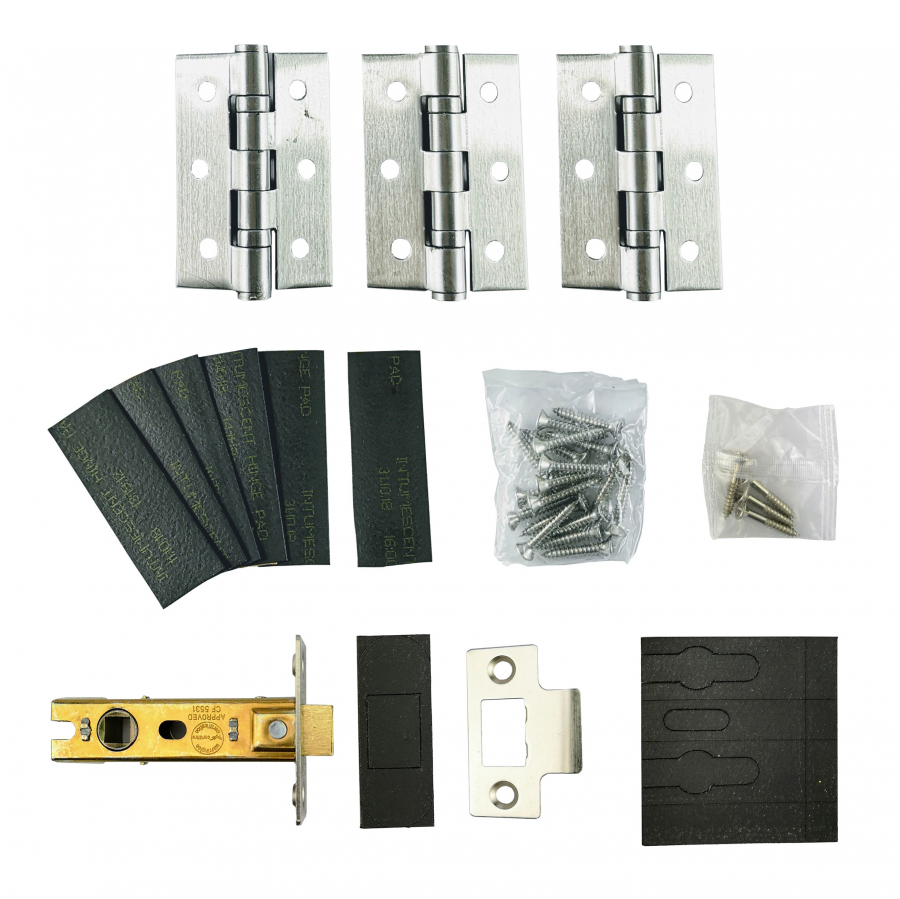

Kit Contains:

3 x 102 x 76 x 3mm Grade 13 Ball Bearing Hinges
6 x 100 x 31mm Intumescent Hinge Pads
1 x 76mm Heavy Duty Tubular Mortice Latch
1 x 75 x 24mm Intumescent kit

PLEASE NOTE: Many fire rated ironmongery products require intumescent to be fitted AS STANDARD (to validate the Certifire certification). Please check for details.

Dimensions

Hinges: 102 x 76 x 3mm
Hinge Pads: 100 x 31 x 0.8mm
Tubular latch: 76mm
Intumescent kit: 75 x 24mm

Important Legal Information

It is a legal requirement for hardware fitted to fire resisting doors to be CE marked. This ensures, in the case of any legal claim, that the best quality hardware has been fitted.

When the hinges shown as being CE Marked are included in a fire resisting test they are fitted to the door and frame with intumescent pads under each leaf. You should fit these intumescent pads under any CE marked hinges to comply with the marking requirements. Failure to comply and fit intumescent pads in these circumstances will negate the installation.

Fitting: fit one pad under each hinge leaf for FD30 and two under each leaf for FD60. Certifire is a Third-Party Certification scheme encompassing compliance with British or European Standards, Fire test performance and Quality Assurance to ensure that the product certificated provides an acceptably high quality of performance.
