Fire Essentials Grade 7 Stainless Steel Fire Rated Hinge 3 Pack and 64mm Tubular Latch Set with Intumescent Pads

Code:
H7LA1

When you're hanging a fire door, you'll need the right accessories to finish the job. Good-quality, fire resistant hinges and a latch are a must, and this kit has everything you need. It comes with one heavy duty tubular mortice latch that allows you to shut the door securely.... Read More

Create a wishlist

"Great service great communication…"

Anthony White

Description

When you're hanging a fire door, you'll need the right accessories to finish the job. Good-quality, fire resistant hinges and a latch are a must, and this kit has everything you need. It comes with one heavy duty tubular mortice latch that allows you to shut the door securely. Plus there's three Grade 7 ball bearing hinges to take the weight of your fire door (up to 40kg) and ensure a smooth action every time you open and close it.

And because metal door accessories can be a real weak point in timber doors in the event of a fire, the kit also comes with those all important intumescent pads. These expand when heated, maintaining the integrity of the door. There are six intumescent hinge pads so you can fit one pad under each hinge leaf for FD30 and two under each leaf for FD60.

Features & Benefits: Fire Essentials Grade 7 Stainless Steel Fire Rated Hinge 3 Pack and 64mm Tubular Latch Set with Intumescent Pads

  • Three Grade 7 ball bearing hinges (76 x 51 x 2mm)
  • Six intumescent hinge pads (75 x 25mm)
  • One heavy duty tubular mortice latch (66mm)
  • One intumescent kit (75 x 24mm)
  • BS476 part 22 & BS EN1634
  • Fire rated FD30 and FD60
  • CE Marked

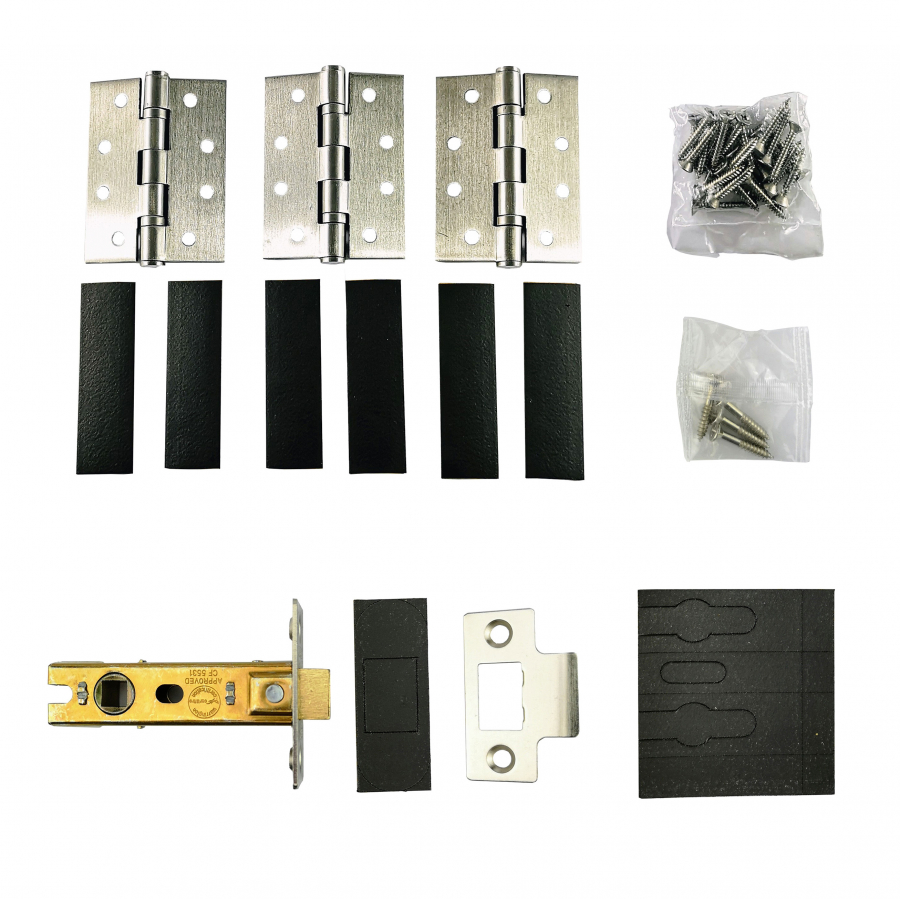

Kit Contents

  • 3 x 76mm x 51mm x 2mm Grade 7 Ball Bearing Hinges
  • 6 x 75mm x 25mm Intumescent Hinge Pads
  • 1 x 64mm Heavy Duty Tubular Mortice Latch
  • 1 x 75mm x 24mm Intumescent kit

Product Specification

  • Hinges: 76 x 51 x 2mm
  • Hinge Pads: 75 x 25 x 0.8mm
  • Tubular latch: 64mm or 76mm
  • Intumescent Kit: 75 x 24mm
  • Finish: Satin or Polished Stainless Steel

Please note:

  • It is a legal requirement for hardware fitted to fire resisting doors to be CE marked. This ensures, in the case of any legal claim, that the best quality hardware has been fitted. When the hinges shown as being CE Marked are included in a fire resisting test they are fitted to the door and frame with intumescent pads under each leaf. You should fit these intumescent pads under any CE marked hinges to comply with the marking requirements. Failure to comply and fit intumescent pads in these circumstances will negate the installation.
  • To validate the Certifire certification, many fire-rated ironmongery products will require intumescent strips to be fitted as standard. Certifire is a Third-Party Certification scheme encompassing compliance with British or European Standards, Fire test performance and Quality Assurance to ensure that the product certificated provides an acceptably high quality of performance. Certifire is a Third-Party Certification scheme encompassing compliance with British or European Standards, Fire test performance and Quality Assurance to ensure that the product certificated provides an acceptably high quality of performance.

Details

Finish Polished Stainless Steel
Satin Stainless Steel
Type Door Hinges
