Hafele Refrigerator 110 Degree Standard Keyhole Cabinet Hinge - Pre-Mounted Euro Screw (3mm Height)

Product Code:
HF/31250500523
Free UK Delivery
Est. Delivery: 1-2 Working Days
View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlandsand Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£4.07 Incl. VAT
£3.39 Ex. VAT
Oops! Please select from the options
  • 2+
    £3.71 Incl. VAT
    £3.09 Ex. VAT
  • 10+
    £3.35 Incl. VAT
    £2.79 Ex. VAT

Product Description


MATERIAL: Steel (cup) and Zinc Alloy (arm)

TYPE: Concealed cabinet hinge

STYLE: 110 degree kitchen fridge and freezer cabinet unit hinge

FINISH: Nickel Plated

FIXINGS: 3.5 x 15mm countersunk Hospa screws and pre-mounted euro screws or 3mm diameter screws included with mounting plates

Description

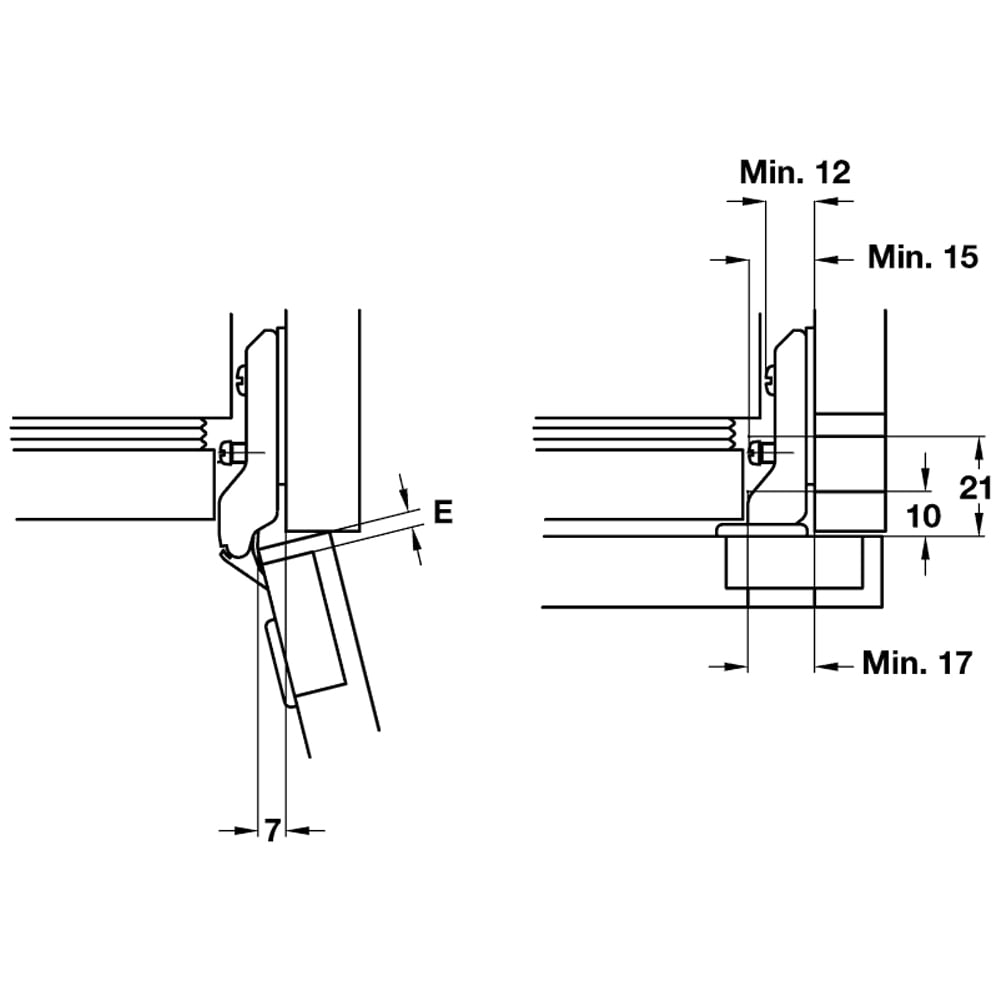

  • Designed for use on kitchen cabinet doors and units with integrated fridge or freezers

  • Allows the fridge door to open with the cabinet door in one action

  • 110 degree opening angle

  • Select your required mounting plate from drop down menu (if needed)

  • Screw fixing cup with Smuso click on arm

  • Keyhole fixing arm

  • Designed for door thicknesses up to 22mm

  • Full overlay mounting steel cup and zinc allow hinge arm

  • Not soft close compatible

  • Opens with handle (not included)

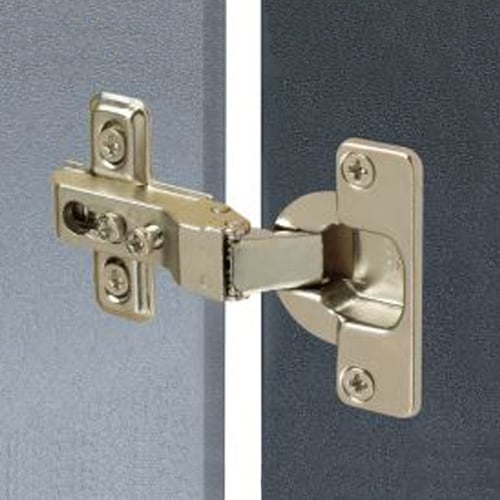

PLEASE NOTE: Picture of this product shows the item with a 0mm mounting plate, please select this option to receive the item exact to the picture

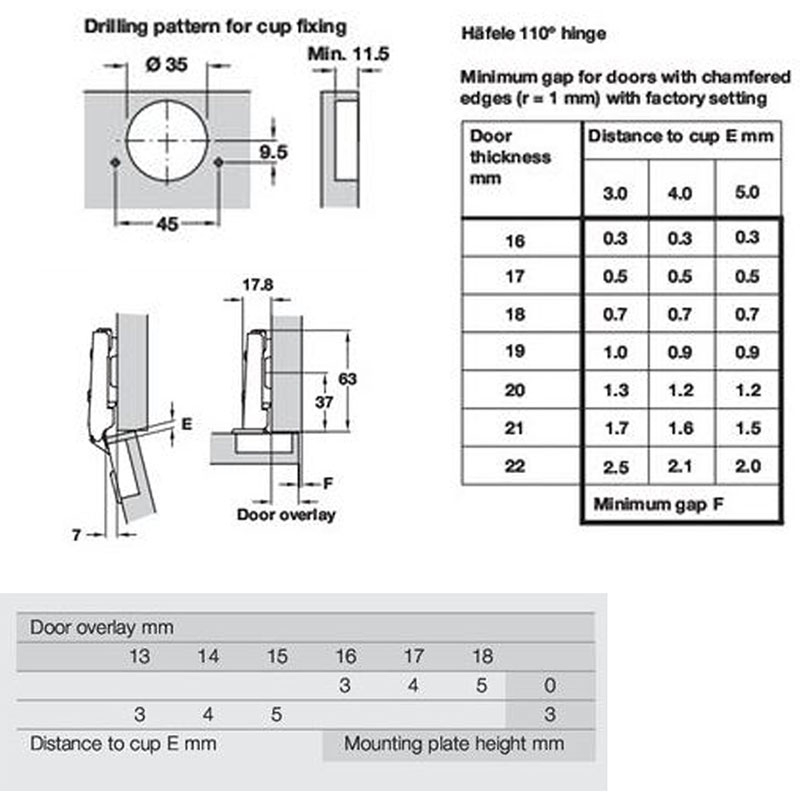

Dimensions


DRILLING DIAMETER FOR HINGE CUP: 35mm

DRILLING DEPTH: 11.5mm

OVERALL LENGTH (INC ARM AND CUP): 95mm

ARM WIDTH: 15mm

ARM OVERALL PROJECTION: 15mm

FIXING CUP HEIGHT:
 57mm

FIXING CUP WIDTH: 20mm

FIXING CUP DEPTH: 13mm

FIXING CUP HOLE CENTRE TO CENTRE: 45mm


0mm PRE-MOUNTED EURO SCREW MOUNTING PLATE MEASUREMENTS

MOUNTING PLATE LENGTH:
42mm

MOUNTING PLATE HEIGHT: 4mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS: 0mm (designed for 18mm carcass thickness)

MOUNTING PLATE WIDTH: 52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT: 32mm


3mm PRE-MOUNTED EURO SCREW MOUNTING PLATE MEASUREMENTS

MOUNTING PLATE LENGTH:
42mm

MOUNTING PLATE HEIGHT: 8mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS: 3mm (designed for 15mm carcass thickness)

MOUNTING PLATE WIDTH: 52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT: 32mm

Product Documents

Details

Mounting Type Pre-Mounted Euro Screw (3mm Height)
