MATERIAL: Steel

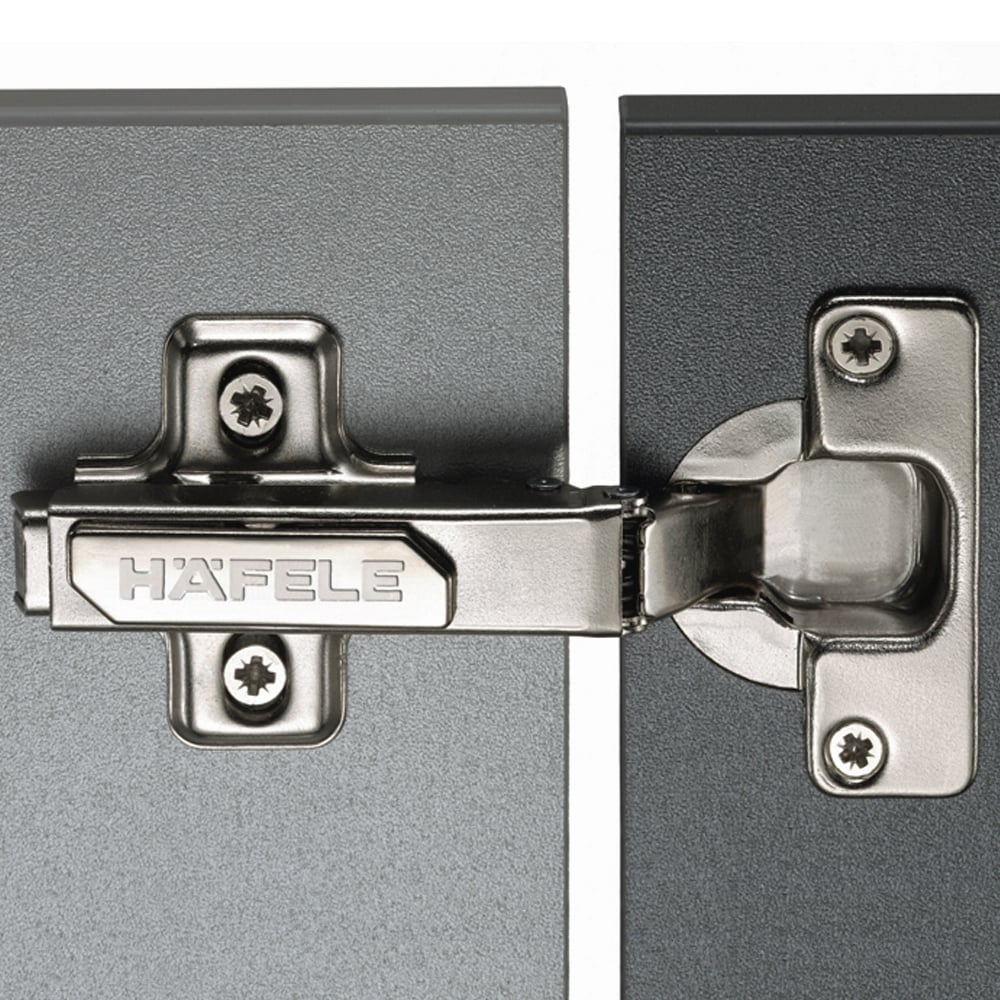

TYPE:Standard concealed cabinet hinge with click on arm
STYLE:Full overlay mounting with 110 degree opening angle
FINISH:Nickel Plated
FIXINGS:3.5mm x 15mm countersunk hospa screws and pre-mounted euro screws with slide on two part mounting plates (if required and selected)
PACK CONTAINS:
1 x Full overlay 110 degree cabinet hinge
1 x Cover cap
2 x Countersunkhospa3.5mm x 15mmscrews
1 x Mounting cruciform plate of your choice - 0mm or 3mm variants (optional)
Please note all our dimensions are subject to a measurement tolerance of +/- 3mm
HINGE MEASUREMENTS
OVERALL LENGTH (INC ARM AND CUP):107mm
FIXING HOLE CENTRE TO CENTRE ON CUP BRACKET:47mm
OVERALL WIDTH OF ARM:14mm
OVERALL DEPTH OF ARM:15mm
DRILLING DIAMETER FOR HINGE CUP:35mm
DRILLING DEPTH:11.5mm
LENGTH OF COVER CAP:43mm
WIDTH OF COVER CAP:11mm
0mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS
MOUNTING PLATE LENGTH:39mm
MOUNTING PLATE HEIGHT:9mm
ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS:0mm (designed for 18mm carcass thickness)
MOUNTING PLATE WIDTH:52mm
MOUNTING PLATE HOLE TO HOLE FIXING POINT:32mm
3mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS
MOUNTING PLATE LENGTH:39mm
MOUNTING PLATE HEIGHT:12mm
ADDITIONAL HEIGHT FOR STANDARD CARCASS:3mm (designed for 15mm carcass thickness)
MOUNTING PLATE WIDTH:52mm
MOUNTING PLATE HOLE TO HOLE FIXING POINT:32mm
Technical Information
Factors such as density of door material and mirror fronts can influence door weight.
