Hafele Standard 110 Degree Concealed Cabinet Hinge (Click On) - Pre-Mounted Euro Screw (3mm Height)

Code:
HF/31220550C553
Free UK Delivery

MATERIAL: Steel TYPE:Standard concealed cabinet hinge with click on arm STYLE:Full overlay mounting with 110 degree opening angle FINISH:Nickel Plated FIXINGS:3.5mm x 15mm countersunk hospa screws and pre-mounted euro screws with slide on two part mounting plates (if requi...Read More

Create a wishlist

"Very quick delivery"

David Puncher

Description

MATERIAL: Steel

TYPE:Standard concealed cabinet hinge with click on arm

STYLE:Full overlay mounting with 110 degree opening angle

FINISH:Nickel Plated

FIXINGS:3.5mm x 15mm countersunk hospa screws and pre-mounted euro screws with slide on two part mounting plates (if required and selected)

Description

PACK CONTAINS:

1 x Full overlay 110 degree cabinet hinge

1 x Cover cap

2 x Countersunkhospa3.5mm x 15mmscrews

1 x Mounting cruciform plate of your choice - 0mm or 3mm variants (optional)

  • These common concealed hinges are versatile and can be used on a wide range of cabinet furniture and kitchen cupboards
  • Full overlay mounting concealed cabinet hinge for single door fixing configurations
  • 110 degree cabinet door opening angle
  • Sprung hinge
  • 35mm diameter screw fixing cup with click on arm
  • Supplied with Hafele branded cover caps to prevent unsightly fixings on your cabinet hinges for a tidy finish
  • Designed for use with cabinet door thicknesses of up to 22mm
  • Click on model is easy to install and is compatible with click on mounting plates only
  • Optional mounting plates can be selected - choose from 0mm or 3mm configuration one part pre-mounted euro screw mounting cruciform plates
  • Select the height configuration for the mounting plate based on your carcass or side panel thickness - 15mm requires a 3mm mounting plate height whilst a 18mm carcass requires a 0mm mounting plate
  • Click on mounting plates heights can be adjusted +/- 2mm
  • Mounting plates are made from nickel plated steel

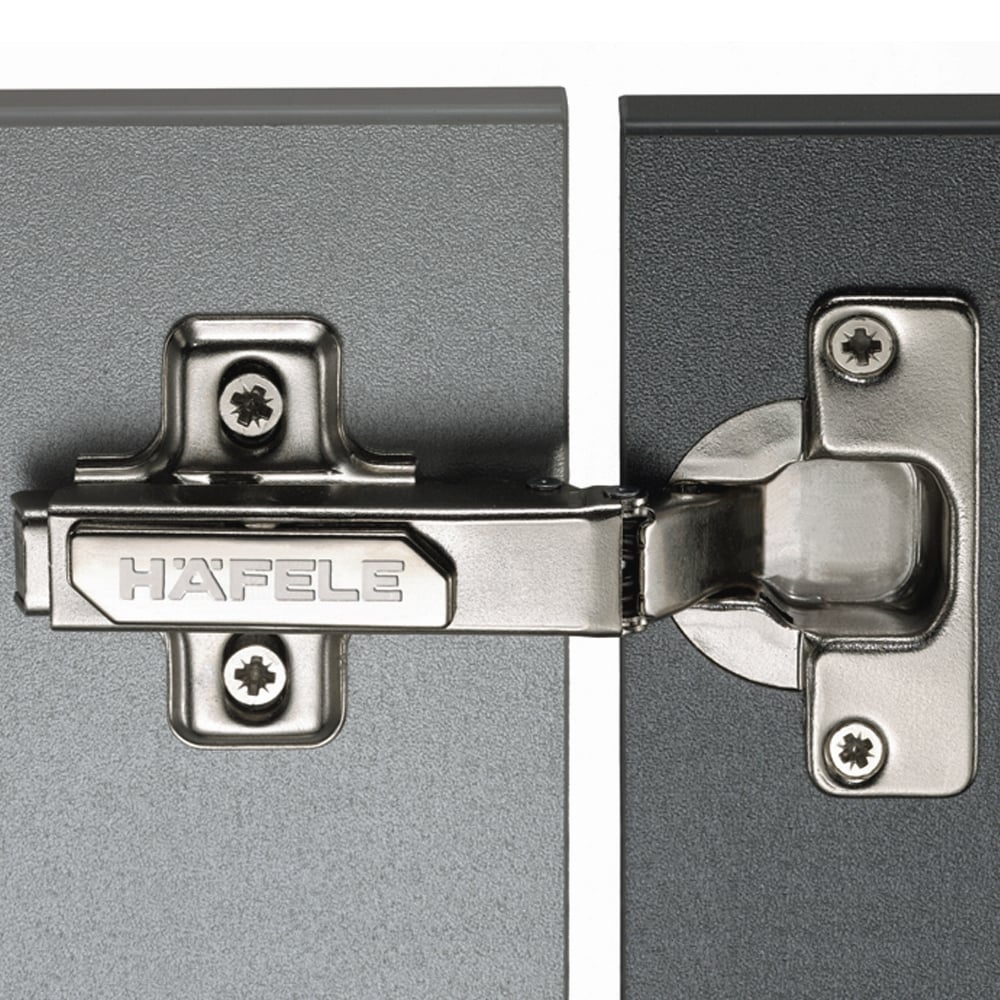

  • PLEASE NOTE:Picture of this product shows the item with a0mm mounting plate, please select this option to receive the item exact to the picture

Dimensions

Please note all our dimensions are subject to a measurement tolerance of +/- 3mm

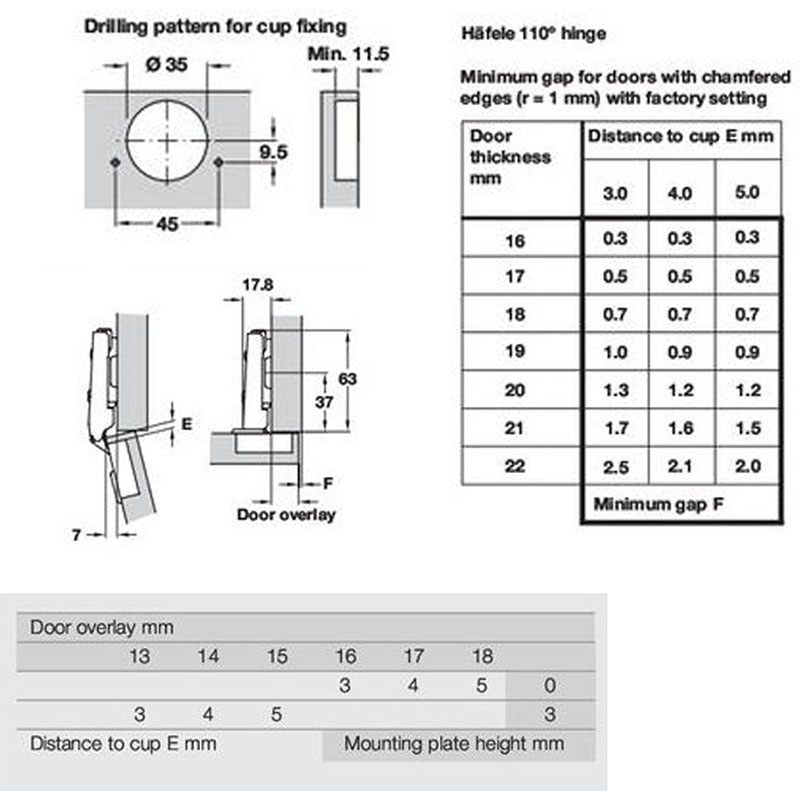

HINGE MEASUREMENTS

OVERALL LENGTH (INC ARM AND CUP):107mm

FIXING HOLE CENTRE TO CENTRE ON CUP BRACKET:47mm

OVERALL WIDTH OF ARM:14mm

OVERALL DEPTH OF ARM:15mm

DRILLING DIAMETER FOR HINGE CUP:35mm

DRILLING DEPTH:11.5mm

LENGTH OF COVER CAP:43mm

WIDTH OF COVER CAP:11mm

0mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS

MOUNTING PLATE LENGTH:39mm

MOUNTING PLATE HEIGHT:9mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS:0mm (designed for 18mm carcass thickness)

MOUNTING PLATE WIDTH:52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT:32mm

3mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS

MOUNTING PLATE LENGTH:39mm

MOUNTING PLATE HEIGHT:12mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS:3mm (designed for 15mm carcass thickness)

MOUNTING PLATE WIDTH:52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT:32mm



Technical Information

Factors such as density of door material and mirror fronts can influence door weight.

Details

Mounting Type Pre-Mounted Euro Screw (3mm Height)
