Excel Hydraulic Fire Rated Door Closer Size 2-4 By Valve Brass Polished Satin Silver

Code:
XH/XL88
Brand:

This item is out of stock and not available to purchase.

This fire rated hydraulic door closer is suitable for 30/60 minute fire doors with a maximum weight of 80kg. Adjustable latch speed Adjustable closing speed Max Door Size 2100mm x 950mm 10 year guarantee BS EN 1154:1996 Tested to BS EN 1634 for use on 30 &...Read More

Create a wishlist

"Door Superstore provided excellent…"

Malcolm

Description

This fire rated hydraulic door closer is suitable for 30/60 minute fire doors with a maximum weight of 80kg.

  • Adjustable latch speed
  • Adjustable closing speed
  • Max Door Size 2100mm x 950mm
  • 10 year guarantee
  • BS EN 1154:1996
  • Tested to BS EN 1634 for use on 30 & 60 minute timber doors
  • Max door weight 80kg
  • High corrosion resistance
  • Tested to 500,000 operating cycles


MATERIAL:
Steel
TYPE: Door Closer
STYLE: Hydraulic

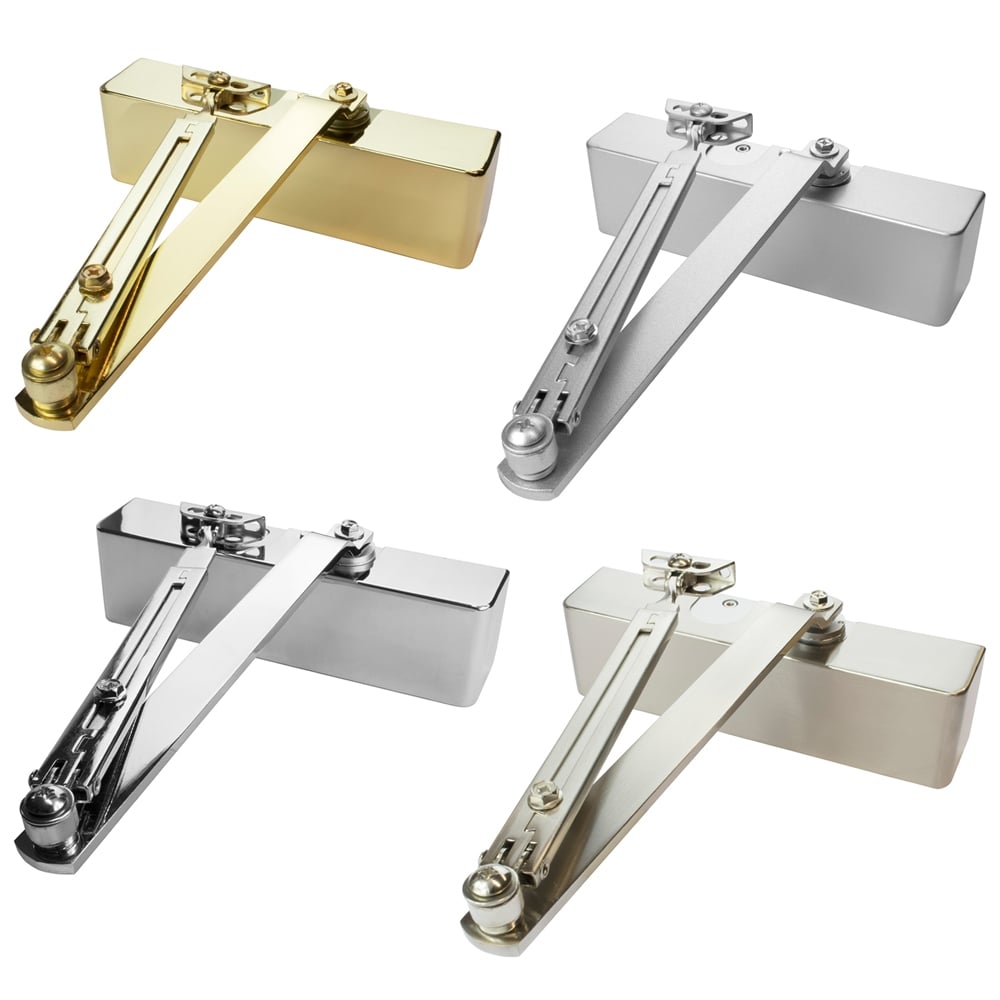

FINISH: Silver / Polished Chrome / Polished Brass / Satin Chrome
FIXINGS: All Required Fixings Included

Installation Guide

Pull Side:

1. Position the door closer with the adjustment vales facing the hinge side of the door. Secure the door closer using the screws provided into the pre-drilled pilot positioning holes.

2. Attach the arm set to the pivot on the door closer body and secure using the washer screw.

3. Tension the door closer arm and adjust the arm length accordingly. Secure the arm set shoe to the door or frame depending on installation, then tighten the arm set nut.

4. Apply the dust cap to the unused pivot.

5. Adjust the closing and latching speeds as required - refer to adjustment instructions.

Push Side:

1. Position the door closer with the adjustment vales facing the hinge side of the door. Secure the door closer using the screws provided into the pre-drilled pilot positioning holes.

2. Remove the shoe from the door closer arm.

3. Attach the armset to the pivot on the door closer body parallel to the door/frame and secure using the washer scr.3ew.

4. Tension the door closer arm and adjust the arm length accordingly. Secure the arm to the figure 66 bracket and tighten the arm set nut.

5. Add the dust cap to the unused pivot.

6. Adjust the closing and latching speeds as required - refer to adjustment instructions.

Valve Adjustment Instruction Guide:

Closing Speed:
Adjust vale by quarter turns anti-clockwise to increase speed or clockwise to reduce speed.

Latching Speed: Adjust vale by quarter turns anti-clockwise to increase speed or clockwise to reduce speed.

CAUTION: Adjusting valves more than 2 full turns anti-clockwise from factory settings will result in oil leakage damaging the door closer. Failure to comply with this will void the warranty.
