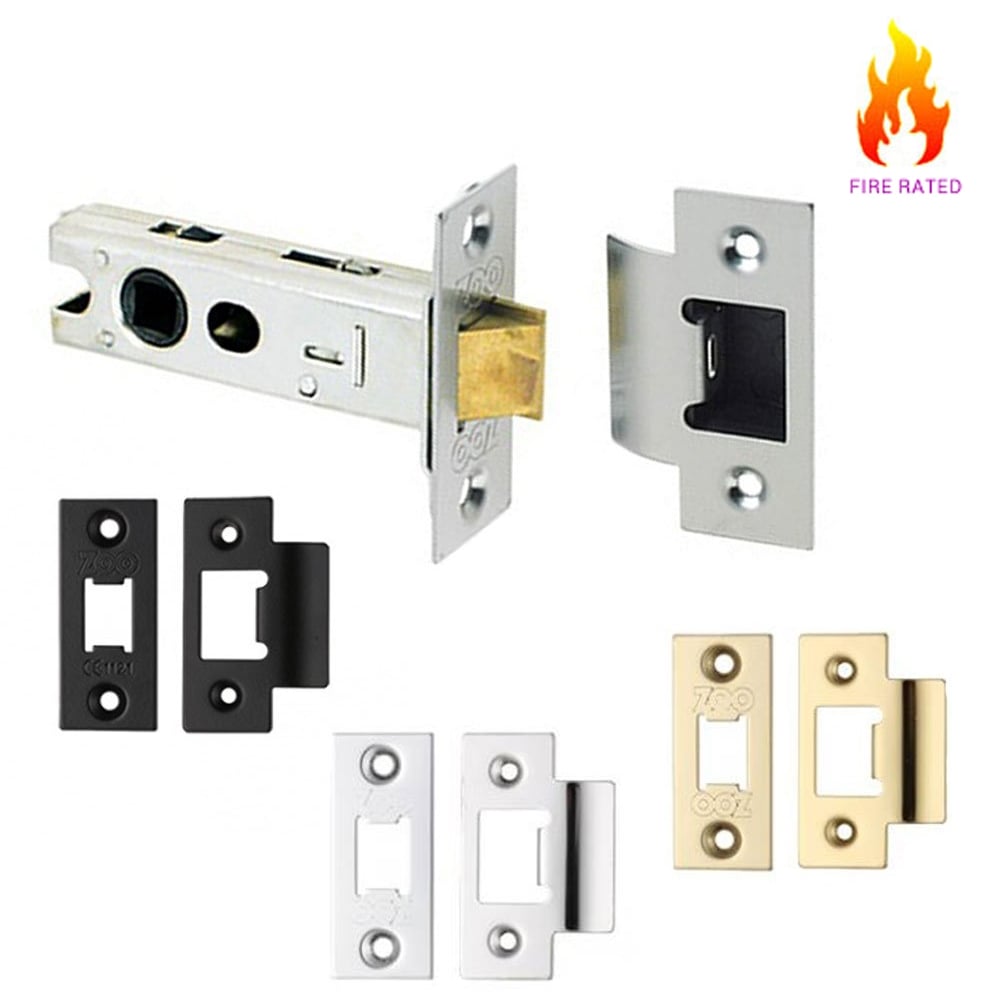

Mortice Door Knob Low Travel Fire Rated Tubular Latch & Spares Accessory Set

Product Code:
Z/Z
This item is not currently available to purchase.
Oops! Please select from the options

Product Description


MATERIAL: Stainless Steel (plates) and Steel (casing)

TYPE: Mortice door knob tubular latch with bolt through fixing

STYLE: Low degree travel (25 or 45 degree)

FINISH: Satin Stainless Steel

FIRE RATING:
Meets FD30 and FD60 fire door standards

FIXINGS:
 25mm wood screws, bolt through fixings, strike plate, face plate and dust socket for tidy installation included





Description


Mortice Tubular Low Degree Travel Latch for Internal Door Knobs (25 or 45 degree)


A high quality, premium mortice door knob tubular latch with a strike and face plates finished in satin stainless steel. Features bolt through fixings and is suitable for interior doors.

  • Heavy duty dual sprung guided bolt through for mortice door knob tubular latch

  • 25 or 45 degree turn of the door knob, for latch to release from strike - this restricts the amount of turn required for the latch to retract back into the door and is ideal for door knob handles

  • Bolt through fixings allows for a secure fastening and stability

  • Latch is reversible by manually turning 180 degrees

  • Supplied with wood screws, face plate, strike plate and dust socket box

  • Anti rattle grooved mortice latch and strike plate, used cut down unwanted door rattling when closed

  • UK standard 8mm diameter spindle hole

  • Suitable for use with fire rated FD30 or FD60 doors

  • CE rating (only on the 25 degree latch)

  • BS EN 1634-1

  • BS EN 12209 Certifire (only on the 25 degree latch)





Spare Accessory Pack for Heavy Duty Tubular Latch


This accessory pack includes:


2 x Set of plates (including a spare strike and face plate) for matching tubular latches. Features a cut out groove in the plate aperture cuts down unwanted rattling when paired with compatible tubular latch.


Pack also contains a dust socket box for tidy installation and all the necessary wood screws, available in three finishes: Powder Coated Black, Polished Stainless Steel and Brass selected to help you match with any door handle or knob.


The spare accessory pack is sold separately from the latches.




Dimensions


3" (76mm) latch 25 degree


Overall length:
76mm

Backset: 56mm

Strike plate length: 63mm

Strike plate largest width: 38mm

Strike plate shortest width: 26mm

Suitable for 8mm thick spindle connector rod



2�?" (64mm) latch 45 degree



Overall case length:
64mm

Backset: 45mm

Strike plate length: 63mm

Strike plate largest width: 38mm

Strike plate shortest width: 26mm

Suitable for 8mm thick spindle connector rod



3" (76mm) latch 45 degree


Overall case length:
76mm

Backset:
 57mm

Strike plate length: 63mm

Strike plate largest width: 38mm

Strike plate shortest width: 26mm

Suitable for 8mm thick spindle connector rod



4" (102mm) latch 45 degree


Overall case length:
102mm

Backset:
 80mm

Strike plate length:
 63mm

Strike plate largest width:
 38mm

Strike plate shortest width:
 26mm

Suitable for 8mm thick spindle connector rod



Accessory pack dimensions:


Strike plate length:
 63mm

Strike plate largest width:
 38mm

Strike plate shortest width: 26mm


What size latch will I need?


You will need to remove your old latch and measure it to obtain your measurement requirements. Please look at the diagram below which explains how to distinguish which size latch will be suitable for your door.

Product Documents

There are no product documents to show.

Details

Type 25 Degree Travel Latch (76mm)
45 Degree Travel Latch (64mm)
45 Degree Travel Latch (76mm)
45 Degree Travel Latch (102mm)
2 x Latch Accessory Set (Black)
2 x Latch Accessory Set (Stainless Steel)
2 x Latch Accessory Set (Brass)
2 x Latch Accessory Set (Nickel)
