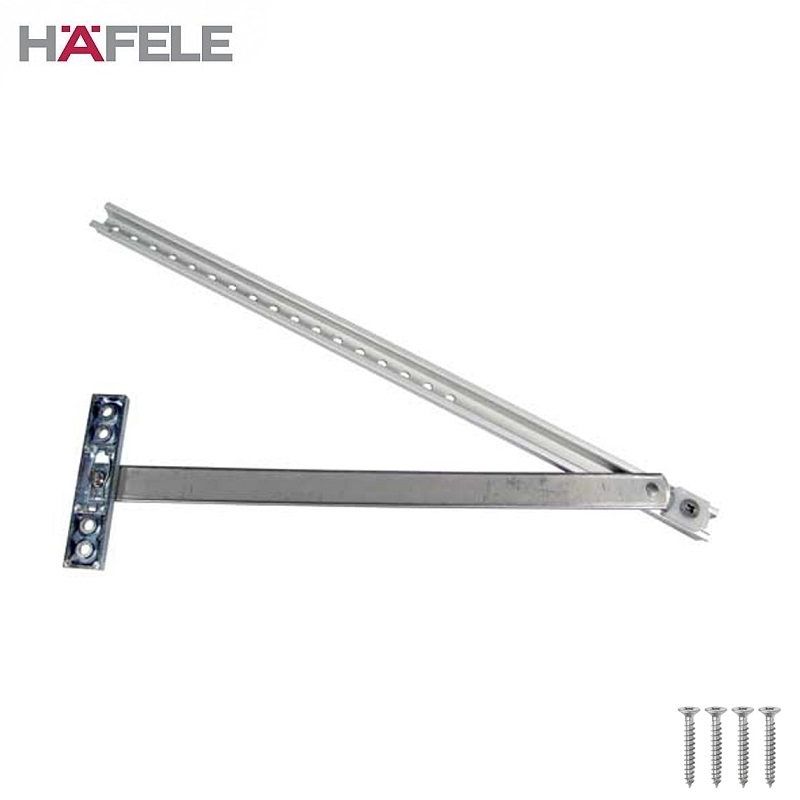

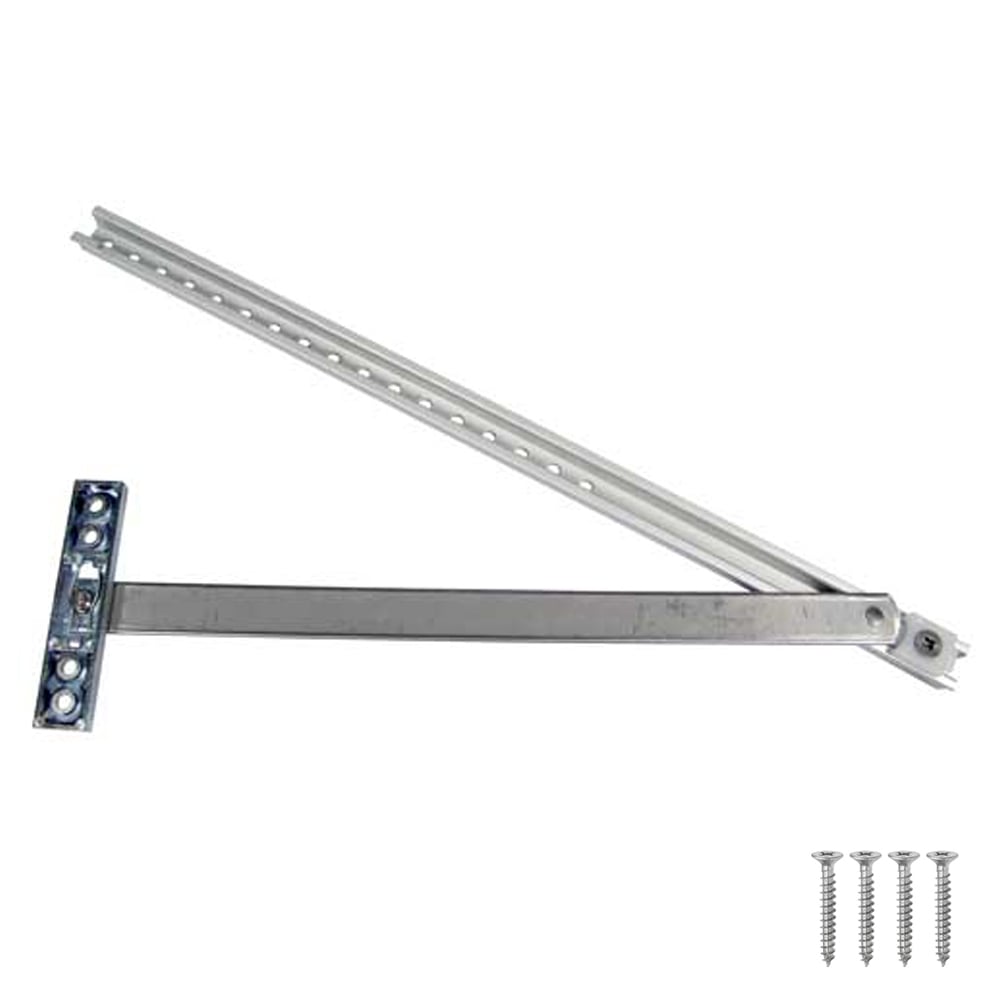

Overhead Euro Groove Door Stop and Holder

Name: Overhead Euro Groove Door Stop and Holder
Brand: Hafele
SKU: HF/93833000
Price: 7.54 GBP
Availability: Discontinued

Code:

HF/93833000

Brand:

Hafele

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: Stainless steel and aluminiumTYPE: Overhead door stopSTYLE: Door hold openFINISH: SilverFIXINGS: 3.5 x 25mm countersunk hospa screws included(ONLY wood screws supplied for timber application)ADDITIONAL FEATURES: Opening angle up to 125 degree Description Th...Read More

View full product details

View questions about this product

Create a wishlist

JadeS

Description

MATERIAL: Stainless steel and aluminium
TYPE: Overhead door stop
STYLE: Door hold open
FINISH: Silver
FIXINGS: 3.5 x 25mm countersunk hospa screws included(ONLY wood screws supplied for timber application)
ADDITIONAL FEATURES: Opening angle up to 125 degree

Description

This overhead door friction stay is ideal for standard doors with a euro groove and is designed to keep a door held in the open position.
They have an opening angle of up to 125 degrees and also have an adjustable stop position and friction
A useful application in commercial settings such as an office or reception area
Easy installation and detachable arm for maintenance
Suitable for timber, aluminium or PVCu doors and frames (ONLY wood screws supplied for timber application)
All fixings required are included
Made from strong stainless steel and aluminiumwith a high quality silver finish
Timber doors require routing

The track simply recesses into the top edge of the door leaving only the arm showing when the door is open. The stopped position is adjustable on site to gain maximum opening angle yet stop the door before it fouls obstructions such as projecting sills,opening casements or down pipes.The friction provided by operating the device can be adjusted helping control larger doors, doors opening in windy / exposed positions.

What is a door holder and why use a door stop?

This is a device to enable the closer to be held in the open position. These closers must not be used on fire doors.

Always use a door stop, where practicle, whether a closer has a backcheck or not. This may take the form of a floor or wall/skirting mounted version or built-in as found with guide rail closers. The positioning of the stop is also important, and must be at least 2/3rds the door width away from the hinge, otherwise the stop acts as a fulcrum and could damage the door, the frame and hinges. Where a door closer had maximum angle of opening stated the stop must be positioned at that point, otherwise damage to the closer will occur.

Note: Please ensure that the correct closing device is the appropriate one for the job it is intended to do and that it is the correct size.

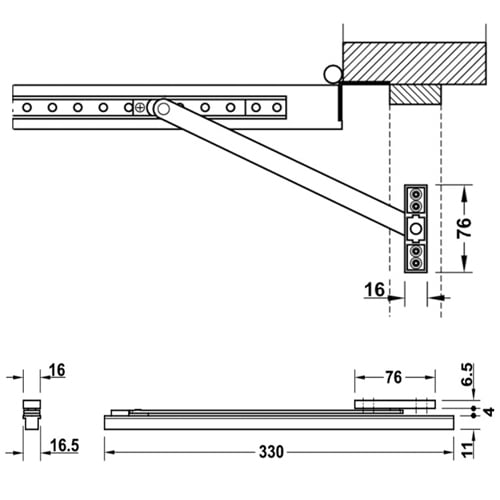

Dimensions

LENGTH: 330mm
OVERALL DEPTH: 21.5mm
BRACKET LENGTH: 76mm
BRACKET WIDTH: 6.5mm
BRACKET PIVOT HEIGHT: 7mm
BRACKET PIVOT WIDEST POINT: 16.5mm

Specification

Details

Finish Silver
