Single Pocket Door Sliding System Kit (doors sold separately)

MATERIAL:AluminiumTrack and Header Assembly with Galvanised Steel framework

TYPE:Pocket Door Sliding System

STYLE:Modern

FIXINGS:All fixings, brackets and cavity wall uprights required to create the wall cavity and install the sliding door are included

Description

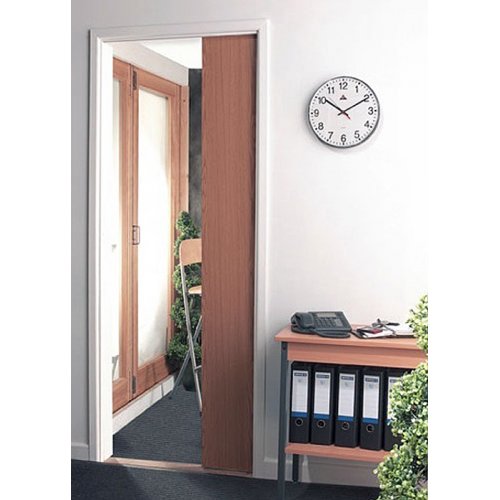

This easy to fit system is ideal for rooms where space is at a premium such as toilets, bathrooms and kitchens.

• Sliding doors offer individuality to a room design where you wish to save space


• Unique single pocket door system designed for use with one door


• Cavity wall system designed for wood doors up to 60kg


• The sliding room dividers where the door slides into a wall cavity


• Saves vital room space as the door does not require a swing space to open


• Complete with pre-assembled aluminium track and header assembly


• Available for doors up to 930mm wide and 2315mm high (choose size kit size from drop down selection)


• Comes complete with the Husky 100 sliding system along with all fixings, brackets and cavity wall uprights required to create the wall cavity and install the sliding door


• Door can be completely concealed within the cavity when not in use


• Can be combined with a simultaneous action unit (sold separately)


• The soft stop kit (sold separately) is an optional extra which allows the doors to gently slide into their final position


• Matching flush pull handles are available (sold separately)


• We always recommend that doors must be pre-finished prior to installation with pocket door system


• Final adjustments to height must be done prior to fixing trim and architraves



Click here for detailed manufacturer fitting instructions

Click here for pocket door datasheet from manufacturer

Click here for Husky 100 sliding system datasheet

Dimensions

All our sizes are width x height and to be used with one door only

PDK3 - 762mm x 1981mm

PDK4 - 836mm x 1981mm

PDK5 - 762mm x 2040mm

PDK6 - 826mm x 2040mm

PDK7 - 726mm x 2040mm

PDK10 - 930mm x 2315mm

Overall wall thickness with 12.5mm wall boards is 115mm


Dimensions: Kits can be cut down to suit smaller door sizes

Track: 280A

Hanger Set: Husky 100

Framework: Galvanised steel wrapped softwood studs (x4)



What else is in the kit?

Galvanised steel stud spacing brackets (x2)

Galvanised steel stud support brackets (x2)

Softwood header assembly (with pre-fitted track)

Retaining Stops: 601H clip stop with adjustable retention (x2)

Wall Stop: 287 rubber buffer (x1)
