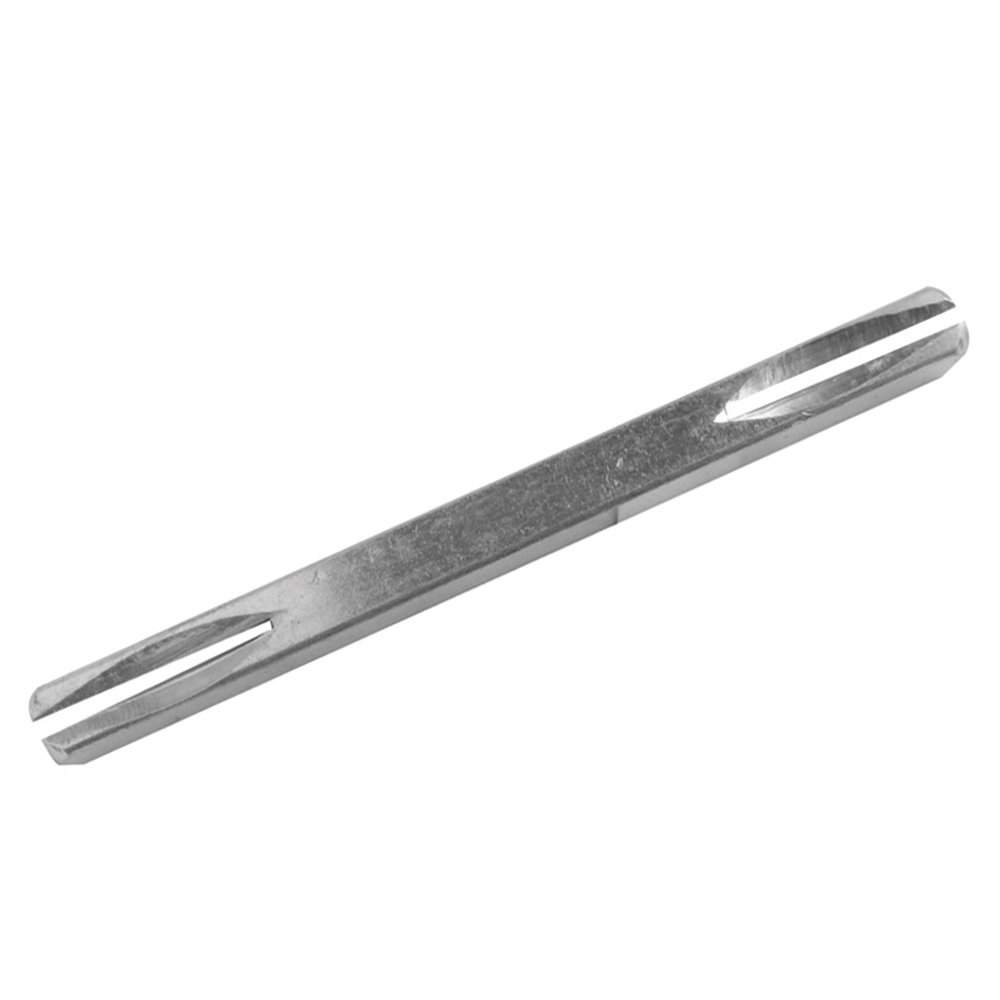

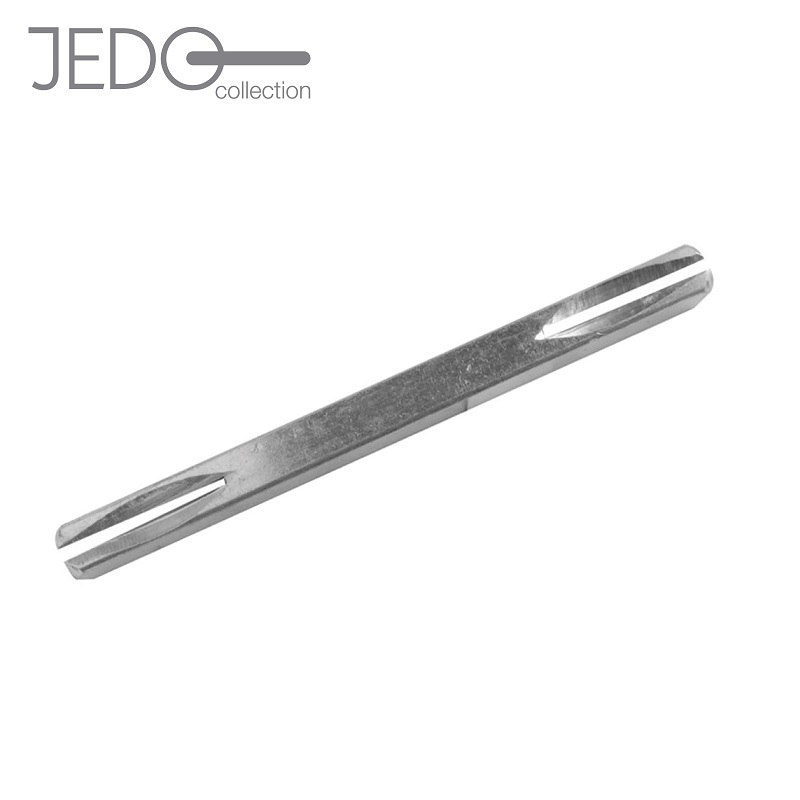

Jedo SPLIT Slotted Replacement Spindle Connector Rod 8mm

Product Code:
F/S800S1
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

from
£1.02 Incl. VAT
Oops! Please select from the options

Product Description


MATERIAL: Steel

TYPE: Slotted split spindle connector for door lever handles

STYLE: Squared rod with 8mm diameter

FINISH: Zinc plated

Description

  • Split spindle connector rod used for securing lever handles on both sides of door

  • Slotted at both ends

  • The split design provides a more secure fixing - when a grub screw is inserted through the neck of the door handle it opens the slot up and creates a wedge for a more secure fixing

  • Ideal replacement or spares item

  • High quality solid steel construction

  • Squared rod with a 8mm diameter

  • The spindle passes through the door and latch, securing the handles on both sides

  • Not suitable for rim door furniture

  • Compatible with the Excel Hardware DESIGNER range of lever handles

  • Supplied in a shiny zinc plated finish

  • Premium product from the Jedo Collection which is renowned for its reliability and overall quality of finish and operation

  • 12 month manufacture defect guarantee



Simply choose the amount of spindles you want in your pack - great savings for bulk buys!

Q: What is a door spindle?
A:The spindle is a straight metal (often steel) bar that connects the pair of lever handles on both sides of the door.


Q: How do I fit the spindle and how does it work?
A: You connect the spindle to the holes found in the back of the door handles, through the tubular latch or mortice lock fitted in the door. This connection means when the handle is pressed down, the spindle spins and operates the latch and opens the door.

Q: What type of spindles are there?
A: Different handles can use different types of spindles. Lever on rose and lever on backplate handles primarily use plain, slotted or heso spindles. Rim door furniture usually requires a threaded spindle. If only one handle is being fitted (not a pair), you can use a dummy spindle.

Q: What size do I need?
A:
8mm diameter are the most common standard spindle size and as a result UK locks have a follower size of 8mm as standard.



Dimensions


Please note all dimensions are subject to a +/- 3mm tolerance


SPINDLE ROD DIAMETER: 8mm

SPINDLE OVERALL LENGTH: 100mm or 110mm

LENGTH OF THE SLOT: 23mm (both ends)



Technical Information


Like all metal based products ironmongery requires regular cleaning to prevent deposits from accumulating and damaging the items appearance. The following instructions will enable you to prolong the lifetime of the finish on these products.

Under no circumstances should you clean these products with ABRASIVE CLEANERS or ACID BASED PRODUCTS

PLATED FINISHES:

Occasional wiping with a soft clean cloth and cleaning with a non abrasive wax polish
