ACO StepDrain Doorway Threshold Drainage System 940mm or 1088mm

Product Code:
ACO-968
Brand:
Est. Delivery: Select option below
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

from
£169.78 Incl. VAT
Oops! Please select from the options

Product Description

ACO StepDrain Doorway Threshold Drainage System available in two sizes is a high quality unobtrusive level threshold drainage system which eliminates water ponding at house entrances, fitted with a stainless steel Heelguard grating. The system is compliant with Part M of the Building Regulations for England and Wales and section 4 of the Scottish Building Standards.

  • Quick and easy installation, door frame does not need to be cut to install system
  • Sub-surface drainage inlets
  • Silt bucket provided for ease of maintenance and cleaning
  • Outlet for 40mm waste pipe
  • Available in two channel lengths, 940mm and 1088mm
  • Body of the unit manufactured from galvanised steel
  • System ideal for use with up to 100mm block paving
  • Frame manufactured from grade 304 stainless steel
  • Removable Heelguard grating manufactured from grade 304 stainless steel
  • Compliant with Part M of the Building Regulations for Endland and Wales and Section 4 of the Scottish Building Standards

Dimensions

Length: 940mm / 1088mm
Width: 53mm
Depth: 159mm
Invert: 150mm
Weight: 9.00kgs / 10.40kgs

Slimline Domestic Level Threshold Door Drainage

The standard channel assembly consists of a slimline galvanised steel channel and stainless steel grating. It is available in two channel lengths, 940mm and 1088mm, to provide a threshold drainage solution for almost any door size.

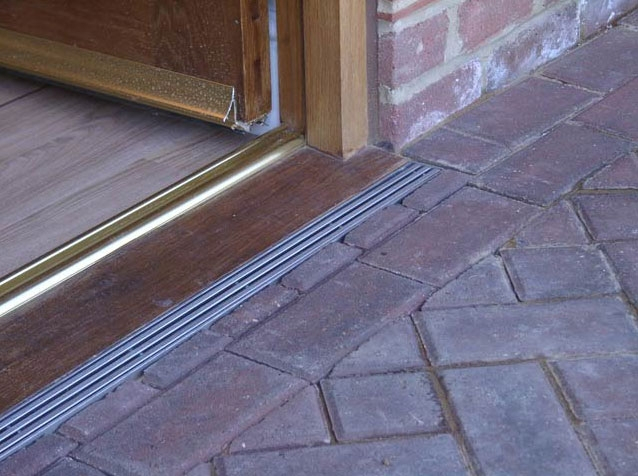

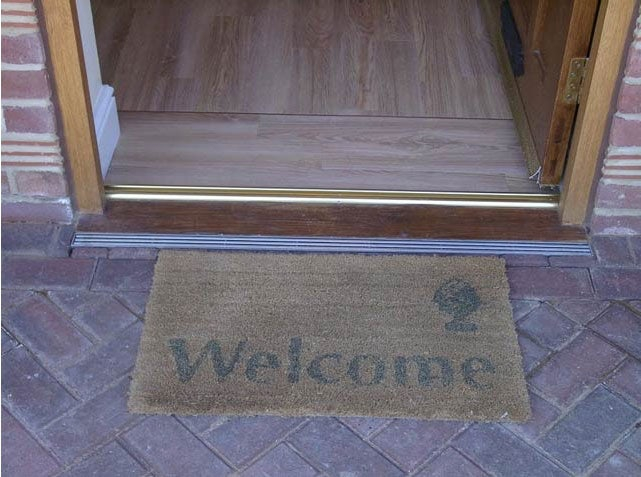

Installation is quick and easy, ACO StepDrain simply slots in front of the door below the threshold. No cutting of the door frame is required, and the front outlet can be arranged to open directly into a single soakaway.

Finished with a cushioned, heelsafe, 304-grade stainless steel grating, ACO StepDrain will not require regular cleaning due to its small slot sizes. When cleaning is required, the grating simply lifts off to allow the galvanised silt traps to be emptied.

Product Documents

Dimensions

WIDTH 53mm LENGTH 940mm
1088mm

Details

Size 940mm
1088mm
Material Galvanised Steel Depth 159mm Weight Class A15
Grate Material Stainless Steel Grate Design Features Heelguard Grate
