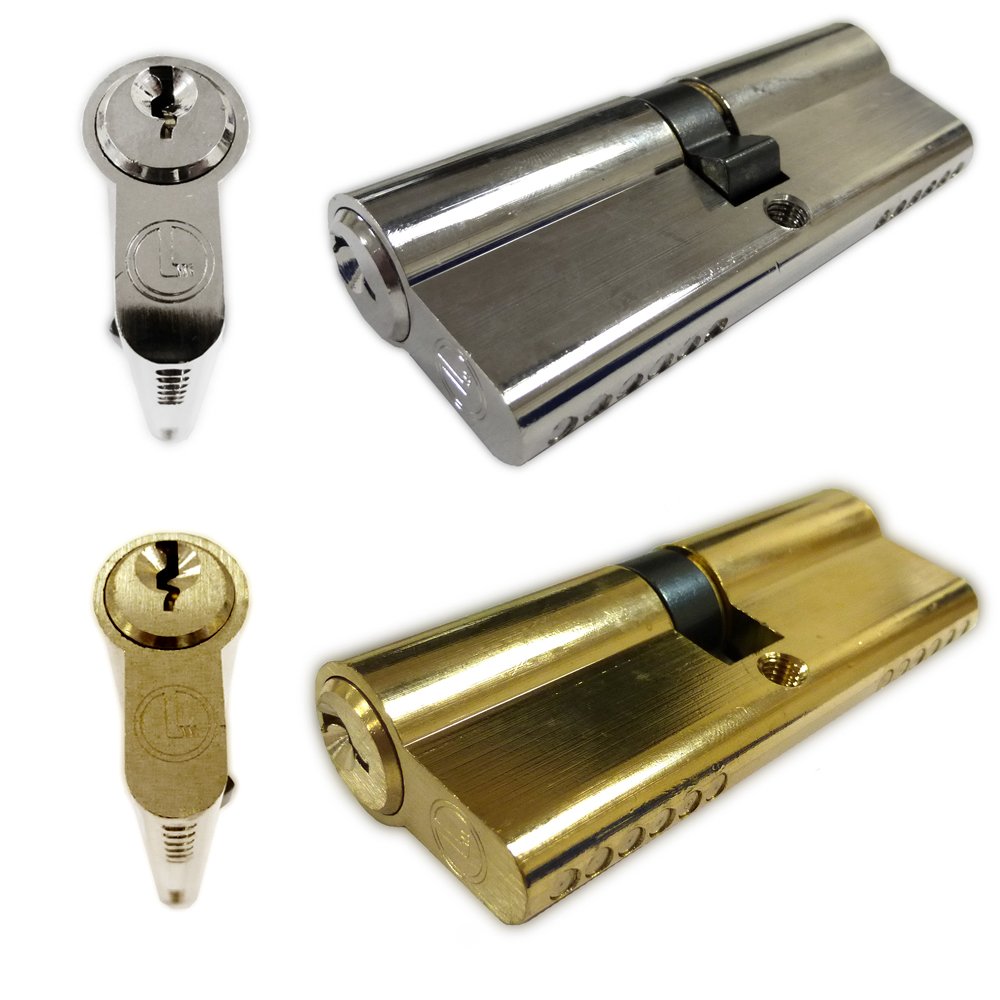

Euro Cylinder Lock in a Brass or Nickel Finish

Product Code:
E/
Brand:
Est. Delivery: Select option below
Shipping costs displayed in basket.

This item is out of stock and not available to purchase.

We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

from
£4.10 Incl. VAT
Oops! Please select from the options

Product Description


MATERIAL:
Solid Brass

TYPE:
 Euro Lock Cylinder

STYLE:
Key lockable double cylinder

FIXINGS:
2 x connecting screws included

ADDITIONAL FEATURES:
 6 pin lock for high security, three keys included



Description


Available in both brass and satin finishes, these euro profile cylinder locks are manufactured from solid brass and incorporate 6 pins for security (30/30 cylinders only have 5 pin locks).

The high security 6 pin cylinders have anti-pick, hardened pins and four mushroom drivers offering in excess of 100,000 key differs. This range of high performance profile locking cylinders have been engineered for ease of application and long term trouble free performance.

  • Double cylinder locks which enable lockable access from either side of door

  • 6 pin locking mechanism for high security uses

  • Supplied with three keys

  • Made from a high quality and strong solid brass

  • Available in various sizes and configurations

  • Individually boxed

  • Conforms to latest BS EN 1303:2005 standard

  • Suitable for all euro profile mortice and multi point Locks

  • 12 month manufacturer guarantee


Please note: Cylinders smaller than 35/35 have a 5 pin locking mechanism.




Technical Information


For example: 50/50 lock is A = 50mm / B = 50mm

Click here for full downloadable instructions


How do I measure and order a door cylinder?


The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all).

It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Measurement A: measure from the keyhole end to the middle of the central screw hole (e.g. 45 mm).

Measurement B: measure from the middle of the central screw hole to the end (e.g. 35 mm).



Total cylinder length = Measurement A + Measurement B



How do I fit a new door cylinder?

1. Open the door and unscrew the one fixing screw which is located on the lock faceplate (the strip of metal the full length of your door), in line with the bottom of the door cylinder.

2. Put the key into one side whilst holding the other side firm.

3. Turn the key and the cylinder should slide out, if it does not turn the key in the opposite direction and the cylinder should slide out.

4. Take your new cylinder lock and insert the new key and turn it until the cam is inline with the body of the cylinder. Insert the new cylinder into position and replace the fixing screw.

5. If the door cylinder is offset (i.e. 40/60, 30/50 etc) ensure the offset is protruding from the correct side. Check the operation of the lock before you close the door.



How far should a door cylinder protrude out of the door handle?

Your new door cylinder should protrude between 2mm and 5mm from the handle back plates, but due to the overall lengths of cylinders available this is not always possible. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).


The stamp on the product is now "LSH":

ERA Products, The Door Lock People, have joined with sister company LSH (formerly Laird Security Hardware), to provide customers with the complete package in door and window hardware.

LSH will now be known as ERA Security Hardware Solutions sitting alongside ERA Products under the newly created company; ERA, Leaders in Hardware for Doors & Windows.

Product Documents

There are no product documents to show.

Dimensions

WIDTH 35mm LENGTH 35mm THICKNESS 100mm

Details

Size 30/30
35/35
35/40
35/45
35/55
40/40
40/45
40/50
40/55
40/60
45/45
45/50
45/55
50/50
Finish Brass
Nickel

Products We Recommend

loading...
loading...

Questions & Answers

There are currently no questions for this product.

Have a question about this product?

Product Reviews

5 / 5 1 reviews
Ian
Reviewing ERA Euro Profile Nickel 40/45
3rd September 2020
Does the job,good price and no problems fitting.
