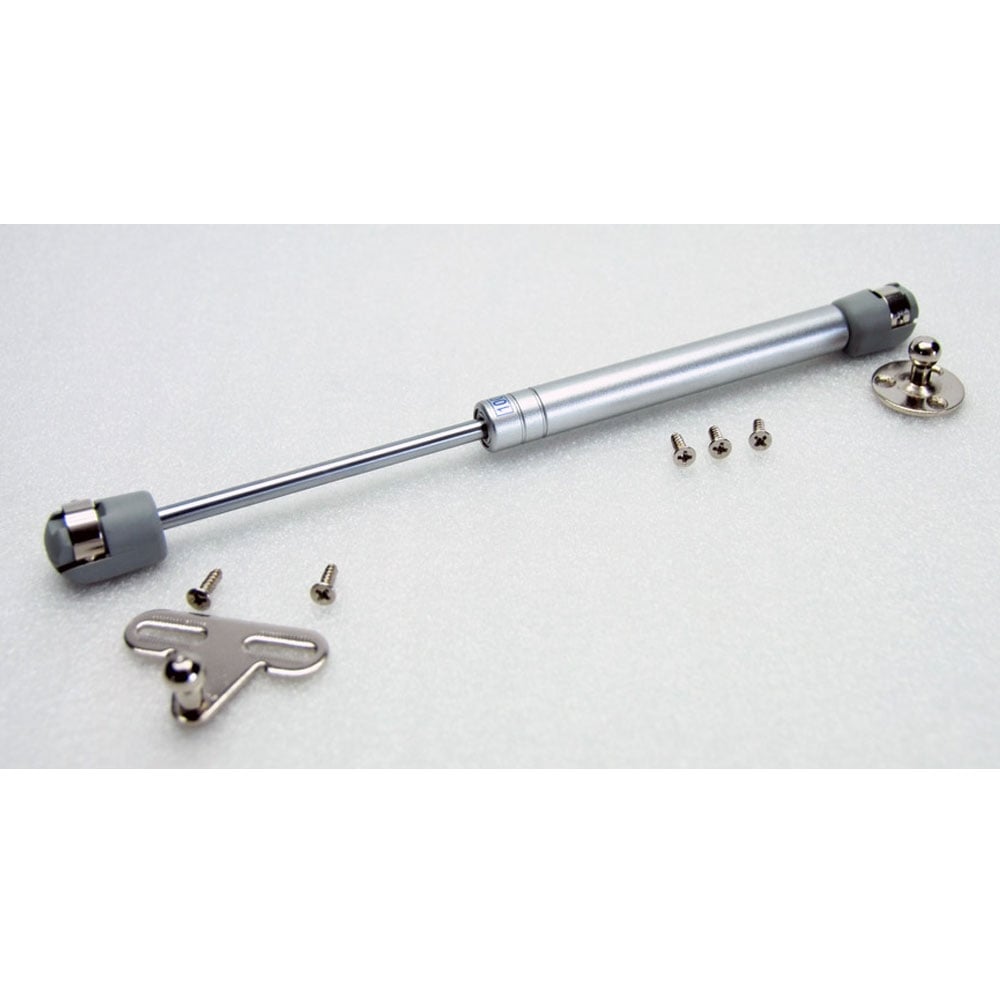

Cabinet Door Soft Close Lid and Flap Stay

Name: Cabinet Door Soft Close Lid and Flap Stay
Brand: East Coast
SKU: GLA0

Code:

GLA0

Brand:

East Coast

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: Metal tube and plastic endsTYPE: Cabinet lid and flap stay STYLE: Soft close strutFINISH: Silver painted casing and polished chrome-plated sliding barFIXINGS: Nickel-plated screw fixing brackets and 5 x 10mm wood screws includedADDITIONA...Read More

View full product details

View questions about this product

Create a wishlist

SONIA CRASKE

Description

MATERIAL: Metal tube and plastic ends

TYPE: Cabinet lid and flap stay

STYLE: Soft close strut

FINISH: Silver painted casing and polished chrome-plated sliding bar

FIXINGS: Nickel-plated screw fixing brackets and 5 x 10mm wood screws included

ADDITIONAL FEATURES: Supports cabinet opening angles: 75�?, 90�? or 110�?

Description

Easy to use cabinet stay - lid or flap can be opened and held in place
Soft and silent cabinet door close with a smooth action
Choose from two types of stay with different forces - 60N and 80N. Use the tables below to find out which stay your cabinet doors would need based on lid dimensions, weight and opening angle required
For pneumatic support
Unhanded design - can be fitted to either the left or right handed side of the furniture
Useful for downward closing and over head cabinets
Clip-mounting on pre-mounted screw fixing brackets, no tools required
Suitable for wooden and aluminium frame doors
Supports cabinet opening angles of 75�?, 90�? or 110�?
Silver painted casing and polished chrome-plated sliding bar
All fixing hardware required is included - nickel-plated screw fixing brackets and 5 x 10mm wood screws included
This item also requires cabinet hinges to also be installed to the door/lid/flap
Installation instructions included

What is a lid stay?

Lid stays offer controlled movement and a more basic solution which is ideal for a single panel door and available in a series of finishes.

Why use cabinet stays?

Stays offer freedom of movement, and creatively challenge space constraints, by varying the opening geometry so that the type of opening is geared to the amount of available space or the intended application. LIFT UP or DROP DOWN stays are available for a wide range of application types

What force will I need to select?

Use the table below to find out which force of stay you will need. All you need to know is the dimensions, weight of the lid and your desired opening angle. Firstly, find your lid height then work down the table until you find the correct maximum load baring weight that the stay would need to support. Then when you find a compatible weight for the lid height, move across to discover the force you will require. The results will vary for the differing opening angle required.

Dimensions

LENGTH: 268mm

WIDTH: 17mm

HEIGHT: 17.5mm

Specification

Details

Force 80N
60N
