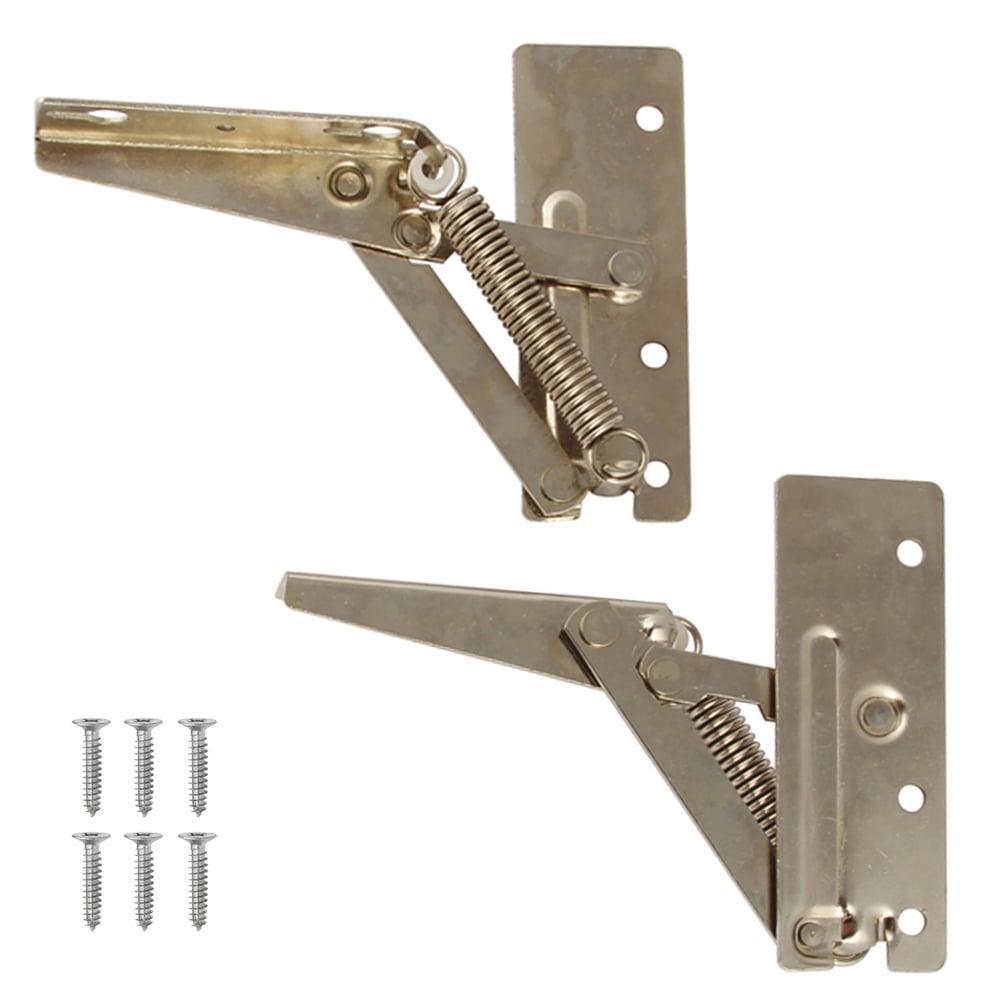

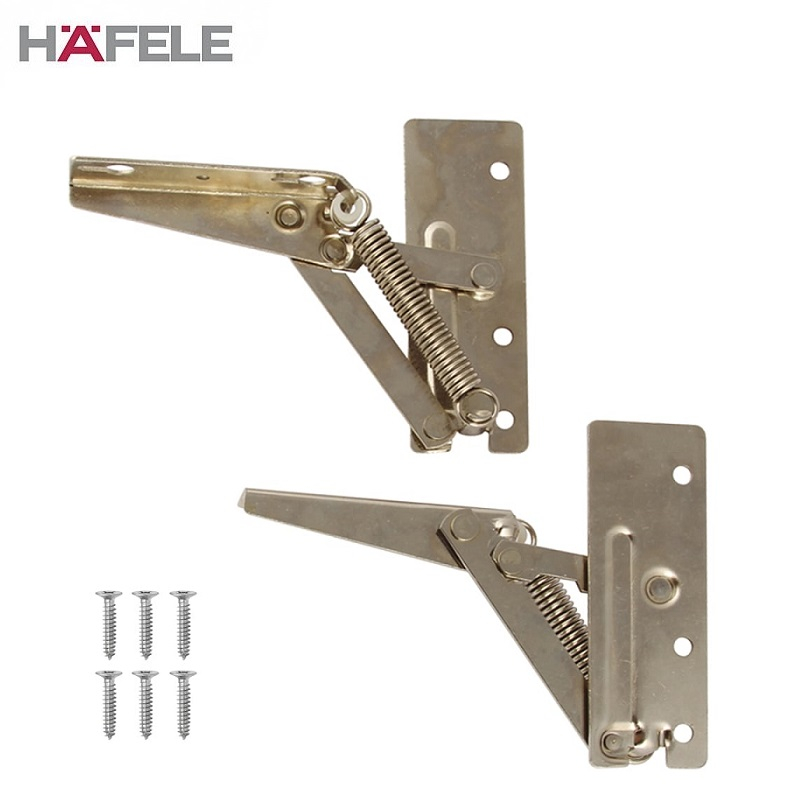

Pair of Zinc Plated Sprung Swing Up Flap Hinge Set

Name: Pair of Zinc Plated Sprung Swing Up Flap Hinge Set
Brand: Hafele
SKU: HF/50443920
Price: 10.19 GBP
Availability: Discontinued

Code:

HF/50443920

Brand:

Hafele

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: SteelTYPE: Top box cabinet swing hinge setSTYLE: Fully sprung on both sidesFINISH: Zinc Plated Description Swing up flap hinges are designed for use on top boxes, flaps and panels in tall cabinets. Sprung both sides or on one side, allowing for different door pan...Read More

View full product details

View questions about this product

Create a wishlist

susan drummond

Description

MATERIAL: Steel
TYPE: Top box cabinet swing hinge set
STYLE: Fully sprung on both sides
FINISH: Zinc Plated

Description

Swing up flap hinges are designed for use on top boxes, flaps and panels in tall cabinets. Sprung both sides or on one side, allowing for different door panel weights.
Sprung on both sides
Each set is made up of a pair of hinges
No concealed hinges are required for operation
95 degree opening angle

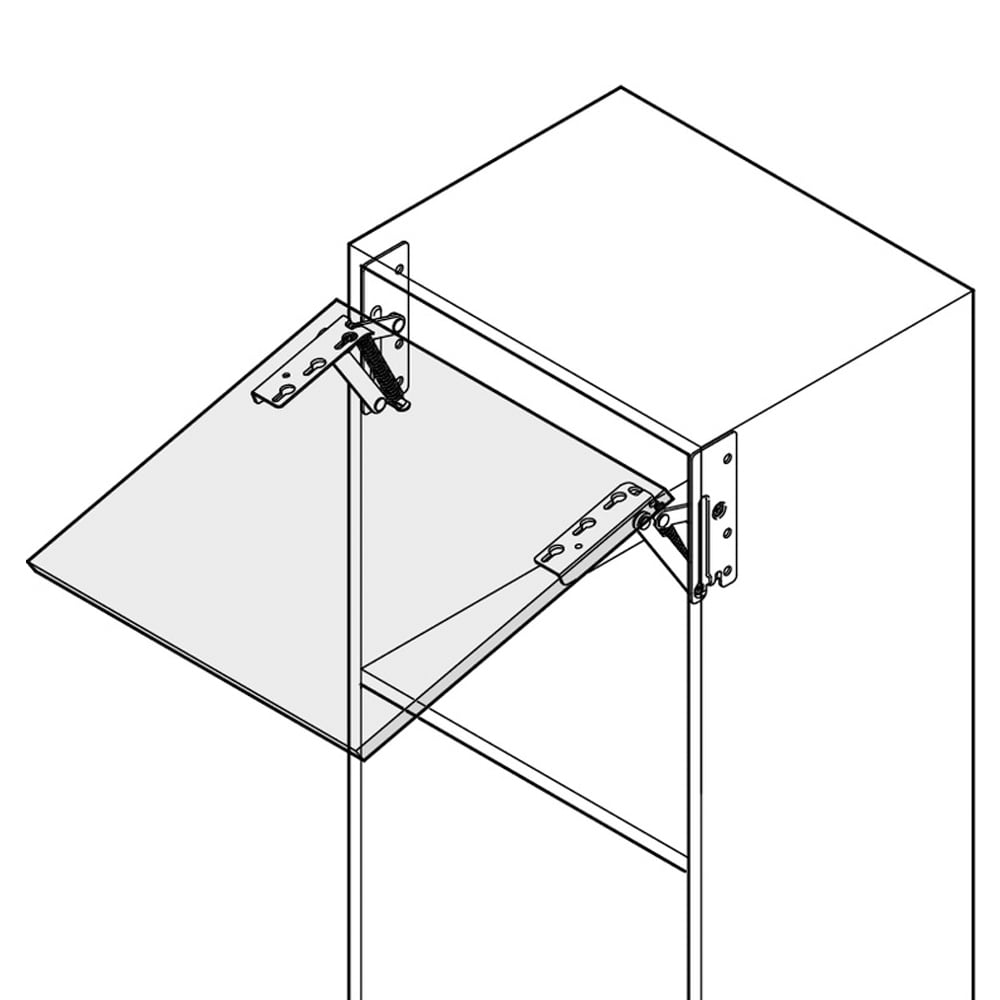

Ideal for lift up kitchen cabinet flaps, lids and boxes
These hinges ensure a smooth swing opening
Zinc plated finish on high quality steel
Maximum force of 180N per hinge (18kg)

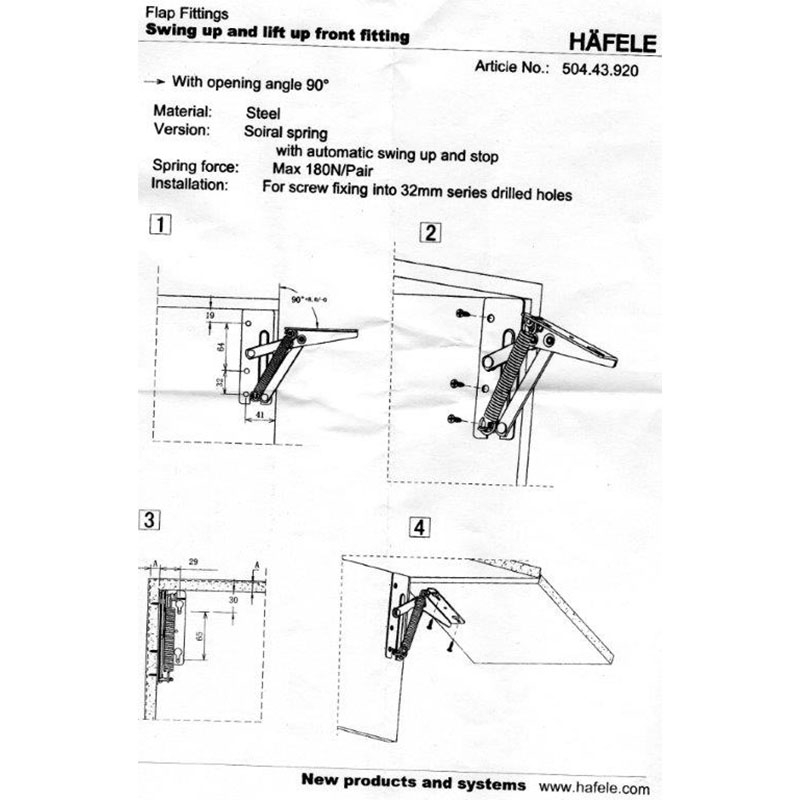

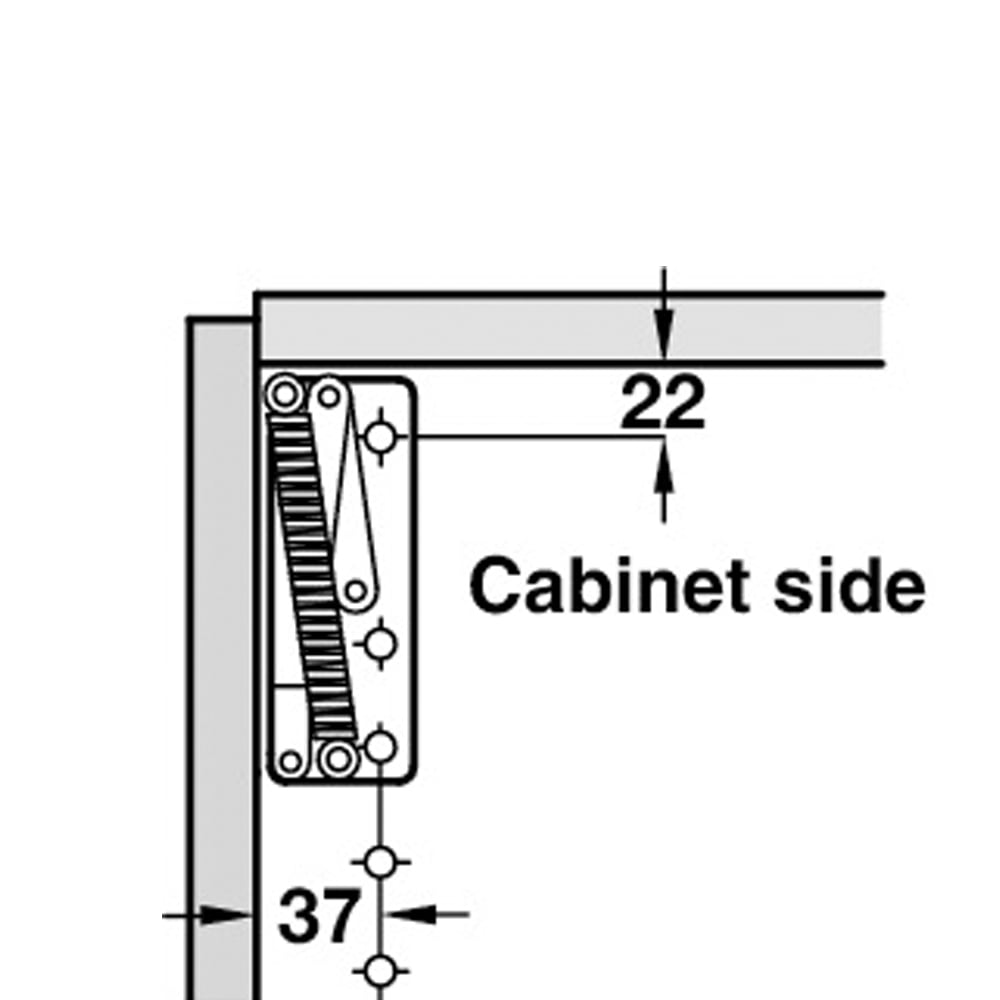

Installed using 3.5mm x 15mm Hospa screws into 32mm series drilled holes (not included)

Why use cabinet stays?

Stays offer freedom of movement, and creatively challenge space constraints, by varying the opening geometry so that the type of opening is geared to the amount of available space or the intended application. LIFT UP or DROP DOWN stays are available for a wide range of application types

What is a swing lift up hinge?

Swing stays and hinges can swivel around cornice profiles and top mounted lights, making them ideal for large flaps and able to provide easy access to cabinets and cupboards

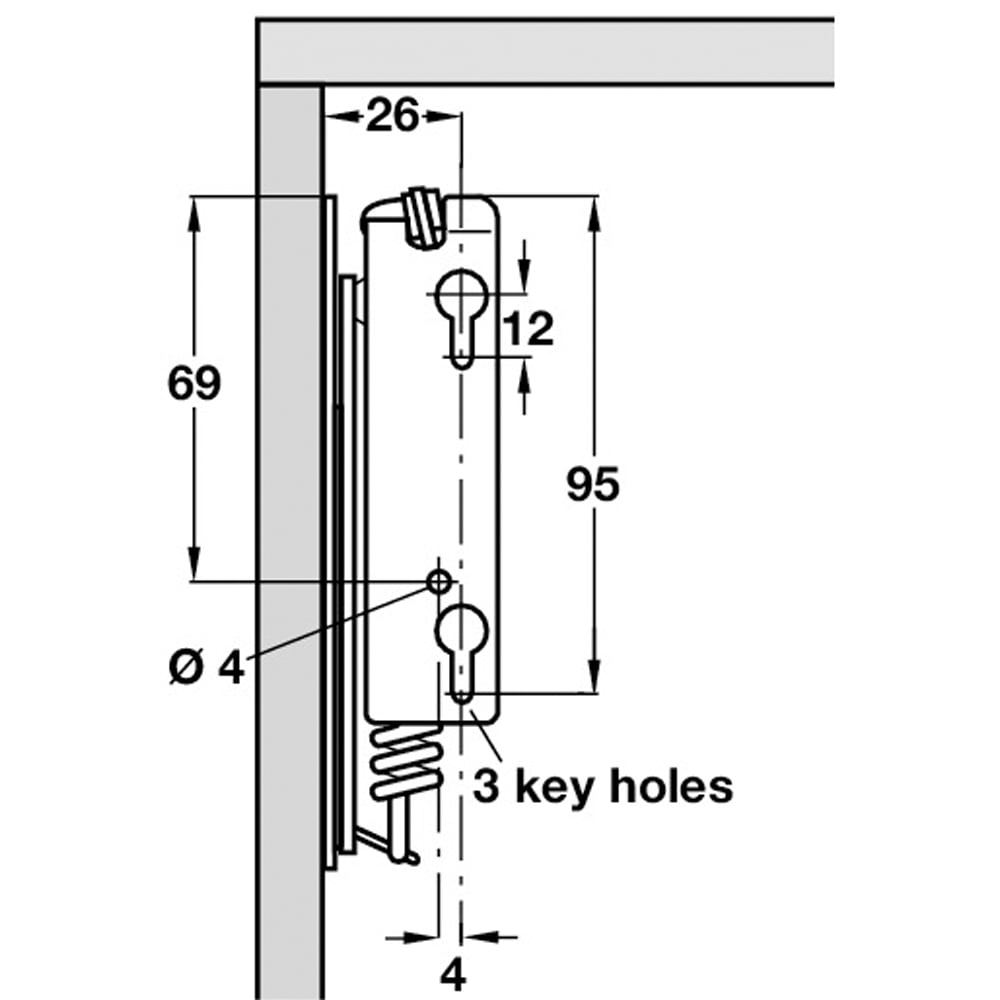

Dimensions

Please note that all dimensions are subject to a tolerance of +/- 3mm

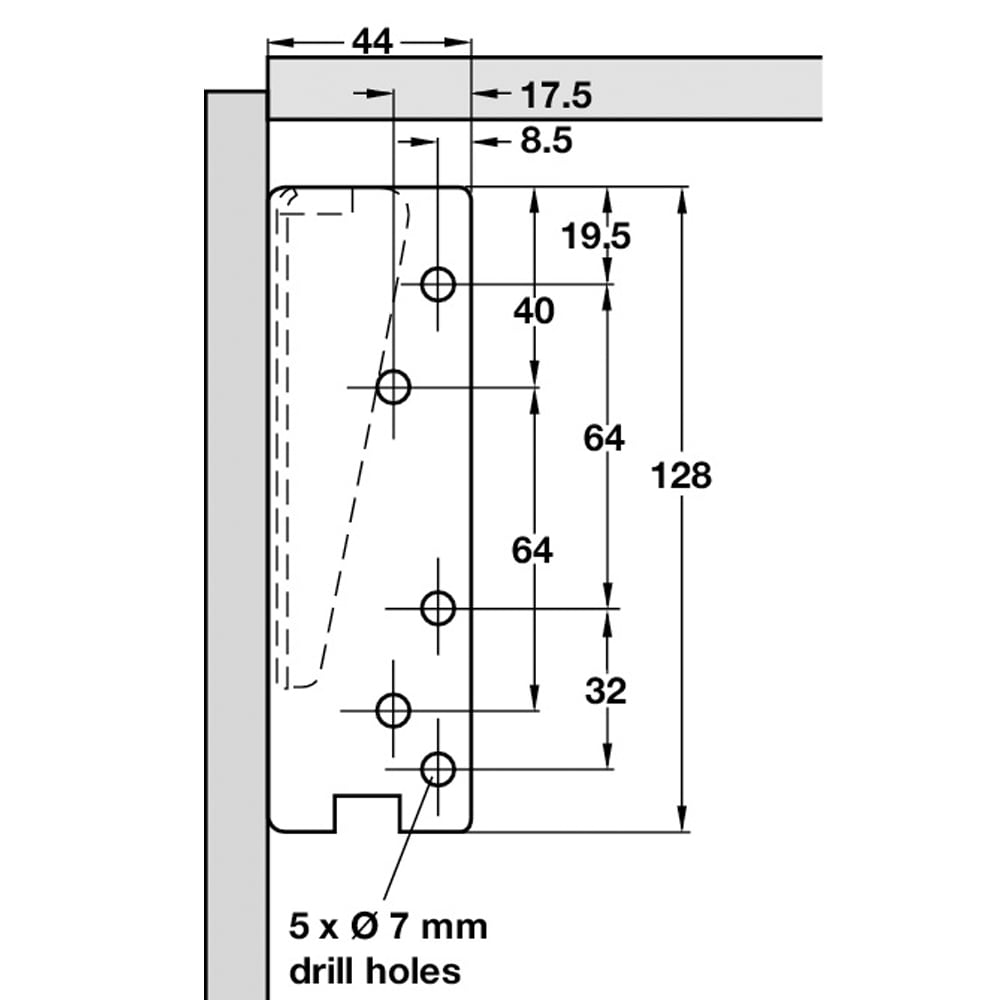

OVERALL HEIGHT OF FIXING PANEL: 127mm
OVERALL WIDTH OF FIXING PANEL: 44mm
LENGTH OF SPRING: 102mm
OVERALL PROJECTION WITH FLAP EXTENDED: 120mm
LENGTH OF BRACKET CONNECTED TO LID: 95mm

Specification

Details

Finish Zinc Plated
