Refrigerator 110 Degree Standard Keyhole Cabinet Hinge

Code:
HF/3125050
Brand:

This item is out of stock and not available to purchase.

MATERIAL: Steel (cup) and Zinc Alloy (arm)TYPE: Concealed cabinet hingeSTYLE: 110 degree kitchen fridge and freezer cabinet unit hingeFINISH: Nickel Plated FIXINGS: 3.5 x 15mm countersunk Hospa screws and pre-mounted euro screws or 3mm diameter sc...Read More

Create a wishlist

"Great service all round"

Mr John King

Description


MATERIAL: Steel (cup) and Zinc Alloy (arm)

TYPE: Concealed cabinet hinge

STYLE: 110 degree kitchen fridge and freezer cabinet unit hinge

FINISH: Nickel Plated

FIXINGS: 3.5 x 15mm countersunk Hospa screws and pre-mounted euro screws or 3mm diameter screws included with mounting plates

Description



  • Designed for use on kitchen cabinet doors and units with integrated fridge or freezers

  • Allows the fridge door to open with the cabinet door in one action

  • 110 degree opening angle

  • Select your required mounting plate from drop down menu (if needed)

  • Screw fixing cup with Smuso click on arm

  • Keyhole fixing arm

  • Designed for door thicknesses up to 22mm

  • Full overlay mounting steel cup and zinc allow hinge arm

  • Not soft close compatible

  • Opens with handle (not included)

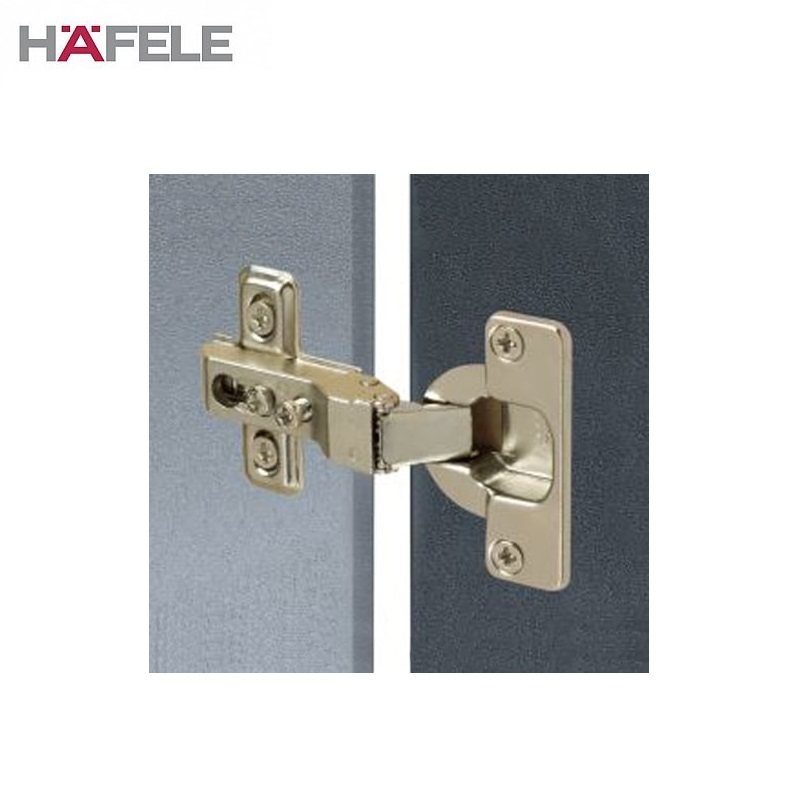

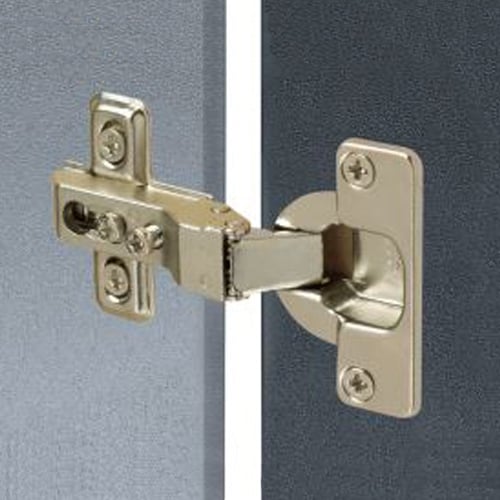

PLEASE NOTE: Picture of this product shows the item with a 0mm mounting plate, please select this option to receive the item exact to the picture

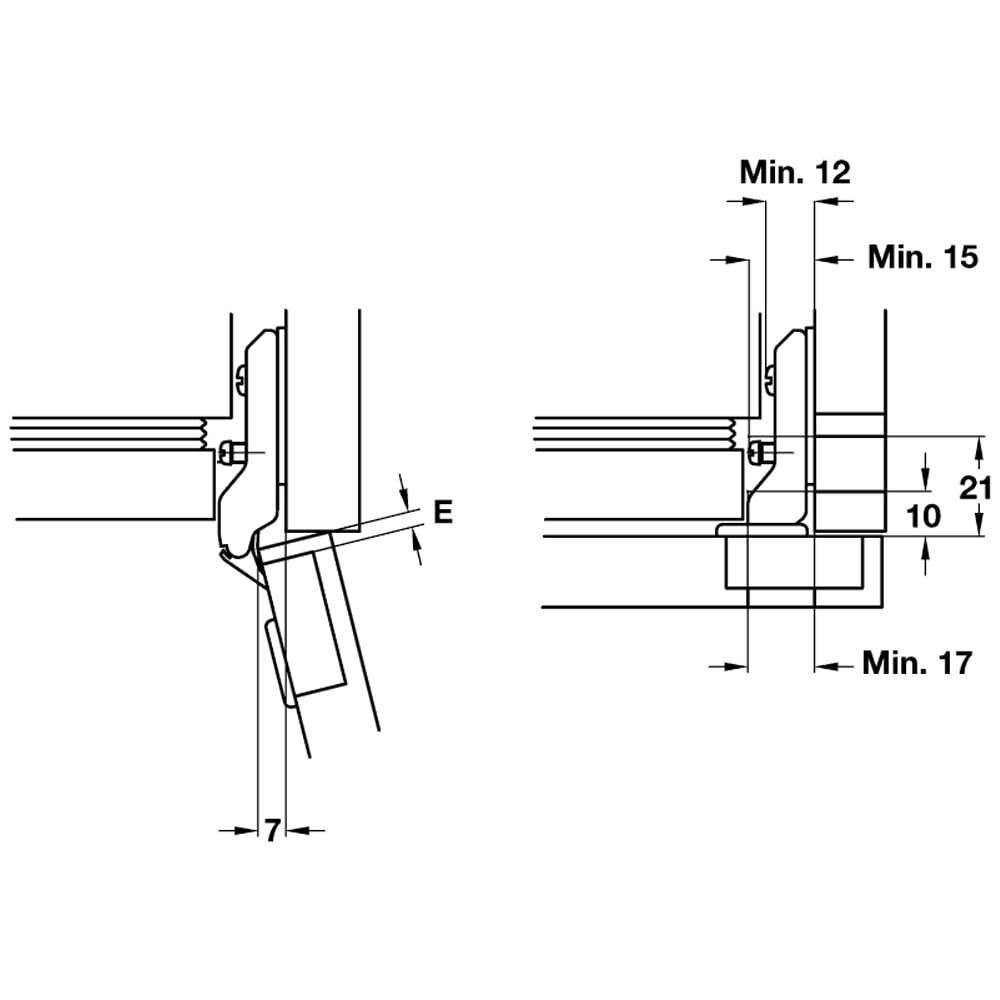

Dimensions


DRILLING DIAMETER FOR HINGE CUP: 35mm

DRILLING DEPTH: 11.5mm

OVERALL LENGTH (INC ARM AND CUP): 95mm

ARM WIDTH: 15mm

ARM OVERALL PROJECTION: 15mm

FIXING CUP HEIGHT:
 57mm

FIXING CUP WIDTH: 20mm

FIXING CUP DEPTH: 13mm

FIXING CUP HOLE CENTRE TO CENTRE: 45mm


0mm PRE-MOUNTED EURO SCREW MOUNTING PLATE MEASUREMENTS

MOUNTING PLATE LENGTH:
42mm

MOUNTING PLATE HEIGHT: 4mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS: 0mm (designed for 18mm carcass thickness)

MOUNTING PLATE WIDTH: 52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT: 32mm


3mm PRE-MOUNTED EURO SCREW MOUNTING PLATE MEASUREMENTS

MOUNTING PLATE LENGTH:
42mm

MOUNTING PLATE HEIGHT: 8mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS: 3mm (designed for 15mm carcass thickness)

MOUNTING PLATE WIDTH: 52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT: 32mm


Details

Mounting Type Pre-Mounted Euro Screw (0mm Height)
Pre-Mounted Euro Screw (3mm Height)
No Mounting Plate
