Home Door Furniture Sliding Door Hardware SLIK Bi-Folding Door Track and Gear Kit (For door sizes up to 914mm)

SLIK Bi-Folding Door Track and Gear Kit (For door sizes up to 914mm)

Code:
08SL0060914
Brand:
Stormguard
Free UK Delivery

MATERIAL: Aluminium TrackTYPE: Folding Door Gear KitSTYLE: Bi-folding door kitFIXINGS: Pack includes all fixing screws required for installation Please note, next day delivery is available upon request. This SLIK bi-fold door kit allows doors to fold eith...Read More

View full product details
View questions about this product
Create a wishlist

"Great Service"

Christine Preston
Description Specification Downloads Q&A View collection

Description

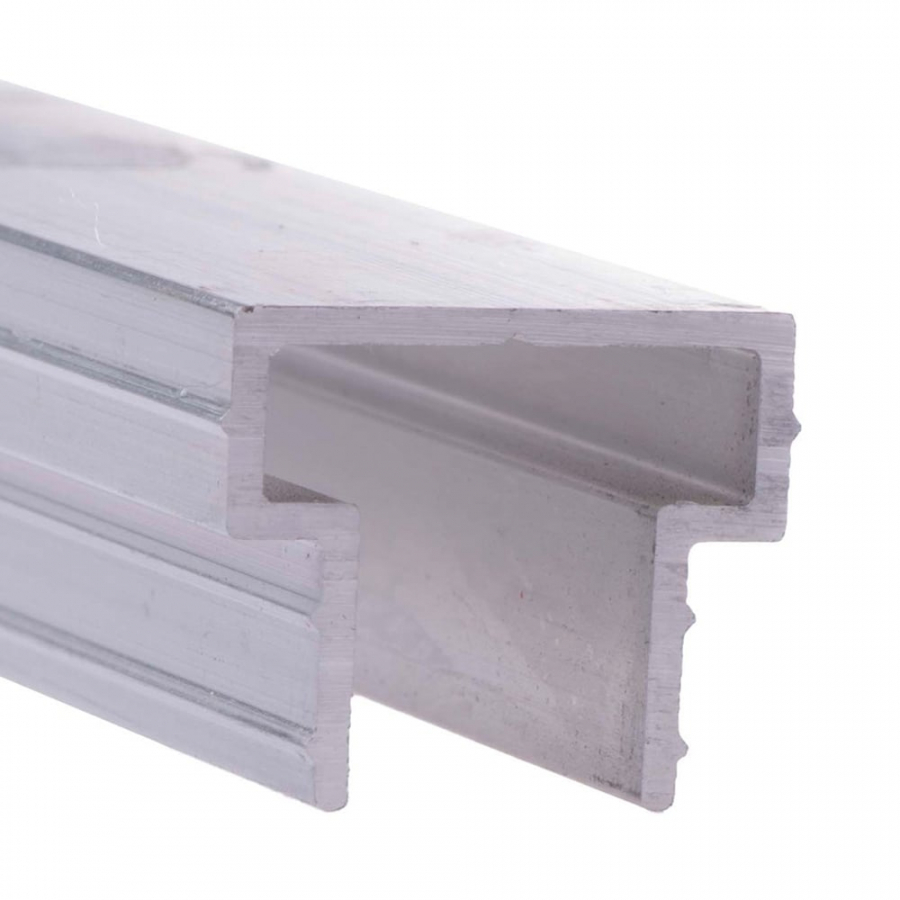

MATERIAL: Aluminium Track
TYPE: Folding Door Gear Kit
STYLE: Bi-folding door kit
FIXINGS: Pack includes all fixing screws required for installation

Please note, next day delivery is available upon request.

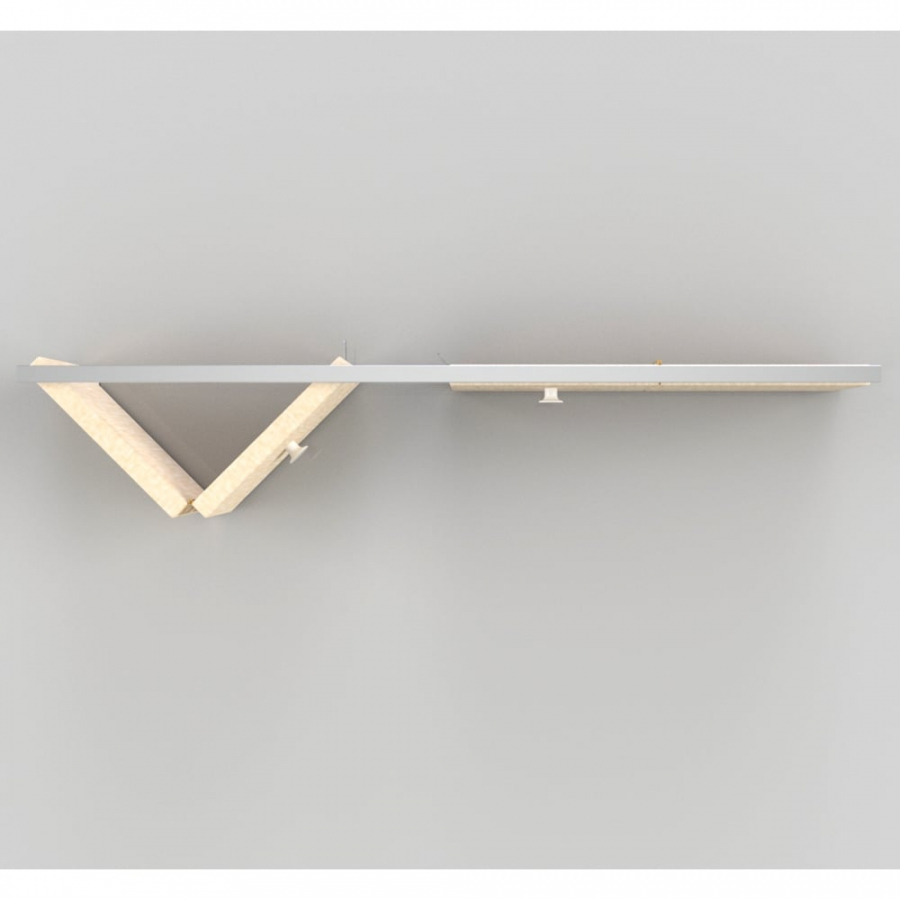

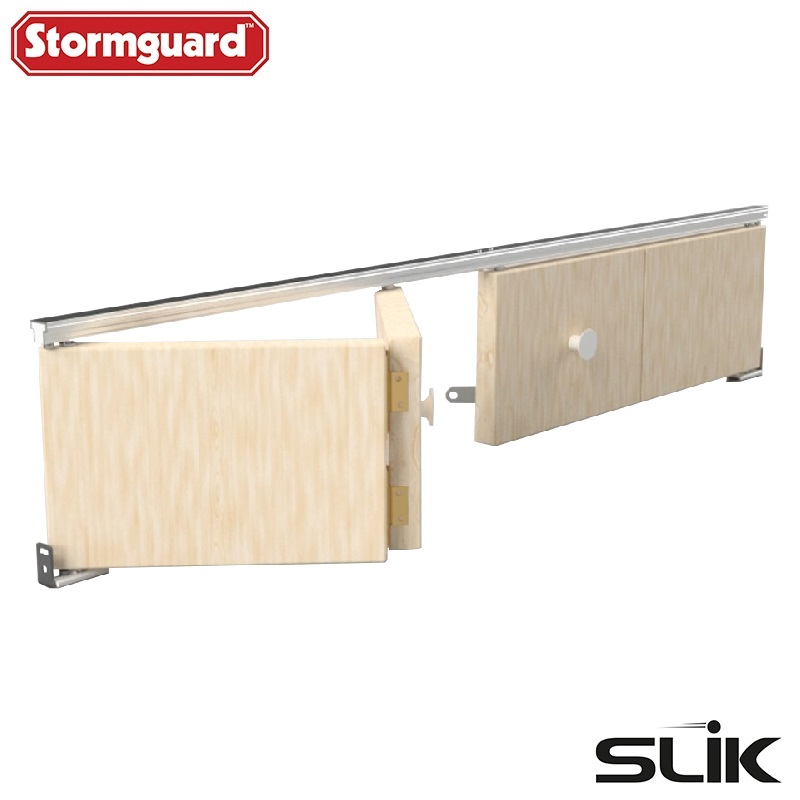

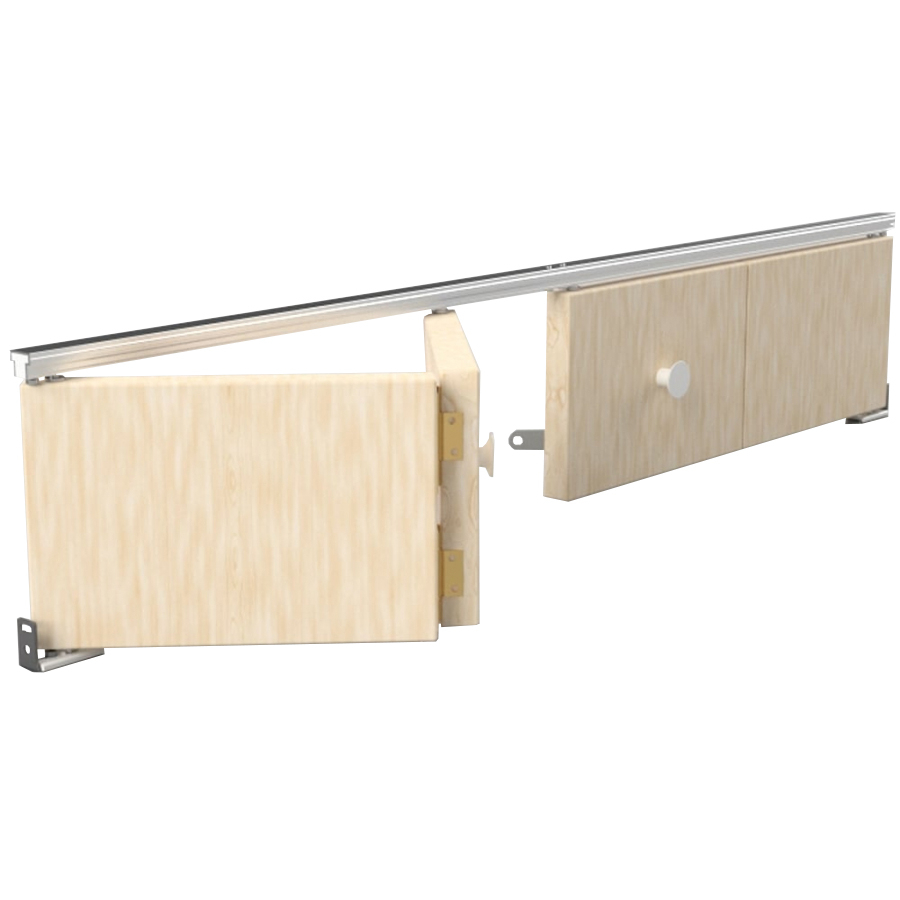

This SLIK bi-fold door kit allows doors to fold either side of an opening leaving the floor clear for easy access.

  • Suitable for door widths up to 914mm
  • The track can be cut to match your opening width

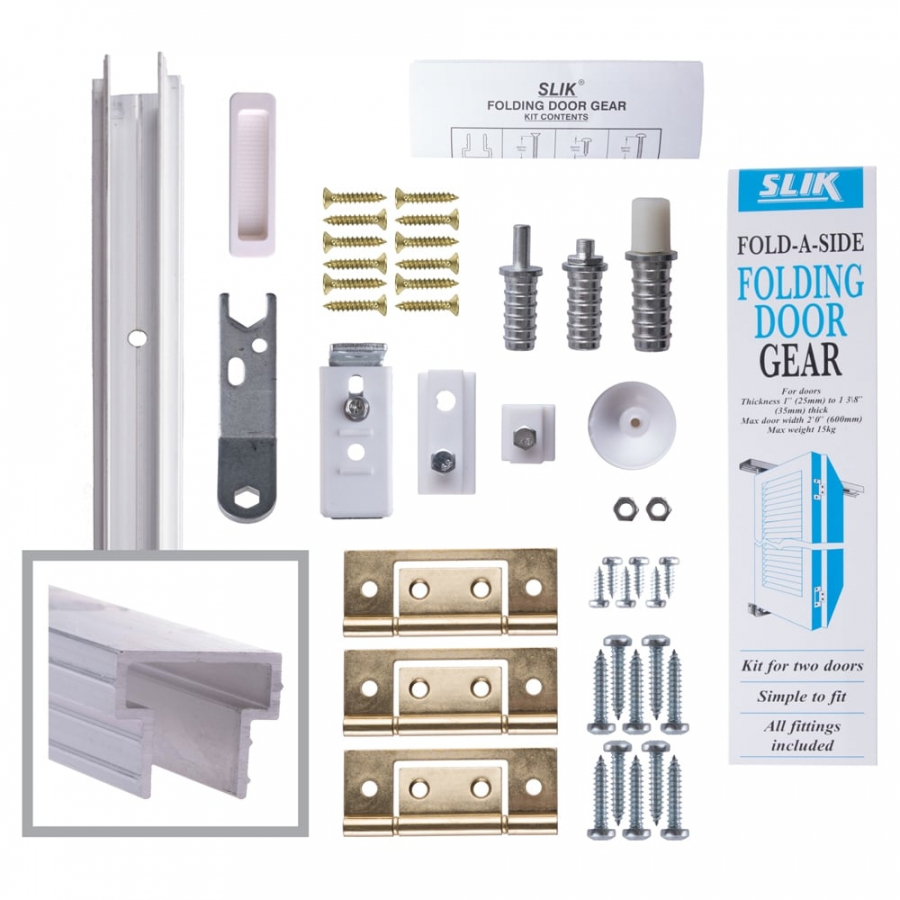

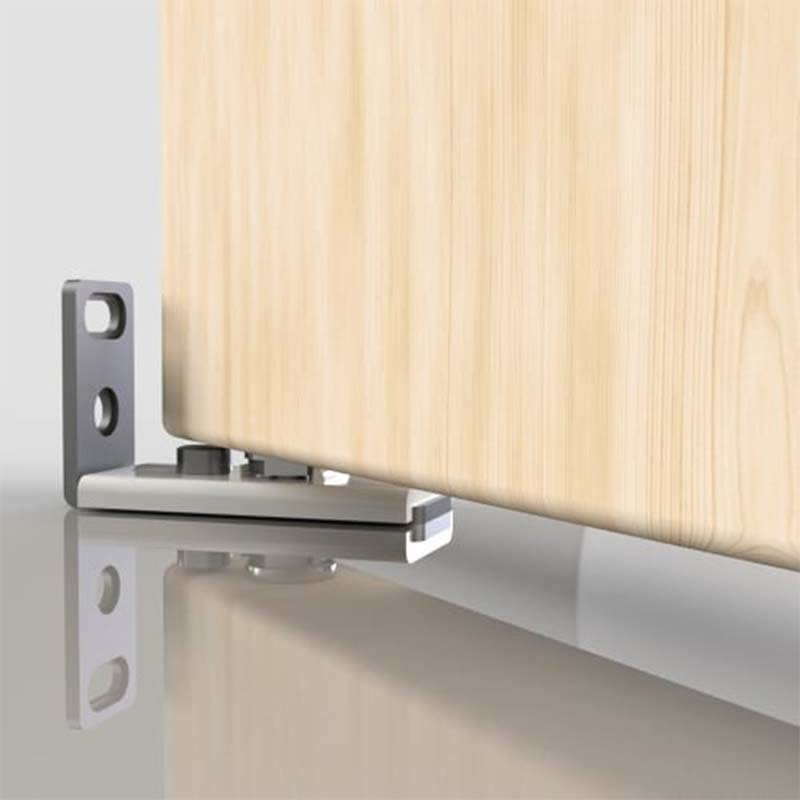

  • Bi-fold kit includes top track with top pivot bracket, slide guide, top and bottom pivots, jamb brackets, hinges, door aligner and fixing screws
  • Designed for fitting doors to fold either side of an opening
  • 3'0" (914mm) kit suitable for two doors only
  • Track can be easily cut down to suit 24" (610mm) 27" (686mm) 30" (762mm) door sizes
  • Suitable for doors from 25mm to 34mm thick
  • Tracks can be butted up together up to an 8'0" (2438mm) length with 4 door leafs. The joint of the track will need to be in the centre of the opening so it does not interfere with the operation of the slider.
  • This product has been designed for 2 doors on each side of the opening. We do not recommend fitting more than 2 doors either side.

Please note, handles are not included

Specifications

Maximum weight per door is 15kg (33lbs) each

Maximum system weight 60kg (132lbs)

Doors from 1" (25mm) to 1 3/8" (34mm) thick

Doors up to 2'0" (600mm) wide

3'0" (914mm) kit suitable for two doors only

Suitable for doors from 25mm to 34mm thick

Top Track Length: 914mm
Top Track Height: 20mm
Top Track Depth: 24mm

Dimensions

Size 914mm

Details

Finish Aluminium Material Timber Door Location Internal Door Style Flush
Trim Tolerance - Top 0mm Trim Tolerance - Bottom 0mm Trim Tolerance - Sides 0mm Door Family LPD Flush Core Construction Solid Engineering
Veneer Primed

Questions & Answers

Question:

Dear sir / madam, I am looking to fit small bi fold wooden shutters internally. Ie; 2 left 2 right. They would be similar to cabinet door weight. So nothing heavy. The track would be approx 1 mtr in length. Do you have a kit to suit my requirements or do I buy a 2 door kit and add additional parts to make up for a 4 door? Many thanks Mike

Answer:

The largest size available is the 08SL0061219, which is 1219mm wide. We would advise against combining more than one track as we can not guarantee they will operate in unison as they are only supplied to be used as single-units.
