ACO Doorway Drain Channel Threshold Drainage System - 1m

Product Code:
Est. Delivery: 3-5 Working Days
Shipping costs displayed in basket.
We can let you know when this product is back in stock.

This product is proving to be very popular and has unfortunately sold out.

Enter your email below and we'll notify you as soon as this product is back in stock:

Subject to stock availability, if products on a 24 hours service are ordered alongside products NOT on a 24 hours service, this may delay your whole order.

View Transport Policy

All delivery charges are included in the final shopping basket and are dependent on the products Scottish Highlands & the Islands where additional shipping charges will apply.

Please note that not all products will incur an additional delivery charge to the Scottish Highlands & the Islands – this is based on the costs from the manufacturer, distributor or courier providing shipping on our behalf. If your delivery address is in the Scottish Highlands and Islands, a member of our helpline team will contact you prior to processing your order should an additional delivery charge apply.

While we make every effort to ensure orders are delivered by the date required, we cannot guarantee availability from the manufacturer or the manufacturer's delivery schedules.

Any variation to web delivery date given will be advised to you by email or telephone. If we are unable to make delivery because access is not possible, we reserve the right to make a failed delivery charge.

£105.77 Incl. VAT
Oops! Please select from the options


ACO DoorWay Drain is designed for use with doorway systems up to 1000mm wide to create a threshold drain, however multiple drainage runs can be achieved by simply clipping units together, for simple, unobtrusive threshold drainage compliant with Part M and Section 4 Building Regulations.

  • Heelguard friction fit grating
  • Two piece stainless steel gratings with brush effect finish
  • Multiple drainage runs can be achieved by simply clipping the units together
  • Compliant with Part M of the Building Regulations for England and Wales and Section 4 of the Scottish Building Standards
  • CE marked and fully certified to Load Class A 15 BS EN 1433:2002

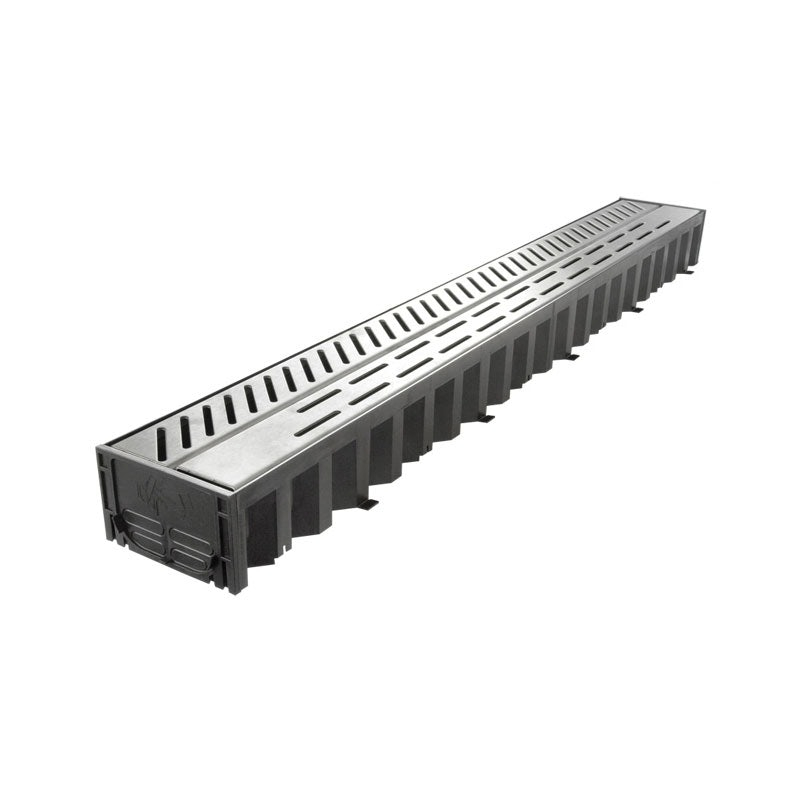

Manufactured from recycled polypropylene, the 1m channel unit is combined with two Heelguard, friction-fit stainless steel gratings. In addition to the channel unit, all accessories such as end caps and outlet connectors are provided within the pack to achieve a simple, professional installation.image

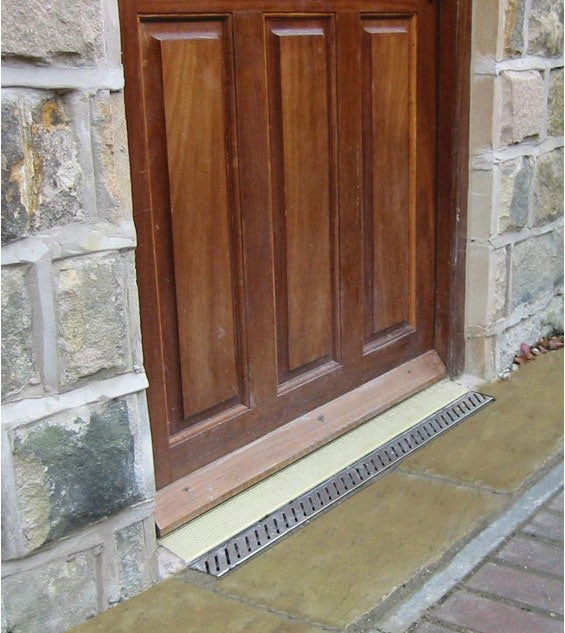

ACO DoorWay Drain requires no cutting of the door frame and simply slots in front of the building entrance. Complex plumbing is eliminated as the system can drain to a simple soakaway via the end caps provided. If a plumbed in option is required, the Ø110mm vertical outlet connector allows the unit to link directly to underground drainage pipework.

The pack has been designed to contain everything needed to install a level threshold drainage system across building entrances.

Pack contents

  • 1m ACO DoorWay Drain unit with removable two piece stainless steel gratings (channel width 125mm)
  • 2 x End Caps
  • 1 x Ø110mm Vertical Outlet Connector
  • Installation instruction


Length: 1012mm
Width: 125mm
Depth: 80mm
Invert: 75mm
Weight: 4kgs


Length 1 Metre


Finish Stainless Steel
