Designer ATHENA Internal Door Handle Pack Lever on Rose Dual Chrome Finish

Name: Designer ATHENA Internal Door Handle Pack Lever on Rose Dual Chrome Finish
Brand: Excel
SKU: XH/3675PK

Code:

XH/3675PK

Brand:

Excel

MATERIAL: Zinc AlloyTYPE: Door handle packsSTYLE: Modern straight bar lever on rose, passage or privacyFINISH: Dual Chrome Finish (Polished Chrome Plated and Satin Chrome Plated)FIXINGS: All fixing screws and spindle connector rod includedClick here to...Read More

View full product details

View questions about this product

Create a wishlist

Rena Alexander-Barrington

Description

MATERIAL: Zinc Alloy

TYPE: Door handle packs

STYLE: Modern straight bar lever on rose, passage or privacy

FINISH: Dual Chrome Finish (Polished Chrome Plated and Satin Chrome Plated)

FIXINGS: All fixing screws and spindle connector rod included

Click here to view the complete designer range

Description

High quality dual polished and satin chrome finish
Each set comprises two lever handles on sprung 53mm diameter concealed screw on rose, split spindle and bolt through fixings
A steel grub screw secures the spindle to the lever handle, providing added strength
Handle sets are individually boxed to protect during delivery
10 year mechanical guarantee
Part of the Excel DESIGNER range

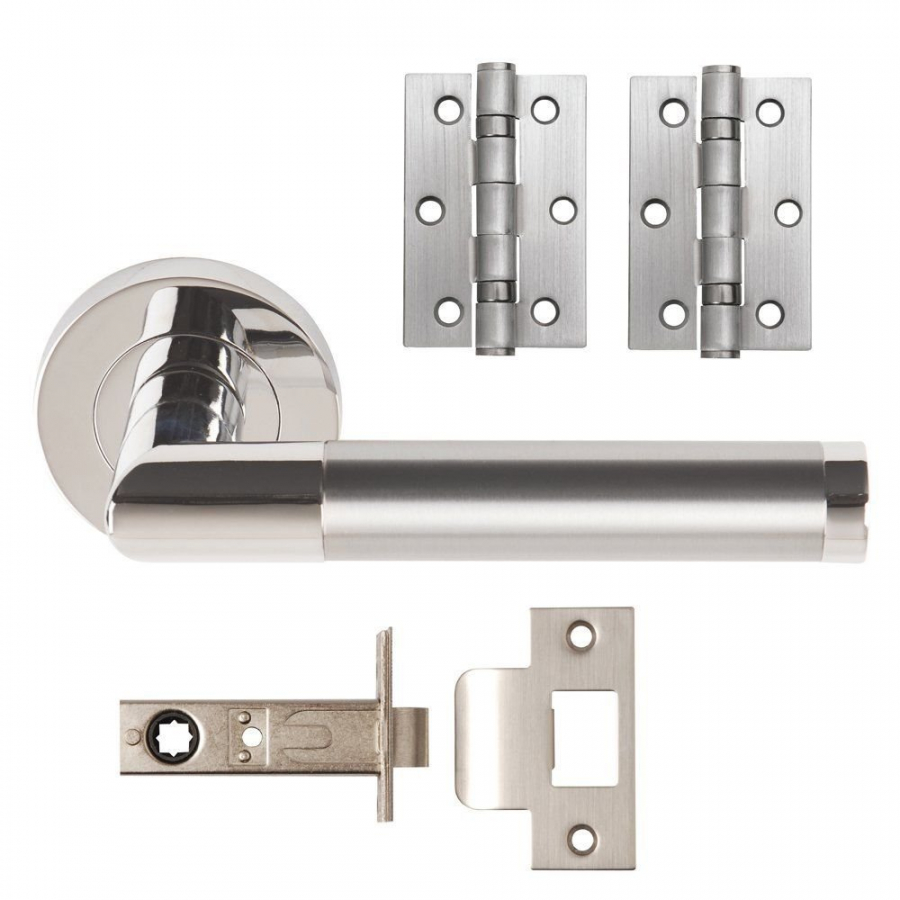

These door handle packs include everything you need for completely furnishing your door.

Athena passage pack:

1 x Athena Internal Door Handle Pair Lever on Rose (Dual Chrome Finish Polished Chrome Plated and Satin Chrome Plated)
1 x Arc heavy duty latch (57mm backset)
1 x Pair of 3" high quality ball bearing hinges (Satin chrome finish)

Athena privacy pack:

1 x Athena Internal Door Handle Pair Lever on Rose With a Privacy Lock (Dual Chrome Finish Polished Chrome Plated and Satin Chrome Plated)
1 x Arc heavy duty latch (57mm backset)
1 x Pair of 3" high quality ball bearing hinges (Satin chrome finish)

The Privacy 'Push Button' Handles:

The privacy handle features a unique push button function instead of turns on the handle rose.
Compatible tubular latch with striker plate included in the pack
Simply press the button to lock the handle and then operate lever handle as normal to release the lock. Features an emergency release for external access.
An easy to install push solution for locking bathroom doors.
For a privacy handle instruction video Click here

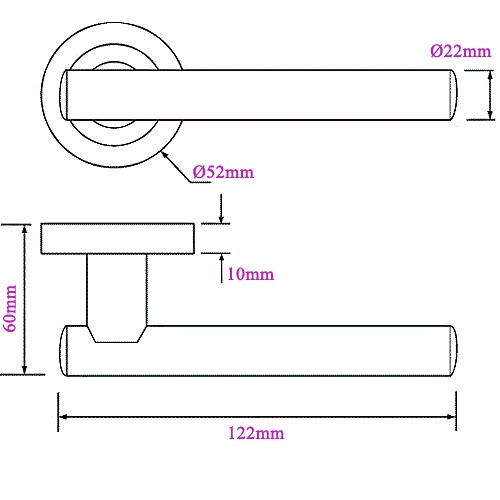

Dimensions

Please note dimensions may vary by +/- 1mm.

Rose Diameter: 52mm

Lever Length: 122mm

Lever Projection: 60mm

Rose Depth: 10mm

Box Dimensions: 160 (L) x 120 (W) x 60mm (D)

Technical Information

This is a premium product which has been manufactured to the highest standards in a quality controlled and certified environment. These products are typically of European origin and have been manufactured, finished and packaged using the latest technology.

CLEANING: We recommend periodic cleaning with a soft damp cloth to remove all surface deposits. Adding a wax polish after cleaning will help to maintain the appearance and protect the surface from corrosive deposits.

Specification

Details

Handle Type Passage
Privacy
