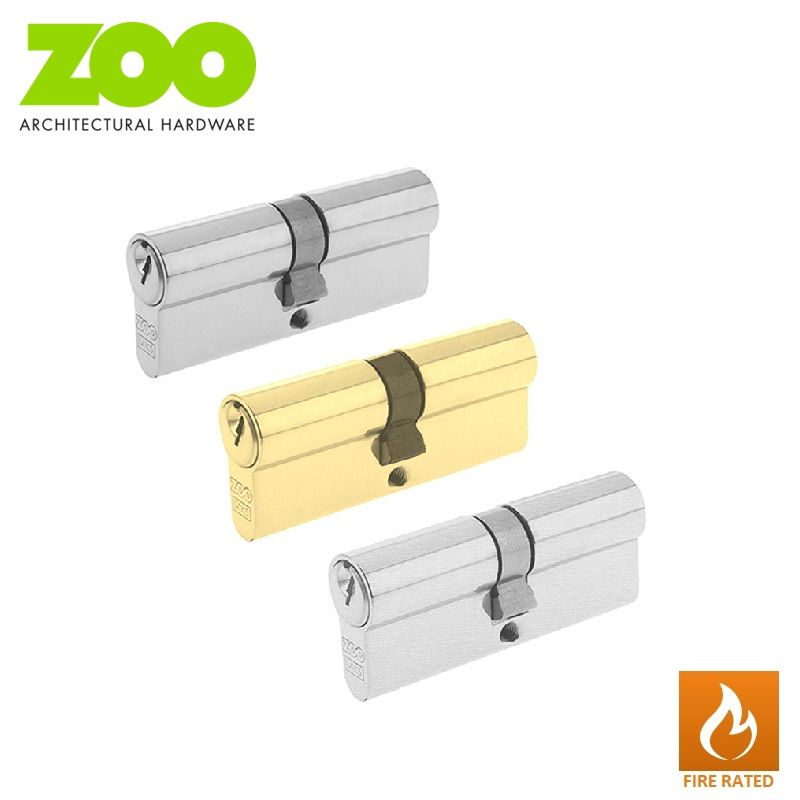

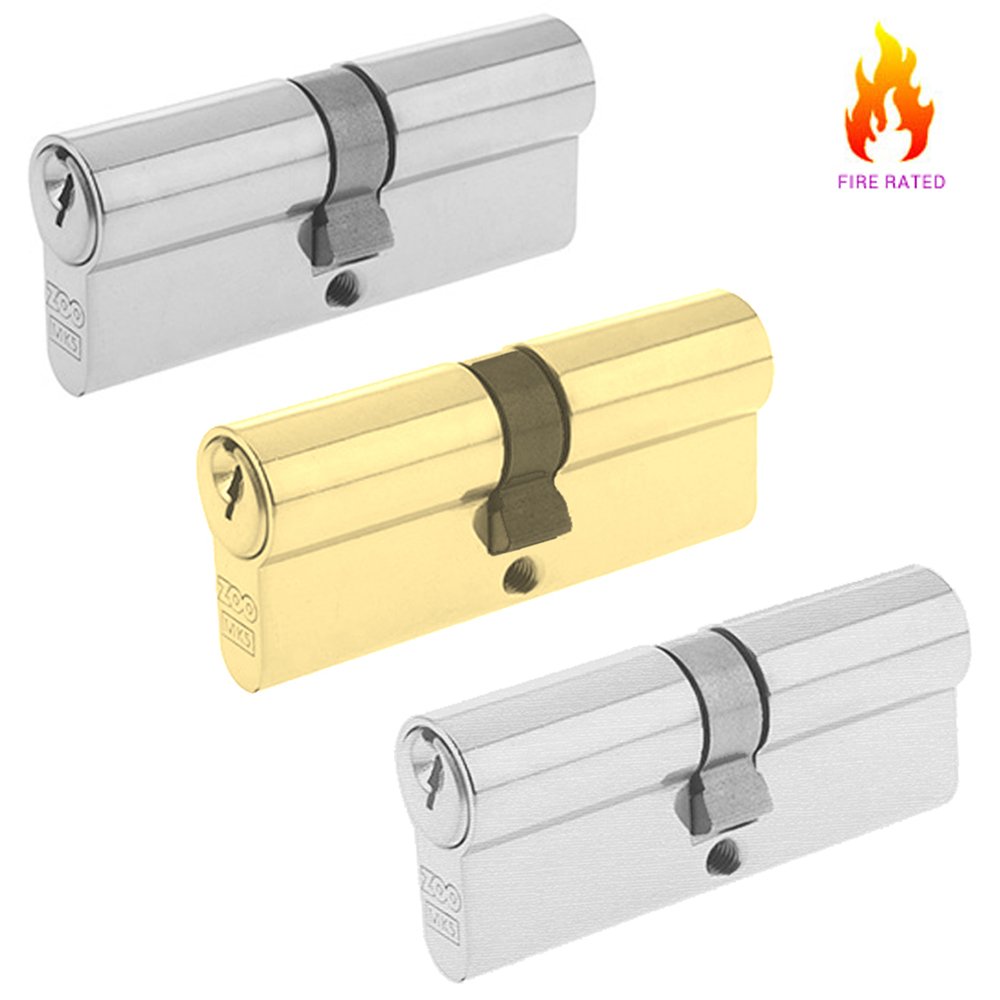

Euro Cylinder Fire Rated 70mm 35/35

Name: Euro Cylinder Fire Rated 70mm 35/35
Brand: Zoo Hardware
SKU: Z/ZEP70D

Code:

Z/ZEP70D

Brand:

Zoo Hardware

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: BrassTYPE: Fire rated double contract euro lock cylinderSTYLE: Key lockable cylinderFIXINGS: 1 x connecting screw includedADDITIONAL FEATURES: 5 pin lock, three keys included, fire rated Description Compact euro cylinder barrel in 30/10/30...Read More

View full product details

View questions about this product

Create a wishlist

albert kelly

Description

MATERIAL: Brass

TYPE: Fire rated double contract euro lock cylinder

STYLE: Key lockable cylinder

FIXINGS: 1 x connecting screw included

ADDITIONAL FEATURES: 5 pin lock, three keys included, fire rated

Description

Compact euro cylinder barrel in 30/10/30 (35/35) configuration
Key access from both sides for internal control
5 hardened pin lock for standard security
Keyed Alike - locks operated by the same key
Comes supplied with one set of three keys (Nickel finish)
Rated for use on 30/60 minute fire doors
Anti-drill and anti-pick for added security
Supplied with fixing bolt
Individually boxed
Conforms to latest BS EN 1303:2005 standard
12 month manufacture guarantee

Dimensions

Configuration: 35/35 - 35mm/35mm (edge to fixing hole to edge)

Overall barrel length: 70mm

Barrel height: 33mm

Barrel width: 17mm

Fixing bolt hole diameter: 5mm

Technical Information

For example: 35/35 lock is A = 35mm / B = 35mm

How do I measure and order a door cylinder?

The size of cylinder you need is determined by the thickness of the door and handle combination, for this reason there are many sizes available and you will need to be careful that you measure the cylinder accurately (one size will not fit all).

It is possible to measure a door cylinder in the door, but to be sure it's best to remove it first.

Measurement A: measure from the keyhole end to the middle of the central screw hole (e.g. 35 mm).

Measurement B: measure from the middle of the central screw hole to the end (e.g. 35 mm).

Total cylinder length = Measurement A + Measurement B

How do I fit a new door cylinder?

1. Open the door and unscrew the one fixing screw which is located on the lock faceplate (the strip of metal the full length of your door), in line with the bottom of the door cylinder.

2. Put the key into one side whilst holding the other side firm.

3. Turn the key and the cylinder should slide out, if it does not turn the key in the opposite direction and the cylinder should slide out.

4. Take your new cylinder lock and insert the new key and turn it until the cam is inline with the body of the cylinder. Insert the new cylinder into position and replace the fixing screw.

5. If the door cylinder is offset (i.e. 40/60, 30/50 etc) ensure the offset is protruding from the correct side. Check the operation of the lock before you close the door.

How far should a door cylinder protrude out of the door handle?

Your new door cylinder should protrude between 2mm and 5mm from the handle back plates, but due to the overall lengths of cylinders available this is not always possible. It is most sensible to go for exactly the same size as you are replacing (unless your old cylinder was protruding excessively).
