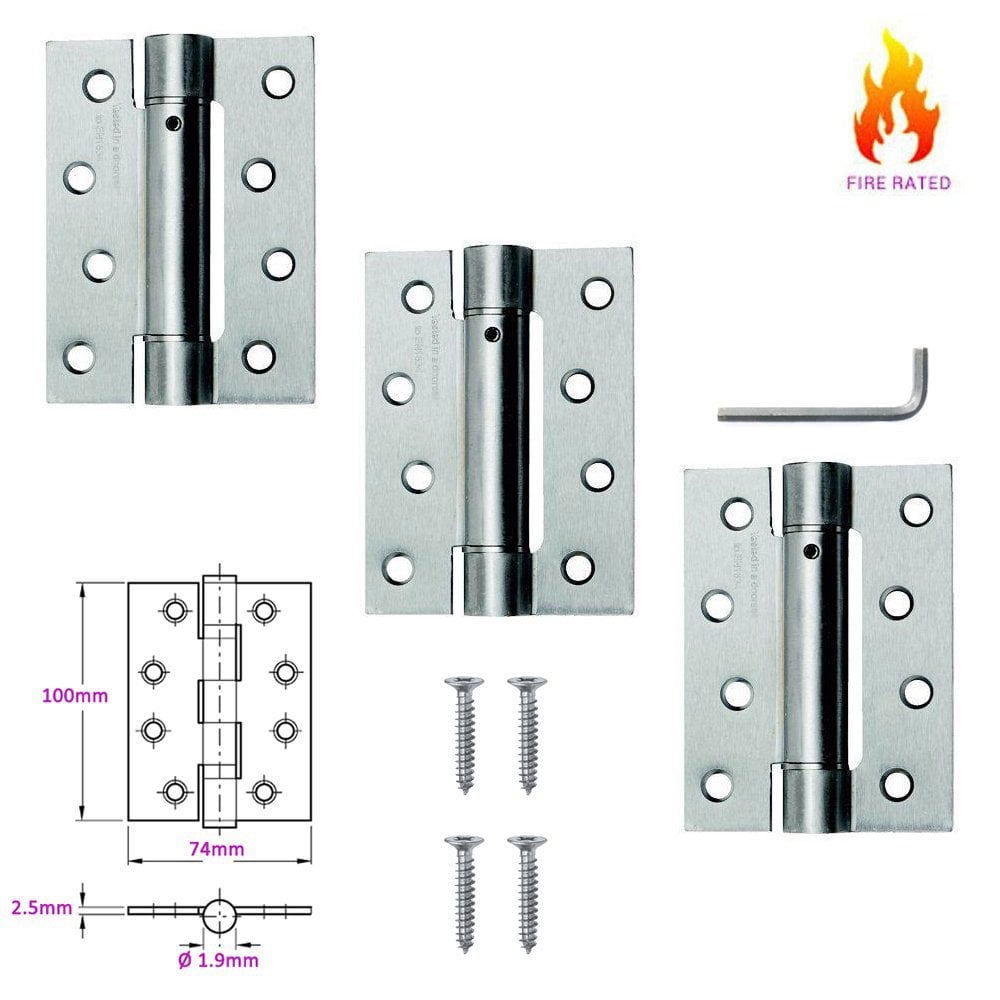

Excel 3 x Singles Fire Door Hinges Single Action Residential Adjustable Self Closing Spring SCP

Code:
DH000468
Brand:
Free UK Delivery

Recommended for internal doors only and available in a choice of multiple modern finishes, Excel's pack of three ratchet adjustable single action spring hinges are suitable for domestic and residential installations. The single-action spring allows the door to self-close, and ...Read More

Create a wishlist

"Very happy with this door."

John O'Hagan

Description

Recommended for internal doors only and available in a choice of multiple modern finishes, Excel's pack of three ratchet adjustable single action spring hinges are suitable for domestic and residential installations. The single-action spring allows the door to self-close, and you can adjust the tension using an Allen hex key.

The hinges are fire tested to BS EN 1634 standards and are 30 minutes fire tested. Perfect for use on fire doors and heavy internal doors weighing up to 60kg, these hinges are not, however, recommended as an alternative to a fire-rated overhead door closer to certified fire doors. It is also advised that all three hinges are used per door.

Features & Benefits: Excel 3 x Singles Fire Door Hinges Single Action Residential Adjustable Self Closing Spring SCP

  • Set of three hinges
  • For internal domestic and residential doors where self-closing is required
  • Fully adjustable tension with Allen hex key
  • Spring hinge provides a smooth door closing action
  • Fire tested
  • Perfect for use on fire doors and heavy internal doors weighing up to 60kg

Installation

  • 1. First, fit the first hinge 250mm from the top of the door and make sure the adjustment hole is on the top.
  • 2. Then, position the bottom hinge 250mm from the bottom of the door.
  • 3. Position the third hinge in the middle of the door between the top and bottom hinges.
  • 4. Place hex key into locator hole at the top of the hinge barrel and crank round until the desired tension is reached. There are six tension positions.
  • 5. Place the pin into the hole. Make sure you push it all the way in.
  • 6. Repeat step 5 with the bottom hinge; make sure you make tension the same as the top hinge by cranking round to the same tension hole.

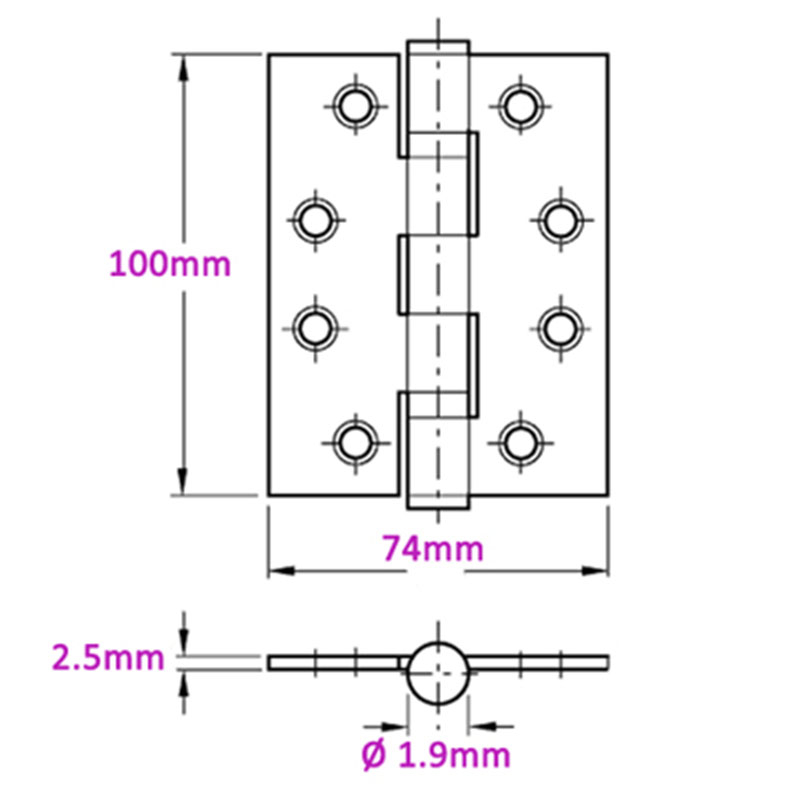

Product Specification

  • Height: 100 mm
  • Width: 74 mm
  • Leaf Thickness: 2.5 mm
  • Weight: 0.285 kg
  • Material: Steel
  • Finish: Satin Chrome

Standards & Certification

  • Fire Rating: Fire Tested (BS EN 1634 Standard - 30 Minutes).

Please note:

  • Fitting instructions, screws, three hex keys and pins are included.
  • Leave the middle hinge un-sprung.

Details

Finish Satin Chrome Plated

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Whats the maximum weight of the door that the hinges will support?

Answer:

These hinges support doors up to a maximum weight of 60KG
