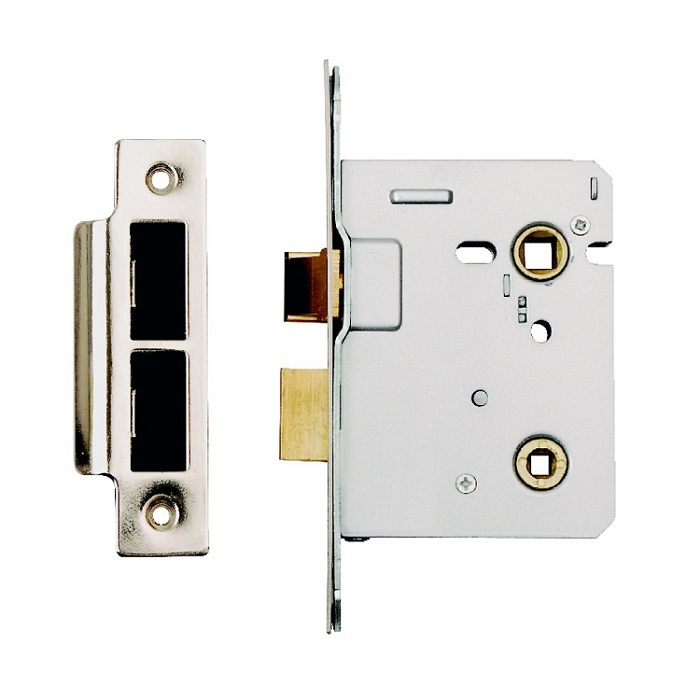

Excel Bathroom Door Mortice Bolt Through Fire Rated Lock 76mm Satin Stainless Steel

Code:
DH002192
Brand:
Free UK Delivery

Ideal for use with bathroom privacy thumb turn and release sets Available in 63mm and 76mm case depth sizes Satin Stainless Steel or Polished Stainless Steel finish Meets EN12209-2003 standard which means its suitable for use on fire doors, tested in a fire door to EN1634...Read More

Create a wishlist

"The shed doors"

JT

Description

  • Ideal for use with bathroom privacy thumb turn and release sets
  • Available in 63mm and 76mm case depth sizes
  • Satin Stainless Steel or Polished Stainless Steel finish
  • Meets EN12209-2003 standard which means its suitable for use on fire doors, tested in a fire door to EN1634-1
  • CE Rated
  • 12 month manufacture guarantee


MATERIAL: Steel
TYPE:
 Bathroom Door Fire Rated Lock
STYLE: Mortice Bolt Through
FINISH: Satin Stainless Steel
FIRE RATED: Tested on a fire door to BS EN 16340-1
FIXINGS: 20mm wood screw fixings included

Pack contents:

1 x Bathroom Lock
1 x Face Plate
1 x Strike Plate
1 x Dust Socket
4 x Screws

Dimensions

76mm Lock

Case height: 102mm
Case width: 13mm
Case depth:
 76mm

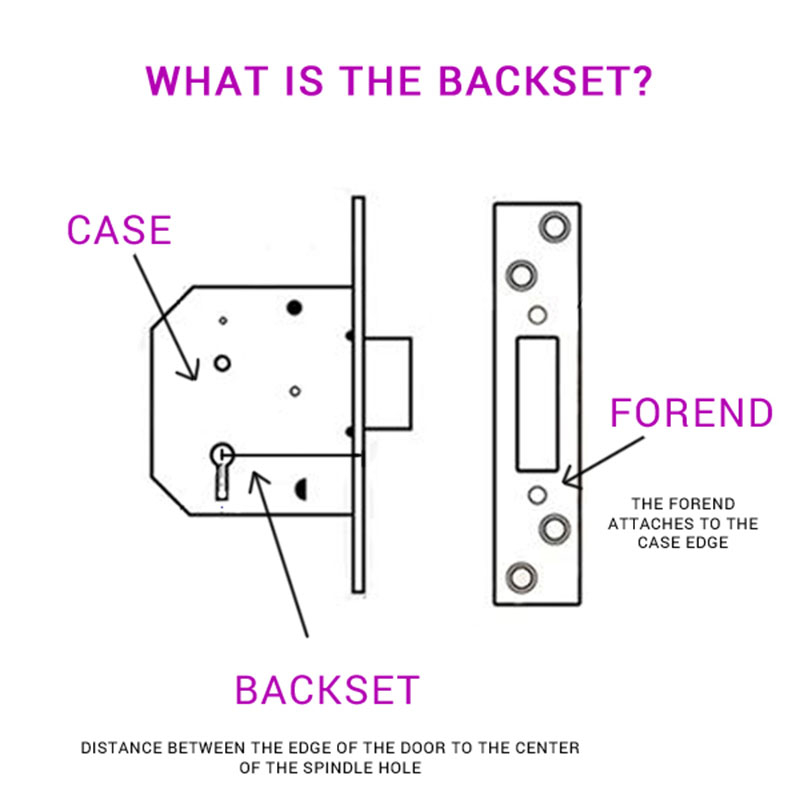

Backset measurement: 55mm
Forend height: 155mm
Forend width: 22mm
Strike plate height: 114mm
Strike plate width: 38mm
Handle spindle hole diameter: 8mm
Thumbturn spindle hole diameter: 5mm
Screw length: 20mm

Technical Information

This is a premium product which has been manufactured to the highest standards in a quality controlled and certified environment. These products are typically of European origin and have been manufactured, finished and packaged using the latest technology.

Dimensions

Size 76mm

Details

Finish Satin Stainless Steel
