Excel Euro Profile Cylinder Mortice Dead Lock Case in Nickel Plated 76mm

Code:
DH002159
Brand:
Free UK Delivery

This euro profile dead lock is available in two sizes to fit your door. A reliable lock that can provide many years of security. This item includes the dead lock casing but not the euro profile lock cylinder (sold separately). Available in 63mm and 76mm case depth size...Read More

Create a wishlist

"Informative helpful very good pric…"

Steven

Description

This euro profile dead lock is available in two sizes to fit your door. A reliable lock that can provide many years of security. This item includes the dead lock casing but not the euro profile lock cylinder (sold separately).

  • Available in 63mm and 76mm case depth sizes
  • Features two roller anti drill bolts in the lock
  • Enclosed box staple
  • Lock Cylinder not included
  • Compatible with any Euro Profile Cylinder
  • Single key rotation
  • Nickel Plated or Polished Brass finish
  • EN12209-2003: Suitable for use on fire doors, tested in a fire door to EN1634-1
  • CE Rated
  • 12 month manufacture guarantee



PLEASE NOTE: This item does not include retaining screws to hold euro cylinder in place. However all euro cylinders are supplied with this screw.

MATERIAL: Steel
TYPE:
 Euro Profile Dead Lock Case
STYLE: Mortice cylinder single key rotation
FINISH: Nickel Plated
FIXINGS: 20mm wood screw fixings included
ADDITIONAL FEATURES: Includes matching keep plate, lock cylinder not included

Dimensions

76mm Dead Lock
Case height: 76mm
Case width: 60mm
Case depth:
 13mm

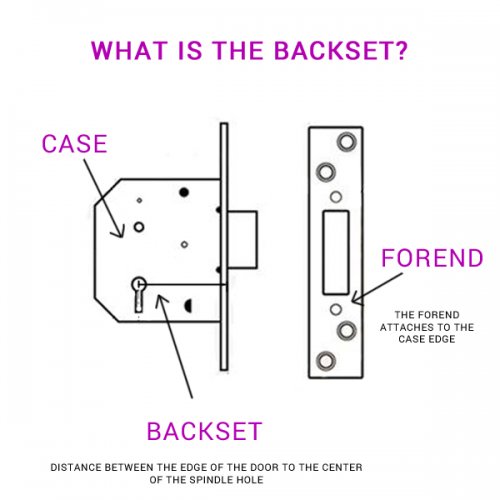

Backset measurement: 55mm
Forend height: 113mm
Forend width: 22mm
Strike plate height: 75mm
Strike plate width: 25mm
Width of bolt when locked: 12mm
Keyhole to edge: 45mm

Technical Information

This is a premium product which has been manufactured to the highest standards in a quality controlled and certified environment. These products are typically of European origin and have been manufactured, finished and packaged using the latest technology.

Dimensions

Size 76mm

Details

Finish Nickel Plated
