Excel GUARDSMAN Grade 304 Stainless Steel Door Pull Handle 19mm (Bolt Through) (400mm)

Name: Excel GUARDSMAN Grade 304 Stainless Steel Door Pull Handle 19mm (Bolt Through) (400mm)
Brand: Excel
SKU: XL003821
Price: 9.44 GBP
Availability: Discontinued

Code:

XL003821

Brand:

Excel

Free UK Delivery

A 19mm diameter door pull handle with bolt through fixing points and made from high quality 304 grade stainless steel. This Guardsman style handle is available in a modern satin stainless steel finish. Supplied as a single pull handle (handles are sold individually) an...Read More

View full product details

View questions about this product

Create a wishlist

Ann Oulton

Description

Supplied as a single pull handle (handles are sold individually) and comes complete with bolt through fixings
Straight bar tubular cylindrical tube handle
Made from high quality grade 304 stainless steel

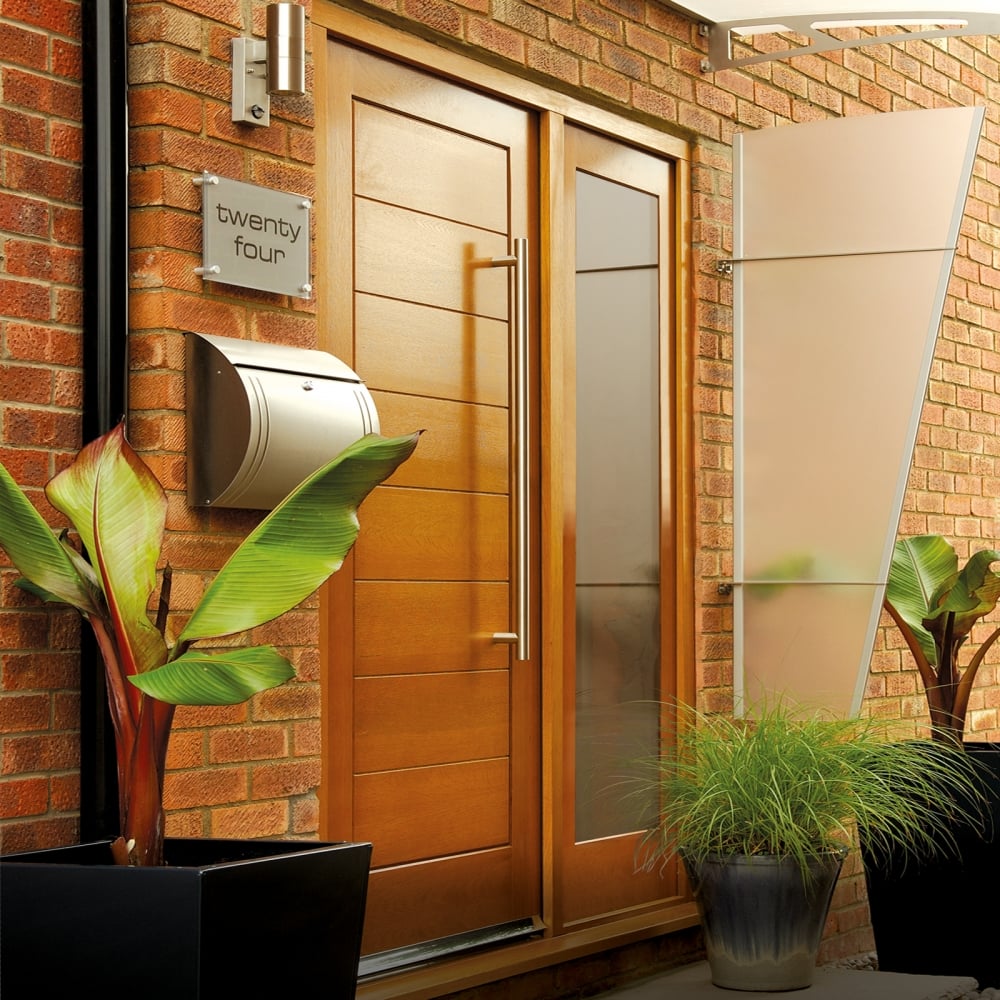

Suitable for external use on front doors, pairs and entrance sets - regular maintenance of product is required (see technical information for further maintenance instructions)
Can be converted to a back to back pair of handles (handle on both sides) using compatible fixing kits (sold separately) and a pair of handles per door
For use in most environments and especially where a hard wearing, regularly used handle is needed
Brass fixing point inserts and clear washers attach to the handle for door protection and a strong, firm fixing
Each fixing point is also secured with a grub screw to ensure no rattles and the best fixing

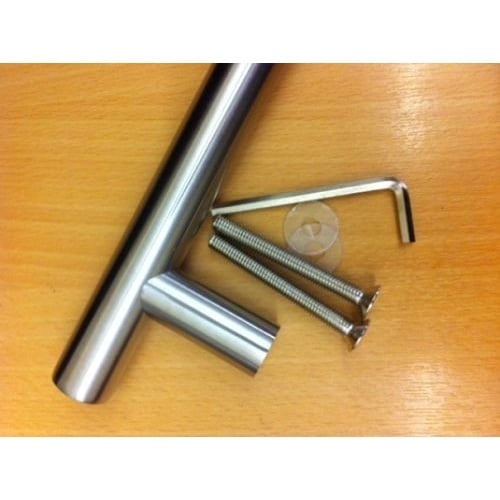

2 x 65mm x 9mm M8 rear fixing bolts and a range of different size hex keys are included with each handle
Matching roses are available (sold separately)

MATERIAL: Grade 304 Stainless Steel
TYPE: Large Door Pull Handle
STYLE: 'Guardsman' T Bar design for external use
FINISH: Satin stainless steel
FIXINGS: Bolt through fixings, plastic washers and range of hex keys are included

Dimensions

Please note all dimensions are subject to a measurement tolerance of +/- 3mm

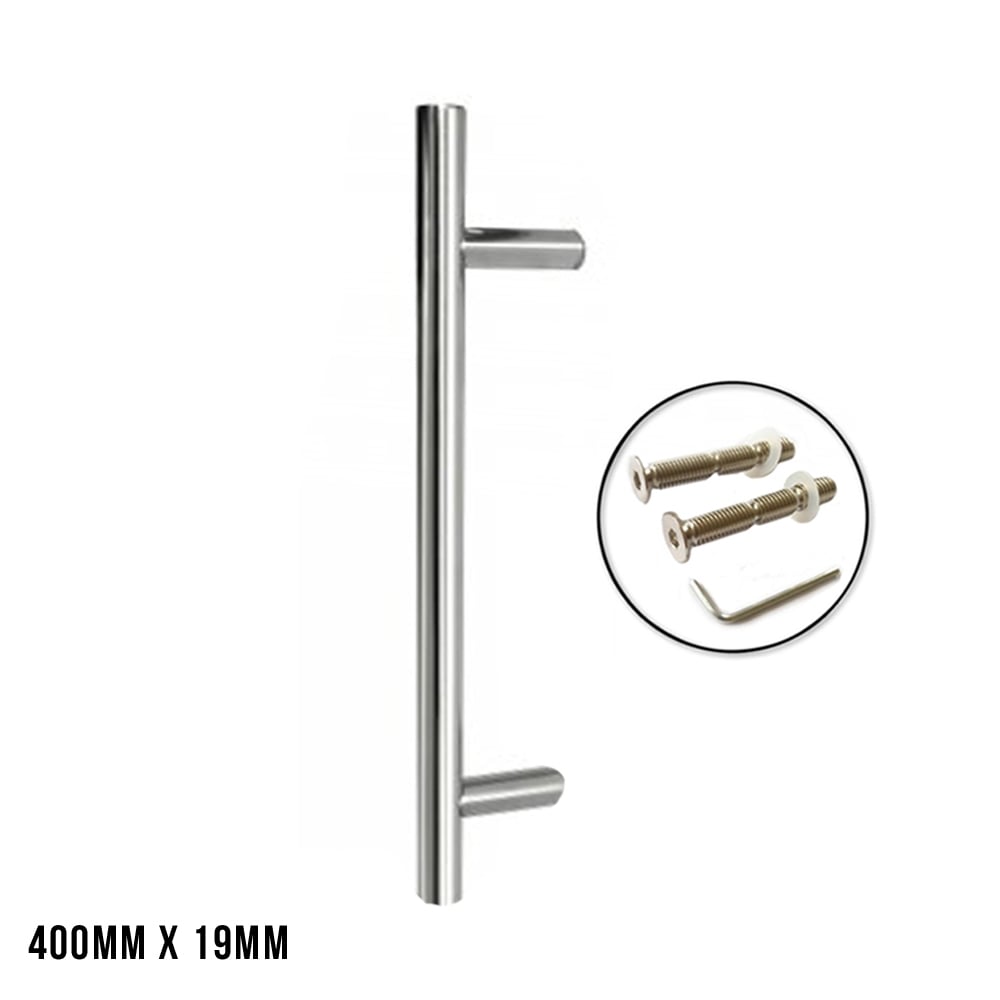

400mm x 19mm

OVERALL LENGTH: 400mm
HOLE CENTRE TO CENTRE: 300mm
HANDLE TUBE THICKNESS: 19mm
PROJECTION/DEPTH: 60mm

Technical Information

MAINTENANCE: Like all metal based products ironmongery requires regular cleaning to prevent deposits from accumulating and damaging the items appearance. The following instructions will enable you to prolong the lifetime of the finish on these products.

STAINLESS STEEL: Whilst stainless steel is a strong durable material, if not maintained regularly, show signs of rusting. We therefore recommend the following cleaning procedures:

Clean regularly with a dry cloth or duster. Periodic washing with warm soapy water dried with a clean cloth.

Specification

Dimensions

Size 400mm x 19mm
