Excel Stainless Steel Sliding Pocket Door Bathroom Hook Latch Lock (Square)

Name: Excel Stainless Steel Sliding Pocket Door Bathroom Hook Latch Lock (Square)
Brand: Excel
SKU: XH/2130
Price: 27.08 GBP
Availability: LimitedAvailability

CLEARANCE

Code:

XH/2130

Brand:

Excel

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

This round or square bathroom door lock is to be used on sliding doors. The lock is engaged from the inside and has a coin slot release on the outside in case of emergency. Satin stainless steel finish that will be durable in a bathroom setting Suitable for sliding doors ... Read More

View full product details

Ask a question about this product

Create a wishlist

Description

This round or square bathroom door lock is to be used on sliding doors. The lock is engaged from the inside and has a coin slot release on the outside in case of emergency.

Satin stainless steel finish that will be durable in a bathroom setting
Suitable for sliding doors
Retractable latch
Adjustable strike box to stop possible rattling

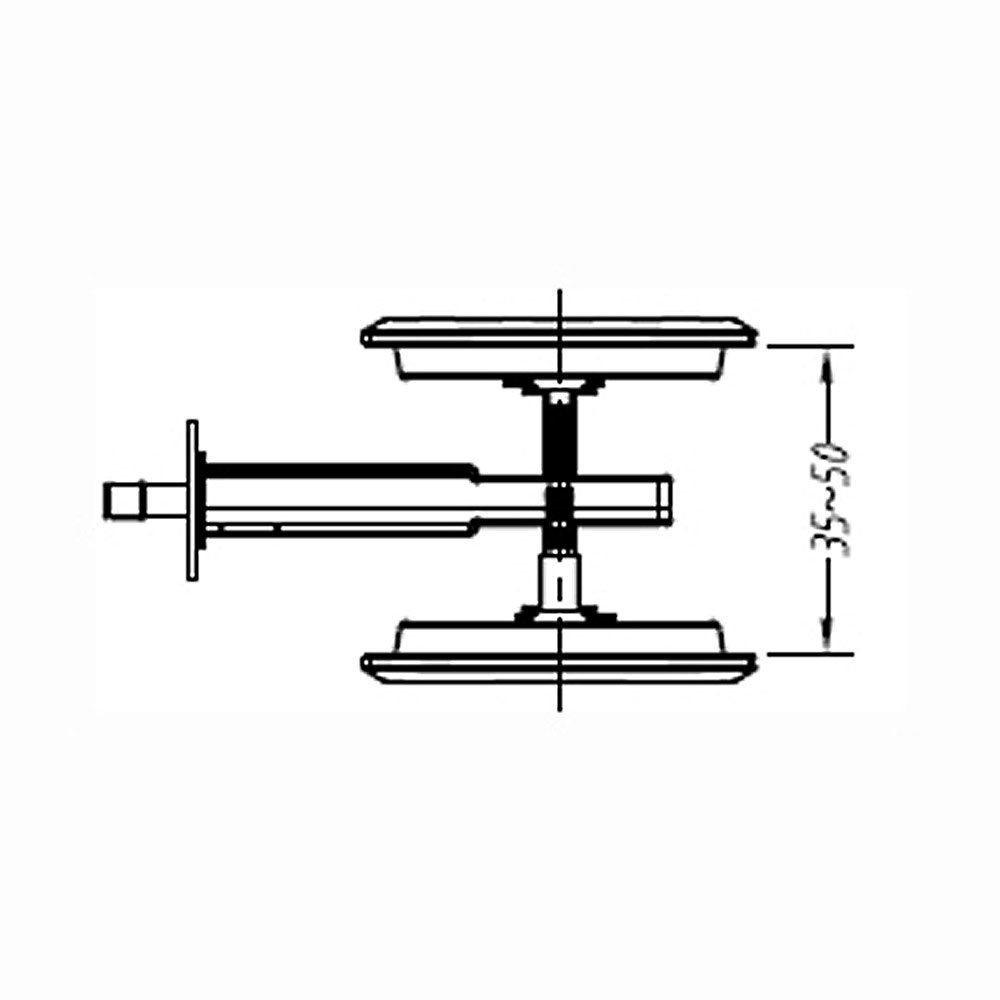

For 35mm - 44mm thick
Supplied complete with fixings and spindle bar
12 month manufacturer guarantee

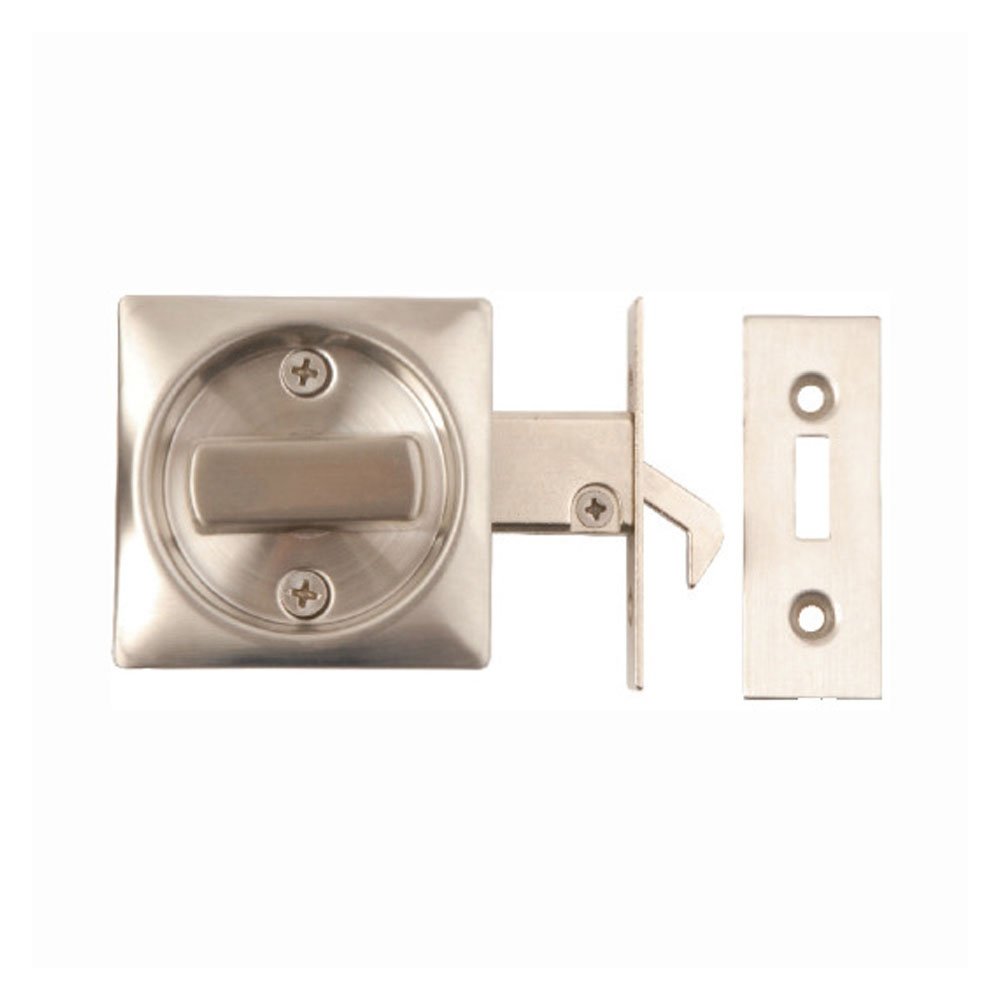

The set includes a small finger pull handle (this is recessed into the sliding door and is used to pull the door out of the frame to slide it closed), the turn and release, a bathroom lock (for locking the door), a spindle and a strike plate/box (for fitting to the opposite side of the door frame - the strike box is adjustable so that it can be fitted tightly to stop any possible rattling).

MATERIAL: Stainless Steel
TYPE: Bathroom door lock
STYLE: Sliding and pocket door hook lock
FINISH: Satin Stainless Steel
FIXINGS: M4 bolt through fixings and 25mm wood screws included

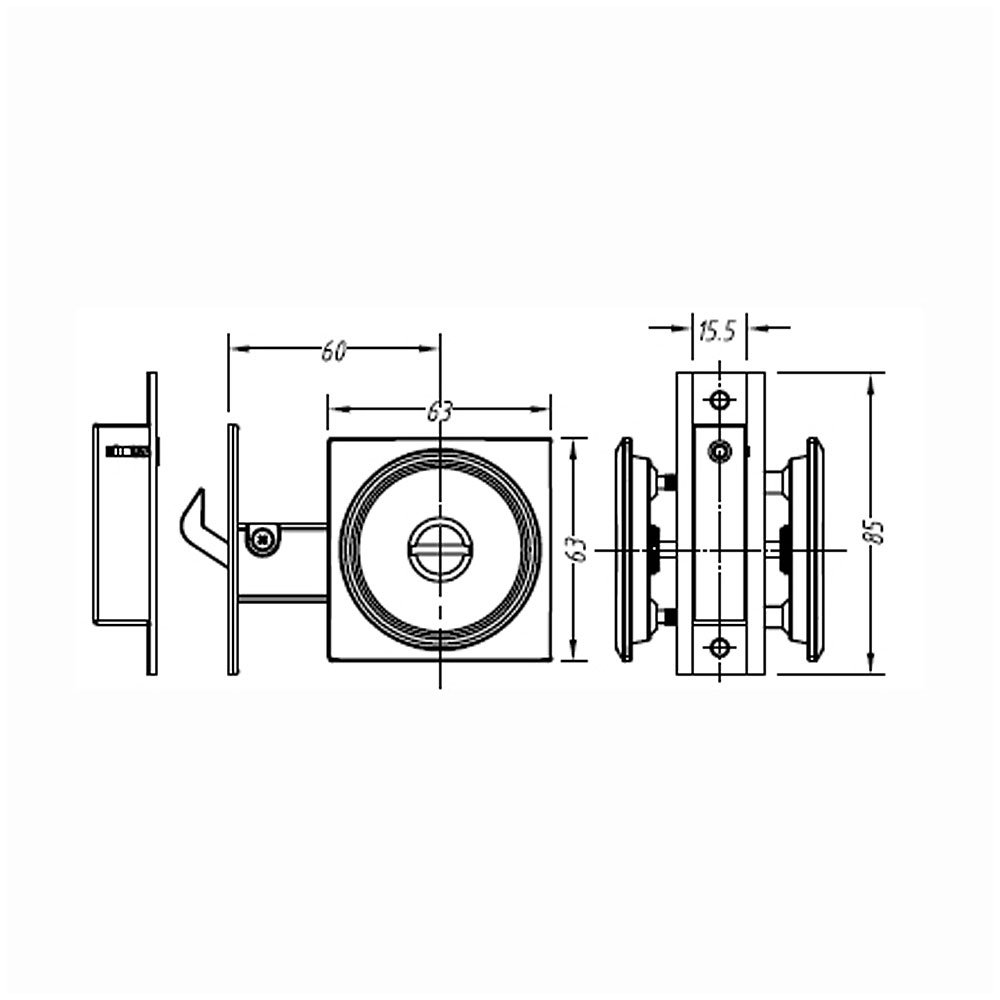

Dimensions

Weight: 0.373kg
Square Bathroom Lock

Keep Height: 85mm
Keep Width: 25mm
Keep Depth: 18mm
Keep hole to hole fixing: 70mm

For end plate height: 70mm
For end plate width: 25mm
For end plate hole to hole fixing: 40mm

Flush recessed turn and release diameter (Square): 63mm
Flush recessed turn and release depth (Square): 10mm

Spindle centre to backset: 60mm

Pull knob diameter: 25mm
Pull knob projection: 20mm
Overall projection: 53mm

Technical Information

These quality products which have been made with precision tools and processes have also been made by hot stamping, pressure die-casting and have high quality finishes.

CLEANING: We recommend periodic cleaning with a soft damp cloth to remove all surface deposits. Adding a wax polish after cleaning will help to maintain the appearance and protect the surface from corrosive deposits.
