Glass Door Canopy with Grade 304 Stainless Steel Fixings 120cm x 90cm

Product Summary

MATERIAL: Glass and Stainless Steel

TYPE: Glazed door canopy

STYLE: Modern flat awning design

FINISH: Clear laminated glass

FIXINGS: Grade 304 Brushed Stainless Steel brackets, wall anchor fixings and hex keys included

ADDITIONAL FEATURES: CE rated and conforms to EN 12600:2002 standards

Description

This modern style glazed door canopy has been constructed with high quality grade 304 stainless steel and is pre-filled with strong 12mm laminated tempered safety glass. It is supplied with all the required screws and fixings to fit above your door to provide a stylish finishing touch and protection from all weather elements.This item is not recommended for coastal locations due to the corrosive nature of Saline and Chloride exposed environments.

• This glass canopy helps to create a unique and elegant focal impression for any home doorway and entrance
• All components are of high quality and durable construction
• Rods and brackets are made of grade 304 stainless steel with a brushed finish, providing a high level of corrosion resistance for exposed locations (excluding coastal areas)
• The glass awning is made up of two bonded sheets of clear 6mm PVB laminated tempered safety glass
• Suitable for domestic or commercial applications

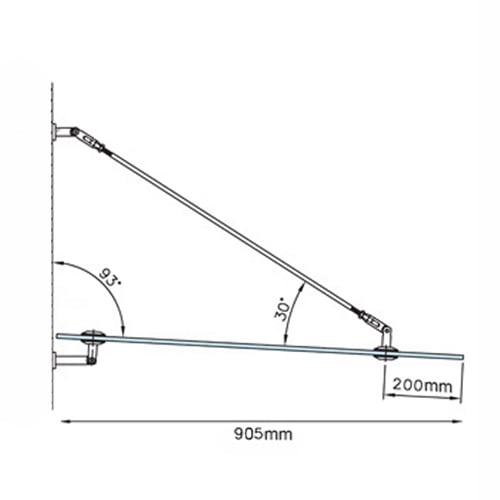

• Mounting is adjustable between 90 degree and 95 degree according to preference
• The 900mm projection is enough to provide adequate cover and protection for most external doors
• Also suitable for covering exposed windows as well as providing smoking and general shelters for offices and public buildings
• CE rated
• Conforms to impact resistance and EN 12600:2002 standards
• ECM certified
• Easy to clean and maintain - the angle of the canopy can be adjusted to allow water to flow through easily
• Simple to install and instructions included
• May require seal to masonry (not included)

BOX CONTENTS:

1 x Tempered safety clear glass awning

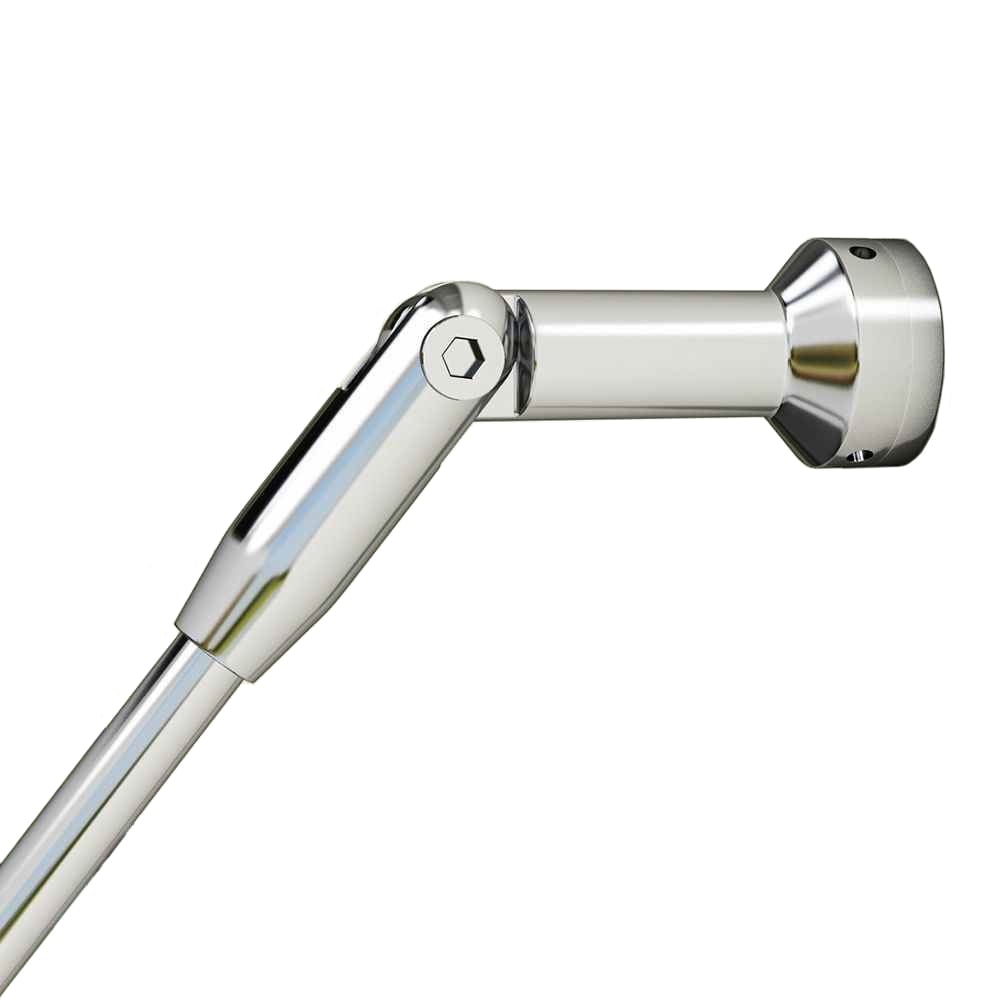

2 x Grade 304 stainless steel M10 threaded support rods

2 x Grade 304 stainless steel wall/glass support brackets

2 x Grade 304 stainless steel wall support brackets

2 x Grade 304 stainless steel glass support brackets

1 x Hex key set

1 x Illustrated user instructions

Frequently Asked Questions

Q: What is PVB laminated glass?

A: Polyvinyl butyral (or PVB) is a resin mostly used for applications that require strong binding, optical clarity, adhesion to many surfaces, toughness and flexibility.

Q: What does 'grade 304 stainless steel' mean?

A: 304 stainless steel has a higher corrosion resistance than regular steel and it is not very electrically or thermally conductive and is non-magnetic. It is not recommended for use in exposed coastal locations as well as areas where chemical processing and de-icing salts are common. For these areas we recommend marine grade 316 stainless steel.

Q: What does 'Standard BS EN 12600:2002' mean?

A: BS EN 12600:2002 specifies a pendulum impact test method for single flat panes of glass for use in buildings. The test is intended to classify flat glass products into three principal classes by performance under impact and by mode of breakage.

Q: What does 'ECM certified' mean?

A: ECM certification is the process of certifying that a certain product or system have passed performance tests and quality assurance tests, and meet qualification criteria reported in directives, regulations, or schemes.

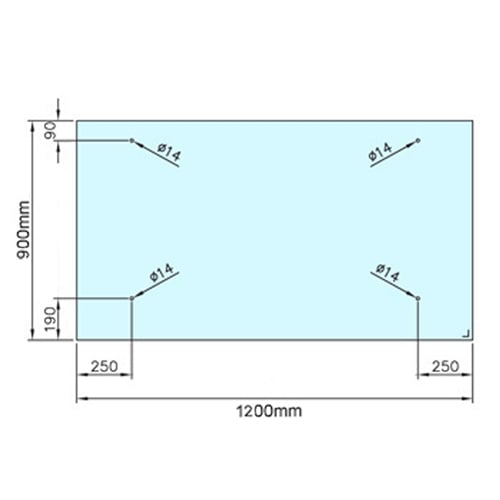

Dimensions

Please note that all dimensions are subject to a measurement tolerance of +/- 3mm

CANOPY WIDTH: 1200mm

CANOPY PROJECTION: 900mm

OVERALL GLASS THICKNESS: 12mm

EACH GLASS SHEET THICKNESS: 6mm (these two sheets are bonded together)

STEEL ROD LENGTH: 1000mm

WEIGHT: 42kg
