Heavy Duty Black Suffolk Gate Latch

Code:
PARENT-AP/50/4S

This item is out of stock and not available to purchase.

MATERIAL:Malleable ironTYPE:Heavy duty suffolk latchSTYLE:Thumb operateddoor or gate catchFINISH:Bright zinc plated, black powder coated or galvanized finishFIXINGS:25mm flat head wood fixing screws includedDescription A heavy duty suffolk style latch set for use on doors or... Read More

Create a wishlist

"Excellent gate"

Mike L

Description


MATERIAL:Malleable iron

TYPE:Heavy duty suffolk latch

STYLE:Thumb operateddoor or gate catch

FINISH:
Bright zinc plated, black powder coated or galvanized finish

FIXINGS:
25mm flat head wood fixing screws included

Description

  • A heavy duty suffolk style latch set for use on doors or sheds

  • Available in three finishes, bright zinc plated, black powder coated, galvanized

  • Suitable for indoor or outdoor use

  • Comes with standard size thumb piece

  • Rectangular handle backplate for a industrial style

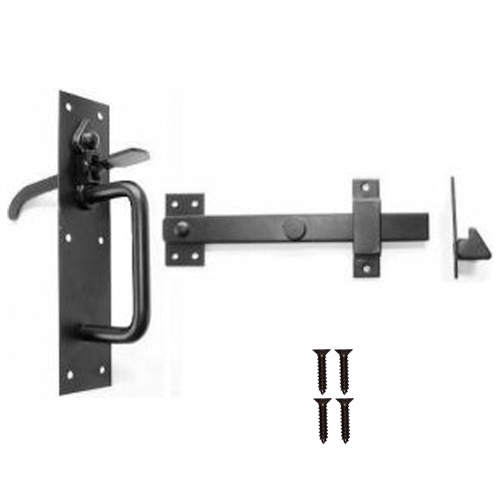

  • Set includes handle with thumb operated finger lock on a rectangle backplate, latch bar, bracket and keep

  • This gate latch can be fitted to the left or right hand side of the door or gate and can be manually reversed simply by re configuring latch components

  • The thumb latch lifts the latch bar from the latch bracket


Dimensions


Latch Bracket & Keep


Height:
78mm

Hole centre to hole centre: 65mm

Width:23mm

Thickness:2mm

Projection of bracket:30mm

Projection of keep:18mm



Thumb operated handle


Height:
218mm

Handle Width:12mm

Handle backplate width:51mm

Handle depth:60mm

Hole centre to hole centre (furthest):192mm



Latch Lever


Length:
204mm

Width:22mm

Thickness:4mm

Latch Lever Base height: 58mm

Latch Lever Base Width:36mm



Finger Lock Lever


Projection From Handle:
76mm

Lock Lever Height:
30mm

Lock Lever Thickness: 3
mm

Finger Lock Button Width:
31mm

Weight: 0.700 Kg
