Hafele Standard 110 Degree Concealed Cabinet Hinges (Slide On) - No Mounting Plate

Price Match Guarantee

Give our sales team a call on 01752 422 501 and we'll happily beat any genuine advertised price.

Additional Information

Product code: HF/31200550
Estimated delivery: 1-2 Days
£2.99 inc vat
£2.49 ex vat
  • 1+ £2.99
    inc vat
    £2.49
    ex vat
  • 2 + £1.91 inc vat £1.59 ex vat
  • 10 + £1.07 inc vat £0.89 ex vat
Description
PDF Brochures
Delivery
Read More


MATERIAL:Steel

TYPE:Standard concealed cabinet hinge with slide on arm

STYLE:Full overlay mounting with 110 degree opening angle

FINISH:Nickel Plated

FIXINGS:3.5mm x 15mm countersunk hospa screws and pre-mounted euro screws with slide on two part mounting plates (if required and selected)



Description


PACK CONTAINS:

1 x Full overlay 110 degree cabinet hinge
1 x Cover cap
2 xCountersunkhospa3.5mm x 15mmscrews
1 x Mounting cruciform plate of your choice - 0mm or 3mm variants (optional)



  • These common concealed hinges are versatile and can be used on a wide range of cabinet furniture and kitchen cupboards

  • Full overlay mounting concealed cabinet hinge for single door fixing configurations

  • 110 degree cabinet door opening angle

  • Sprung hinge

  • 35mm diameter screw fixing cup with slide on arm

  • Supplied with Hafele branded cover caps to prevent unsightly fixings on your cabinet hinges for a tidy finish

  • Designed for use with cabinet door thicknesses of up to 22mm

  • Slide on model is easy to install and is compatible with slide on mounting plates only

  • Optional mounting plates can be selected - choose from 0mm or 3mm configuration two part pre-mounted euro screw mounting cruciform plates

  • Select the height configuration for the mounting plate based on your carcass or side panel thickness - 15mm requires a 3mm mounting plate height whilst a 18mm carcass requires a 0mm mounting plate
  • Slide on mounting plates heights can be adjusted +/- 2mm

  • Mounting plates are made from nickel plated steel

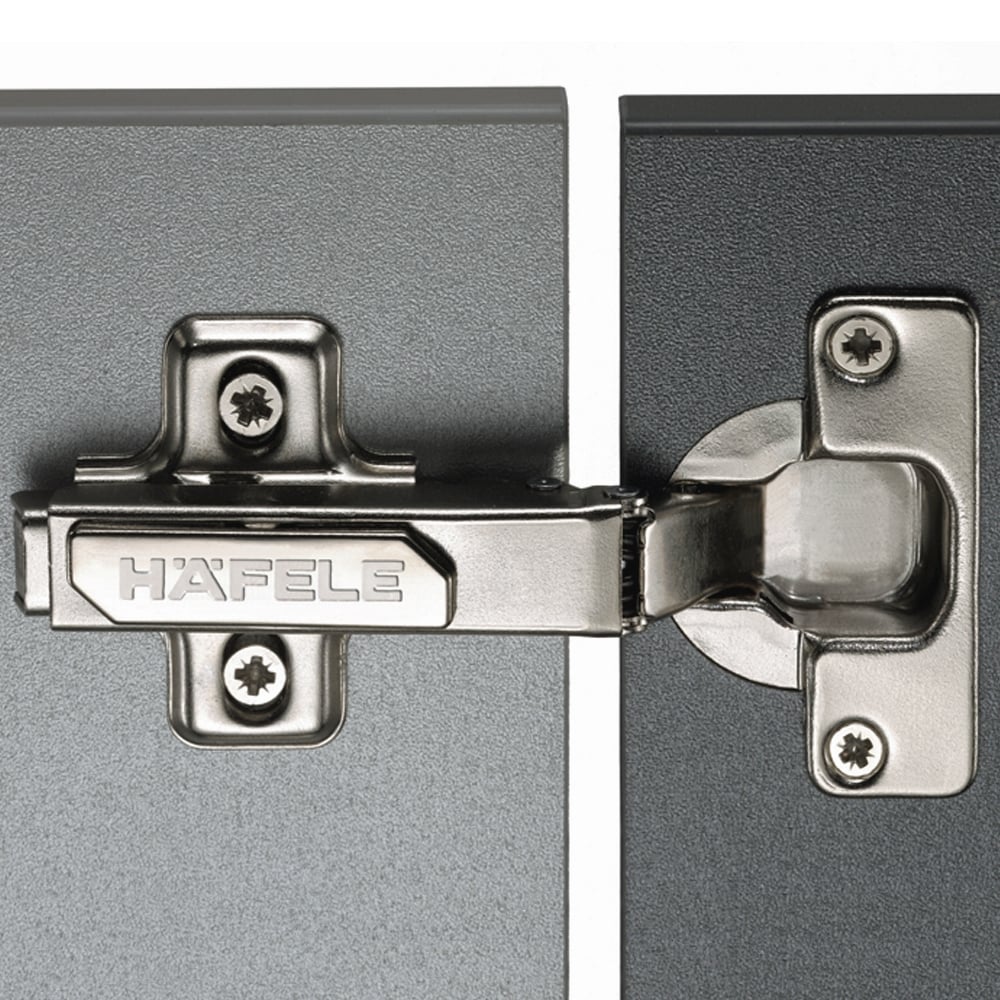

PLEASE NOTE:Picture of this product shows the item with a 0mm mounting plate, please select this option to receive the item exact to the picture

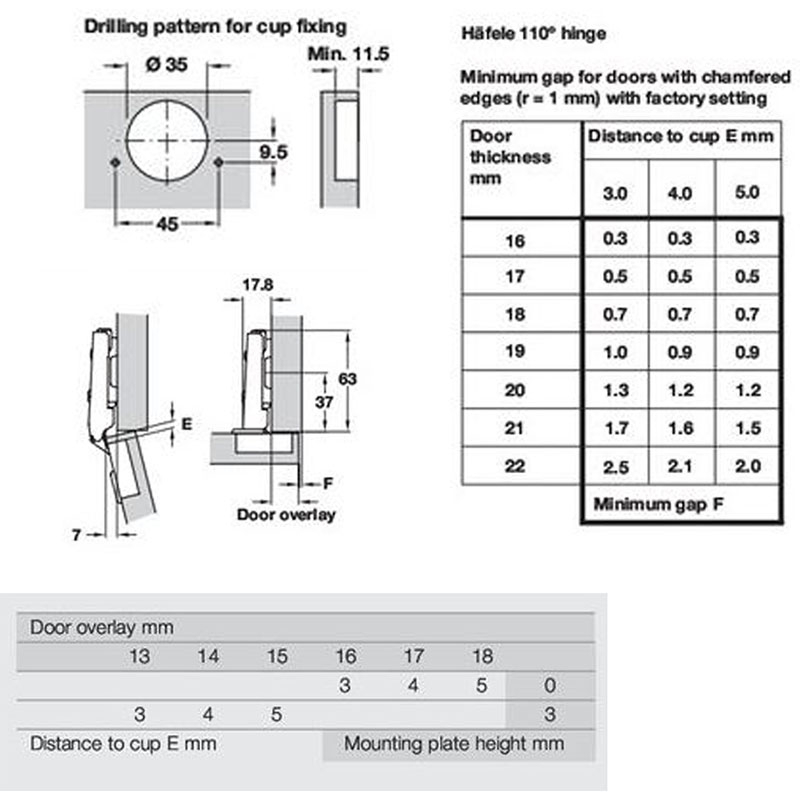

Dimensions


Please note all our dimensions are subject to a measurement tolerance of +/- 3mm


HINGE MEASUREMENTS

OVERALL LENGTH (INC ARM AND CUP):
105mm

FIXING HOLE CENTRE TO CENTRE ON CUP BRACKET:45mm

OVERALL WIDTH OF ARM: 14mm

OVERALL DEPTH OF ARM: 15mm

DRILLING DIAMETER FOR HINGE CUP:35mm

DRILLING DEPTH:11.5mm

LENGTH OF COVER CAP: 43mm

WIDTH OF COVER CAP: 11mm



0mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS

MOUNTING PLATE LENGTH:
43mm

MOUNTING PLATE HEIGHT: 9mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS THICKNESS: 0mm (designed for 18mm carcass thickness)

MOUNTING PLATE WIDTH: 52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT: 32mm



3mm PRE-MOUNTED EURO SCREW MOUNTING PLATEMEASUREMENTS

MOUNTING PLATE LENGTH:
43mm

MOUNTING PLATE HEIGHT:13mm

ADDITIONAL HEIGHT FOR STANDARD CARCASS:3mm (designed for 15mm carcass thickness)

MOUNTING PLATE WIDTH:52mm

MOUNTING PLATE HOLE TO HOLE FIXING POINT:32mm



Technical Information


Factors such as density of door material and mirror fronts can influence door weight.

Read More
