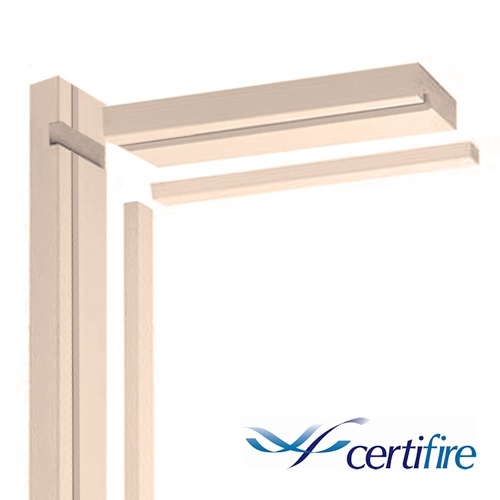

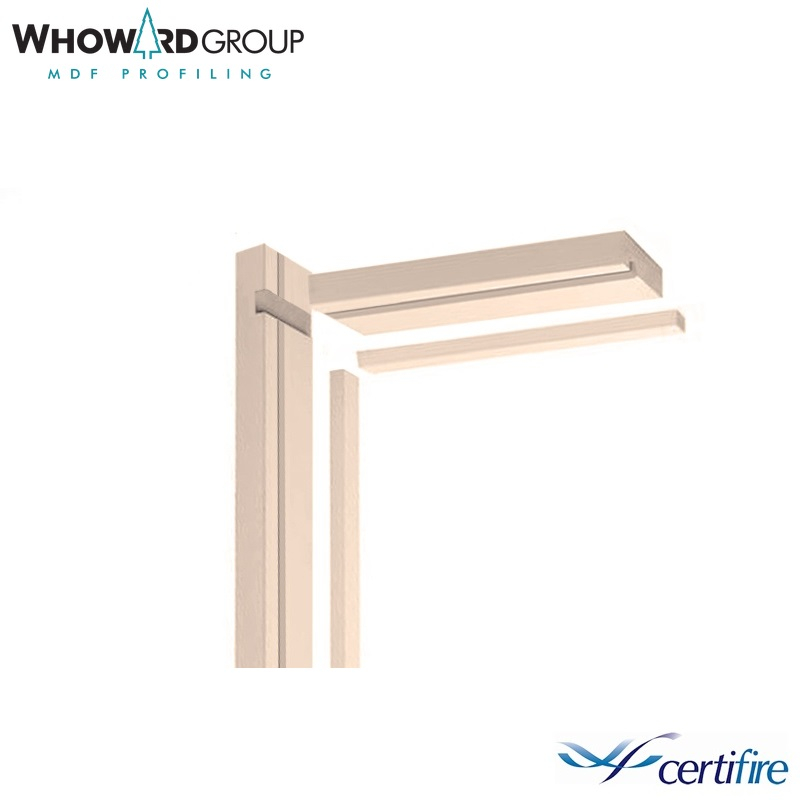

Internal Oak Veneered MDF FIRE DOOR LINING Set Sizes up to 864mm

Code:
WH/DLSAHSWAWOVL2A

MATERIAL: MDF with an oak veneerTYPE: Fire door lining set with adjustable headFINISH: Oak VeneerFIRE RATING: Certifire rating - suitable for use with 30 minute fire doors   Description High quality MDF core with a modern oak veneer Door linings and c...Read More

Create a wishlist

"Excellent"

Robert Harris

Description


MATERIAL: MDF with an oak veneer

TYPE: Fire door lining set with adjustable head

FINISH: Oak Veneer

FIRE RATING: Certifire rating - suitable for use with 30 minute fire doors



Description

  • High quality MDF core with a modern oak veneer

  • Door linings and casings manufactured to CERTIFIRE standards

  • Door lining set has an adjustable head allowing the head to be cut on site to suit the door width

  • Creates the same look and feel as solid timber

  • Includes 12 x 32 door stop

  • Comes with 15 x 4 groove ready for intumescent strip fitting (intumescent strip sold separately)

  • Suits imperial and metric doors up to 826mm x 2040mm

  • Supplied unfinished ready for a wax, oil, lacquer or wood stain finish

  • Skirtings and architraves can be fixed with a gap filling adhesive or traditional hardwood pellets

  • Uprights are pre-trenched

  • Oak veneer is 0.3mm thick

  • Manufactured defect free - no knots, no warps, no defects

  • Manufactured on a moisture resistant core

  • The jambs are trenched leaving the head to be cut on site to suit door width

  • Available in two door lining sizes

  • FSC certified


Click here for detailed fitting instructions

Click here for Certifire certification certificate of approval

Dimensions


Suitable for doors of up to 826mm in width. The set can be cut to size.

Door lining sizes (this measurement corresponds to depth from front to back of door frame x the thickness of the wood)


90mm x 25mm

100mm x 25mm

108mm x 25mm

115mm x 25mm

123mm x 25mm

133mm x 25mm

145mm x 25mm

155mm x 25mm


Door lining set can be fully adjustable to suit the following standard door sizes:


IMPERIAL:

381mm x 1981mm (1'3" x 6'6")

457mm x 1981mm (1'6" x 6'6")

533mm x 1981mm (1'9" x 6'6")

610mm x 1981mm (2'0" x 6'6")

686mm x 1981mm (2'3" x 6'6")

762mm x 1981mm (2'6" x 6'6")

838mm x 1981mm (2'9" x 6'6")

864mm x 1981mm (2'10" x 6'6")



METRIC:

426mm x 2040mm

526mm x 2040mm

626mm x 2040mm

726mm x 2040mm

826mm x 2040mm



Dimensions

Size 90mm x 25mm
100mm x 25mm
108mm x 25mm
115mm x 25mm
123mm x 25mm
133mm x 25mm
145mm x 25mm
155mm x 25mm

Downloads

There are no product downloads to show.

Questions & Answers

Question:

Hi, Im looking to cover our plain white fire doors (6 in total) with a grey/wood effect veneer covering, rather than change all the doors. Is this something you do. thanks Simon Gollings

Answer:

Unfortunately, we do not currently sell veneers separately - Apologies.
