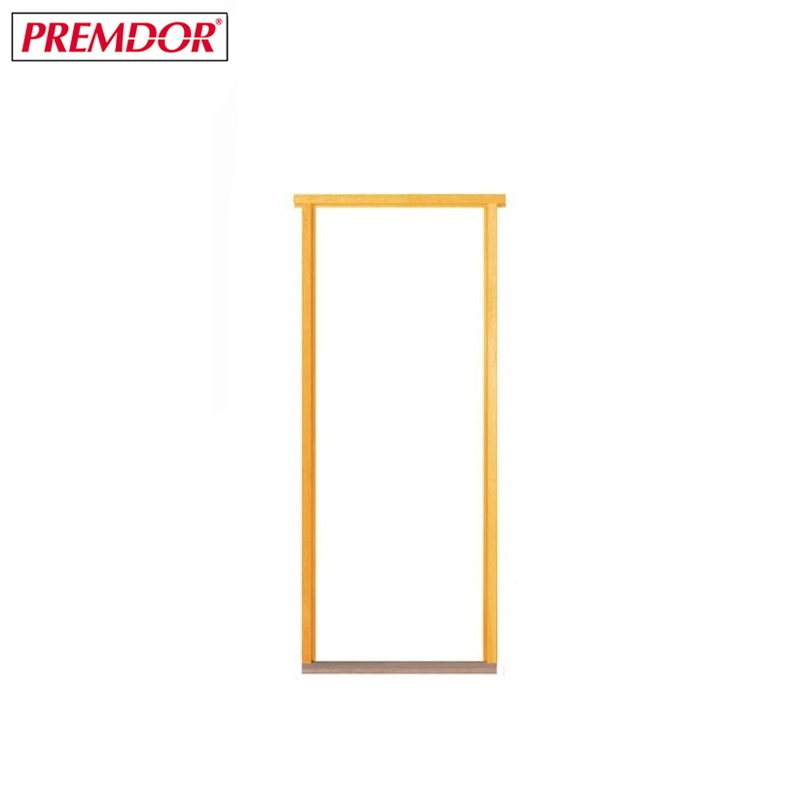

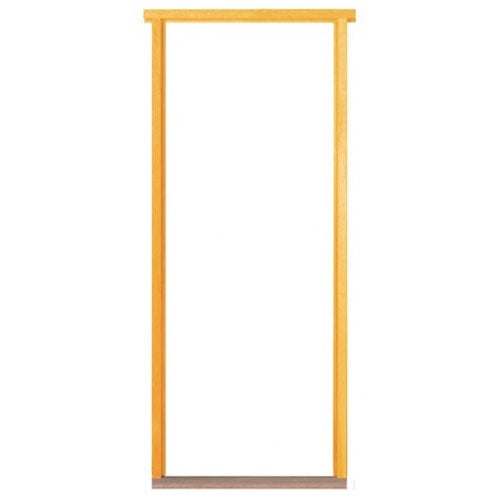

Internal Softwood Fire Rated Reversible Door Frame with Non Projecting Sill

Name: Internal Softwood Fire Rated Reversible Door Frame with Non Projecting Sill
Brand: Premdor
SKU: PD/FCN

Code:

PD/FCN

Brand:

Premdor

MATERIAL Softwood TYPE Fire rated internal door frame STYLE Reversible with non-projecting hardwood threshold included FINISH Redwood with 'honey' stain FIRE RATING 30 minute fire protection (FD30) Description Supplied with fitted 15mm intume...Read More

View full product details

View questions about this product

Create a wishlist

Allan

Description

MATERIAL Softwood TYPE Fire rated internal door frame STYLE

Reversible with non-projecting hardwood threshold included

FINISH

Redwood with 'honey' stain

FIRE RATING

30 minute fire protection (FD30)

Description

Supplied with fitted 15mm intumescent strips fitted in grooves in jambs and head of frame for fire protection
Non-projecting hardwood threshold included
Reversible door framefor inward or outward opening doors
For internal doors
Supports a range of common door sizes (30" & 33")
Made from Softwood (Redwood) with Hardwood threshold
Frames supplied 'honey' stained (Hardwood cill supplied unfinished)
Will accept a paint or stain finish
Essential component to pair with the FD30 fire door of your choice
Supplied flat packed
Guaranteed for 30 years against fungal attack and rot
Guaranteed for 10 years manufacturing defects
Made in the UK

Dimensions

To suit door size:30" x 78" (762mm x 1981mm) -Overall frame size:845mm x 2056mm

To suit door size:33" x 78" (838mm x 1981mm) -Overall frame size:921mm x 2056mm

Technical Information

Fire protection:

One hour fire door frame with a 57mm x 90mm head and jamb has 25mm (1") rebates. Half hour fire door frames have the option with or without cill. The cill is flush 50 x 78mm with the head and jambs 57 x 78mm.

Frame finishing:

All softwood frames are vacuum preservative treated. Softwood frames are supplied with a 'Honey' primed finish. Hardwood cills are supplied without a base coat stain.

Storage and installation instructions for timber door frames:

If stored outside, the frame should be placed on a level bearers and protected by a tarpaulin. There must be space for air to circulate around and be between the frames.

Check that the frame is perfectly square by measuring the frame diagonals. These are exactly the same length if the frame is square.

Specification

Dimensions

Size 30" x 78" (762mm x 1981mm)
33" x 78" (838mm x 1981mm)
