Jack Nut Screw Anchor M4 25mm

Code:
E/JACKM4X

This item is out of stock and not available to purchase.

MATERIAL:SteelTYPE:Jack Nut M4 Screw AnchorFINISH:Zinc PlatedADDITIONAL INFORMATION:25mm M4 Screw Included Description These premium steel jack nut screw anchors are light threaded inserts which are well suited for use infibreglass, composites or other plastic materials. The...Read More

Create a wishlist

"Door arrived within stated time fr…"

Alex Simpson

Description


MATERIAL:Steel

TYPE:Jack Nut M4 Screw Anchor

FINISH:Zinc Plated

ADDITIONAL INFORMATION:25mm M4 Screw Included


Description

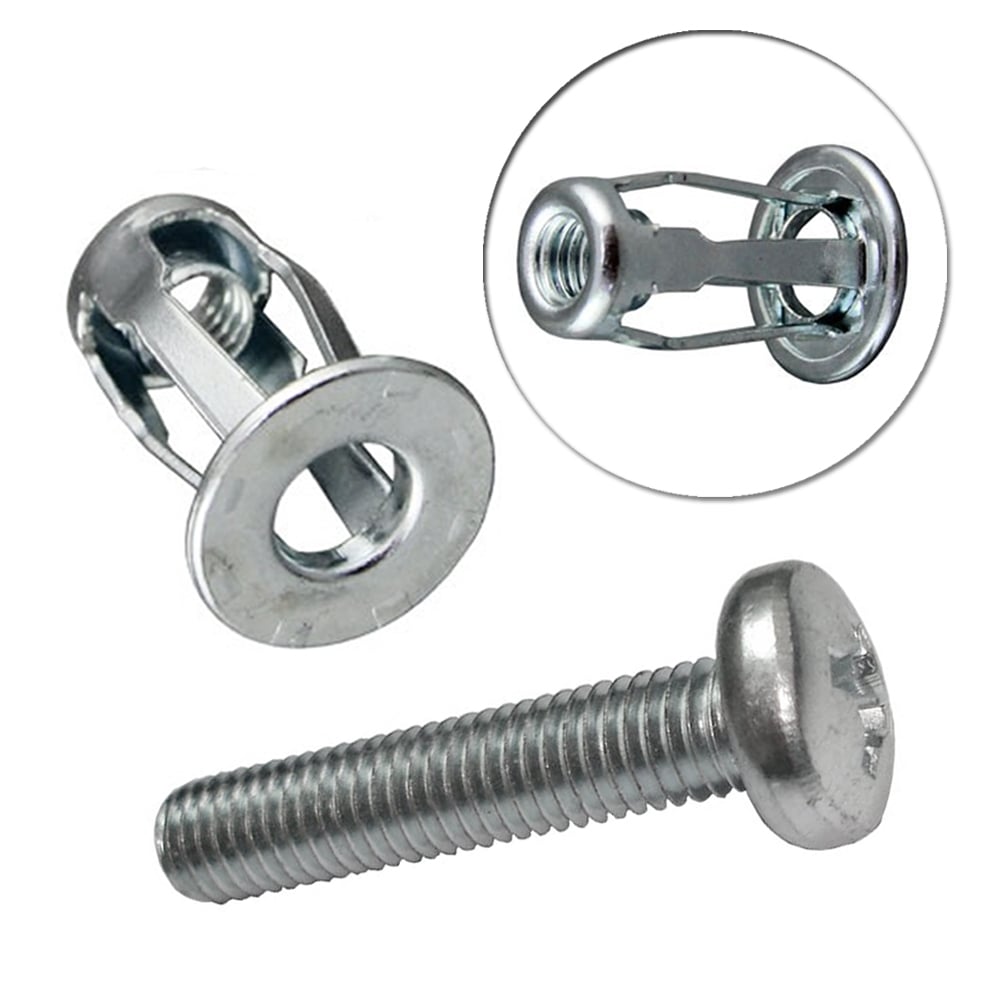

These premium steel jack nut screw anchors are light threaded inserts which are well suited for use infibreglass, composites or other plastic materials. They are mainly used in vacuum and rotational moulding applications.

  • M4 25mm screw included

  • Fitted into fibreglass, composites or other plastic materials

  • Used on applications where these is only access to one side of the panel

  • The head on the other side of the material acts to provide a load bearing surface

  • Will not distort or deform or crack plastics

  • Can be used with uneven materials

  • We recommend using a jack nut hand setting tool for easier installation



Technical Information


Upon installation the slotted sleeve of the jack nut collapses to form legs which grip the inside of the mounting surface providing a permanent and reusable screw anchor.

Please note that you may need to prize the jack nut spiders out by 1mmso when you start to screw the spiders collapse and expand, please see below picture:









Dimensions

Please note that all measurements are subject to a tolerance of +/- 3mm



SCREW ANCHOR:

Length:18mm

Width:14mm



M4 SCREW:

Length:25mm

Width:4mm

Pan Head Diameter:8mm



Details

Pack Size Pack of 5
Pack of 10
Pack of 100
Pack of 25
Pack of 250
Pack of 50
Pack of 1
