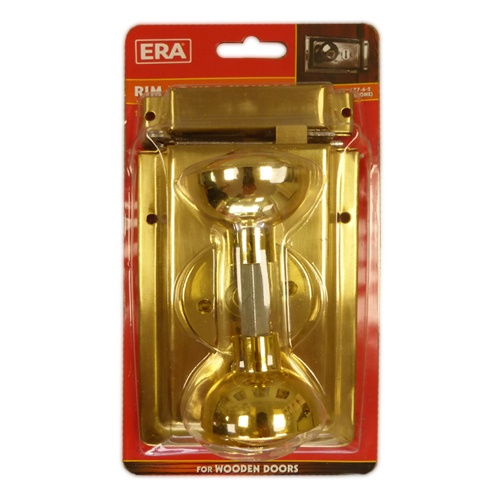

Rim Lock and Door Knob Handle Set

Name: Rim Lock and Door Knob Handle Set
Brand: ERA
SKU: E/177-3-2
Price: 15.59 GBP
Availability: LimitedAvailability

Code:

E/177-3-2

Brand:

ERA

Free UK Delivery

This item is out of stock and not available to purchase.

View alternative products

MATERIAL: BrassTYPE: Door knob handle setSTYLE: Rim lock with set of 2 keys and compatible knobsFINISH: Brass plated Lock Plastic Knobs & EscutcheonsFIXINGS: 9 x fixing wood screws, 2 keys, spindle and staple included Description PACK CONTAINS:1 x Pai... Read More

View full product details

View questions about this product

Create a wishlist

Knowwhere woman

Description

MATERIAL: Brass

TYPE: Door knob handle set

STYLE: Rim lock with set of 2 keys and compatible knobs

FINISH: Brass plated Lock Plastic Knobs & Escutcheons

FIXINGS: 9 x fixing wood screws, 2 keys, spindle and staple included

Description

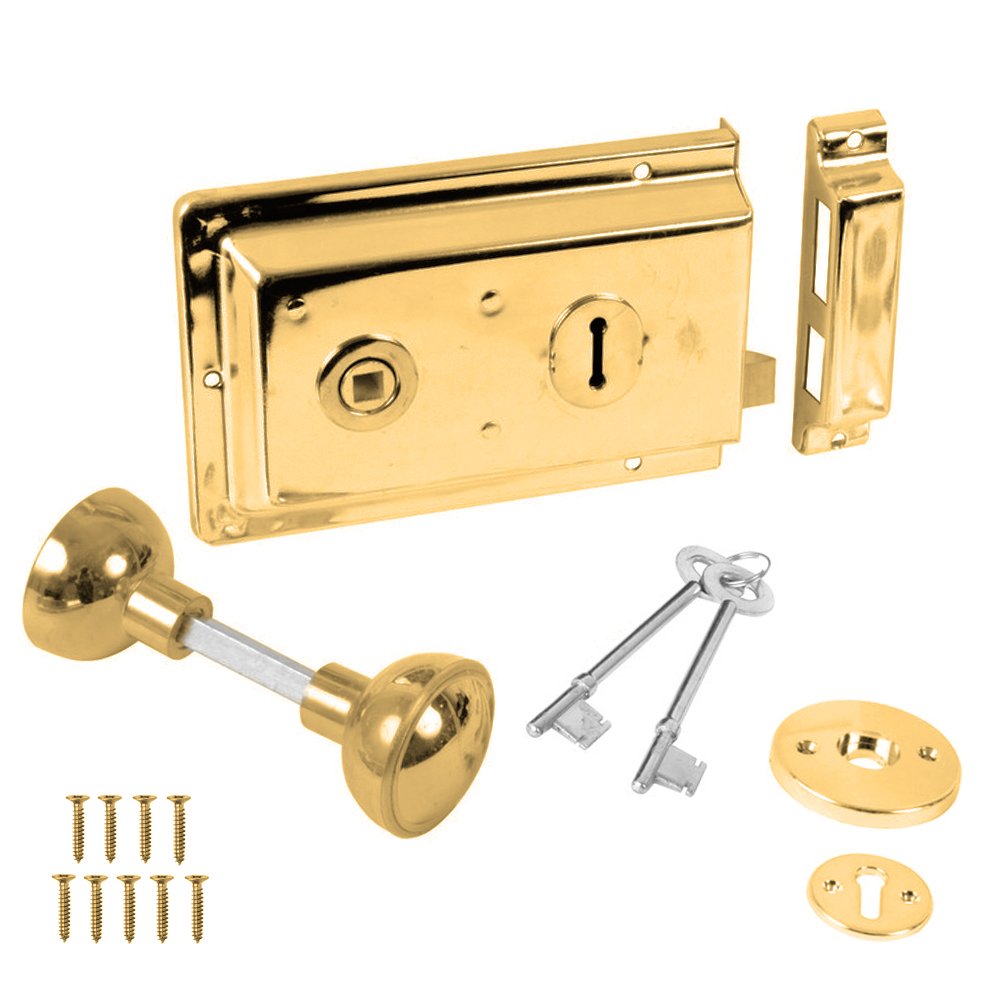

PACK CONTAINS:

1 x Pair of round rim door knobs gold colour Plastic

1 x Brass plated rim lock body with a set of two keys

1 x Handle rose

1 x Round Plastic escutcheon

1 x Rim lock staple

RIM LOCK WITH PAIR OF DOOR KNOBS PACK

These Victorian style rim door knob packs add the perfect finishing touch to your traditional wooden doors. Available with a brass plated finish and supplied with fixings and rim lock with keys.

Traditional rim lock body complete with matching knob handles
Ideal for timber doors or sheds
Non handed
All required fixings are included
Easy to fit and simple to install
Full fitting instructions included

Dimensions

Please note all dimensions are subject to a +/- 3mm tolerance

DOOR KNOB

KNOB DIAMETER: 47mm

KNOB PROJECTION (BOTH SIDES): 45mm

RIM LOCK

RIM LOCK WIDTH: 105mm

RIM LOCK LENGTH: 152mm

RIM LOCK DEPTH: 18mm

LOCK BACK SET: 45mm

HANDLE BACK SET: 105mm

Technical Information

FITTING INSTRUCTIONS

A - Position the lock on the door where it is to be fixed. Mark around the edge of the lock and the forend

B - Carefully chisel out door edge to accommodate lock until the lock forend finishes flush with door edge

C - With lock held against door face, ensuring forend is flush with door edge and in line with lock recess, mark position of spindle holes

D - Drill suitable holes through door. Replace lock and check alignment of spindle holes

E - Check the sash bolt is suitable for the door opening. The angled edge must be facing the door frame. To reverse the latchbolt open and remove case, remove screw from the latch. Rotate latchbolt 180 degrees replace screw and re-assemble case. Secure lock onto door using screws provided.

F - Prior to closing door, fix furniture and test latch and deadbolt operations.

G - With the door open and the bolt in the lock position, close door and mark positions of bottom of bolt and top of latch on the door frame. Mark position of box staple and fix to door frame using screws provided.

MAINTENANCE

Use a moist cloth only, household abrasives or solvents may affect the surface finish.
