Single Pocket Door Cavity Sliding System FW100 (doors sold separately)

Code:
SIP/POCUNI100

This item is out of stock and not available to purchase.

MATERIAL: Metal frame cassette and aluminium track  TYPE: Single pocket door cavity sliding system STYLE: Sliding door kit for plasterboard inner walls FIXINGS: All fixings for basic kit included  ADDITIONAL FEATURES: Suitable for use with 35 - 40mm thickness doo...Read More

Create a wishlist

"Exactly as described"

Jodie Griffiths

Description

MATERIAL: Metal frame cassette and aluminium track

TYPE: Single pocket door cavity sliding system

STYLE: Sliding door kit for plasterboard inner walls

FIXINGS: All fixings for basic kit included

ADDITIONAL FEATURES: Suitable for use with 35 - 40mm thickness doors

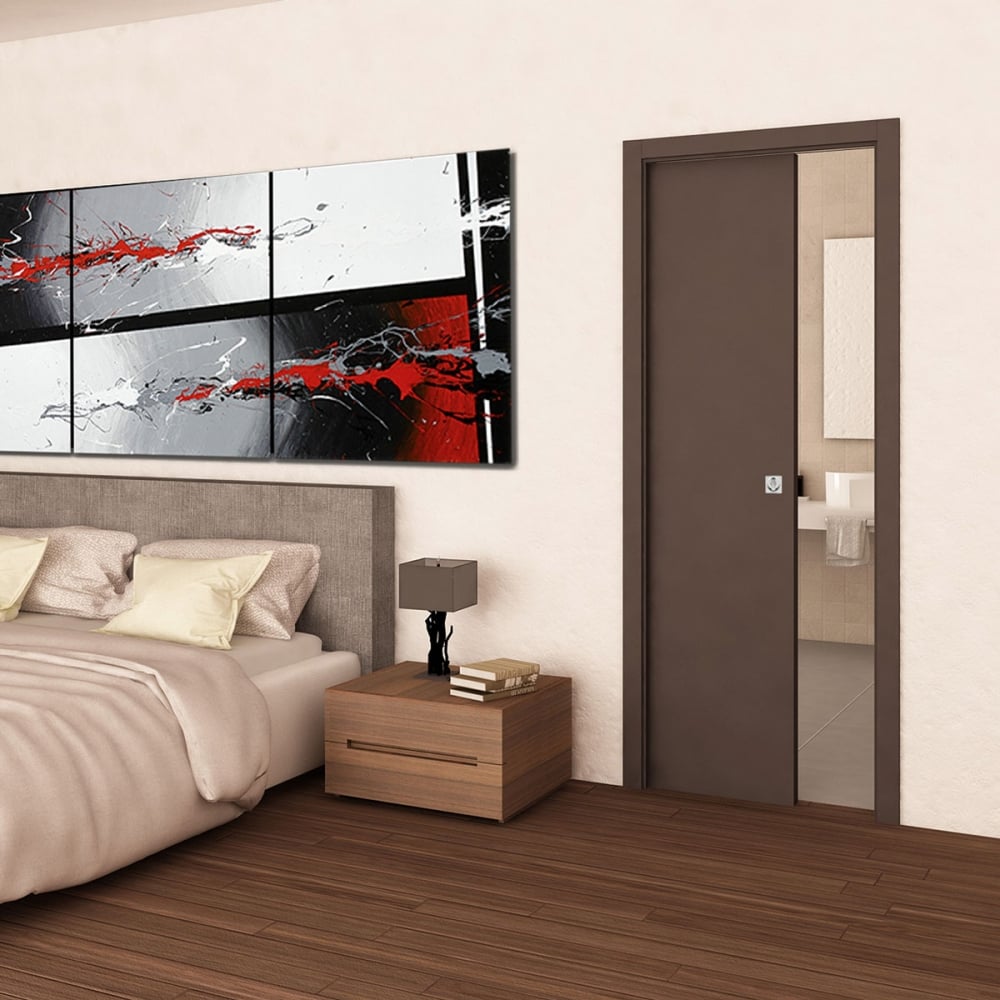

The Dynasty quick fit pocket door cassette is ready assembled for stud and plasterboard inner walls and designed to accommodate a single sliding door. It is particularly suitable for kitchens, bathrooms, and all projects where you need to save space and to have easy access.

  • High quality modern system that allows an internal door (not included) to slide into a pocket in the wall cavity
  • Perfect for small spaces instead of a hinged door
  • The rigid cassette framing system is supplied pre-assembled saving time on site
  • Allows doors between 35mm - 40mm thick to be installed with a finished wall of 100mm
  • Link kit to combine two single pocket doors systems and create a double sliding door available (sold seperately)
  • This system allows you to easily change your door in the future without structural alteration to the wall
  • Fast installation - can be fitted in far less time compared to Flat Pack models
  • Door is fitted after installation of cavity system to avoid damaging door
  • Soft close 'damper' unit for a smooth closing action is available for this system (sold separately)
  • Instructions included
  • We always recommend that doors must be pre-finished prior to installation with pocket door system
  • Final adjustments to height must be done prior to fixing trim and architraves

Please note: We recommend using 20mm screws with this kit (NOT 25mm)

HOW DOES A CAVITY POCKET DOOR SYSTEM WORK?

Pocket doors are designed to remove the unusable space within buildings. By removing the footprint created by traditional hinged doors, users can make the most of their space.

Cavity pocket door systems are ideal for en suites, living rooms, corridors, bathrooms and office spaces.

Li: Structural width of the kit

Hi: Structural height of the kit

Lp: Opening width

Hp: Opening height

WHAT'S INCLUDED IN THE PACK?

1 x Pre-assemble metal frame cassette

1 x Aluminium track

1 x Wooden jamb

2 x Horizontal space bars

2 x Adjustable hangers (A)

2 x Door brackets (B)

1 x Retaining hook (O)

1 x Door stop (I)

1 x Door guide (N)

Plasterboard screws and fixing nuts

Wall plugs

PLEASE NOTE: Fixings are supplied inside of the cassette to prevent damage during shipping.

Dimensions

27" x 78" System (686mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1430mm x (H) 2052mm
WALK THROUGH AREA: (W) 661mm x (H) 1971mm
FINISHED WALL x INTERNAL SPACE: 100mm x 52mm
MAXIMUM DOOR THICKNESS: 40mm
CASSETTE WIDTH: 696mm

30" x 78" System (762mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1581mm x (H) 2052mm
WALK THROUGH AREA: (W) 737mm x (H) 1971mm
FINISHED WALL x INTERNAL SPACE: 100mm x 52mm
MAXIMUM DOOR THICKNESS: 40mm
CASSETTE WIDTH: 790mm

33" x 78" System (838mm x 1981mm):

STRUCTURAL OPENING SIZE: (W) 1733mm x (H) 2052mm
WALK THROUGH AREA: (W) 813mm x (H) 1971mm
FINISHED WALL x INTERNAL SPACE: 100mm x 52mm
MAXIMUM DOOR THICKNESS: 40mm
CASSETTE WIDTH: 850mm

Technical Information

ALERT: There may be sharp edges on the metal cassette so when installing PLEASE USE GLOVES!

GROOVING YOUR DOOR:

Door grooving is required prior to fitting your chosen door to the pocket door system and is when the bottom edge of the door is grooved to fit in the floor guide of a pocket door.

Dimensions

Door Height 1981mm (78") Door Thickness 40mm Door Width 915mm (36") Size 27" x 78" (686mm x 1981mm)
30" x 78" (762mm x 1981mm)
33" x 78" (838mm x 1981mm)
36" x 78" (915mm x 1981mm)

Details

Extras Trim Finishing Pack
No Extras Required
