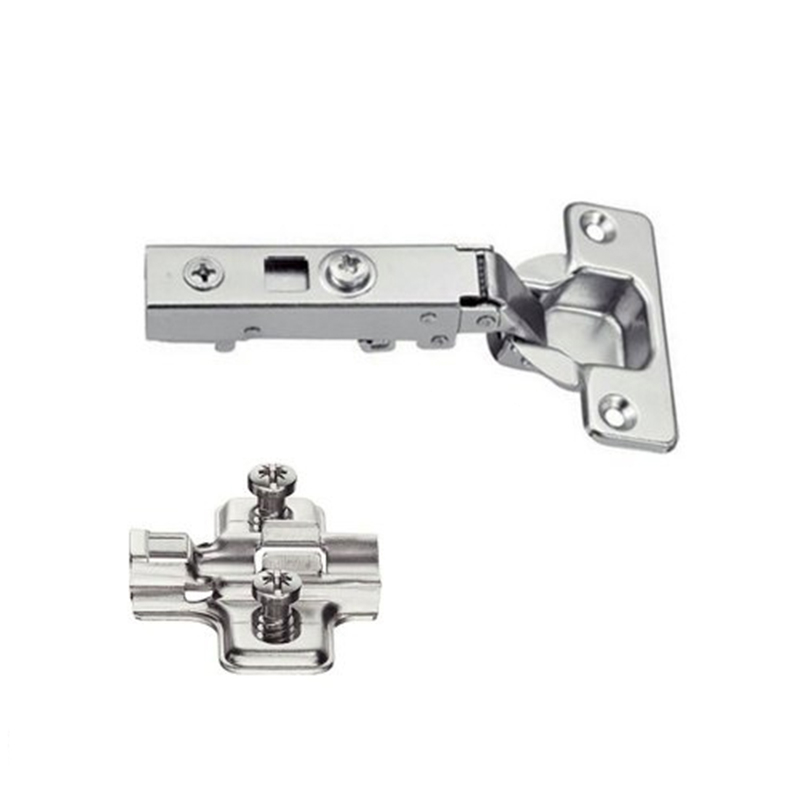

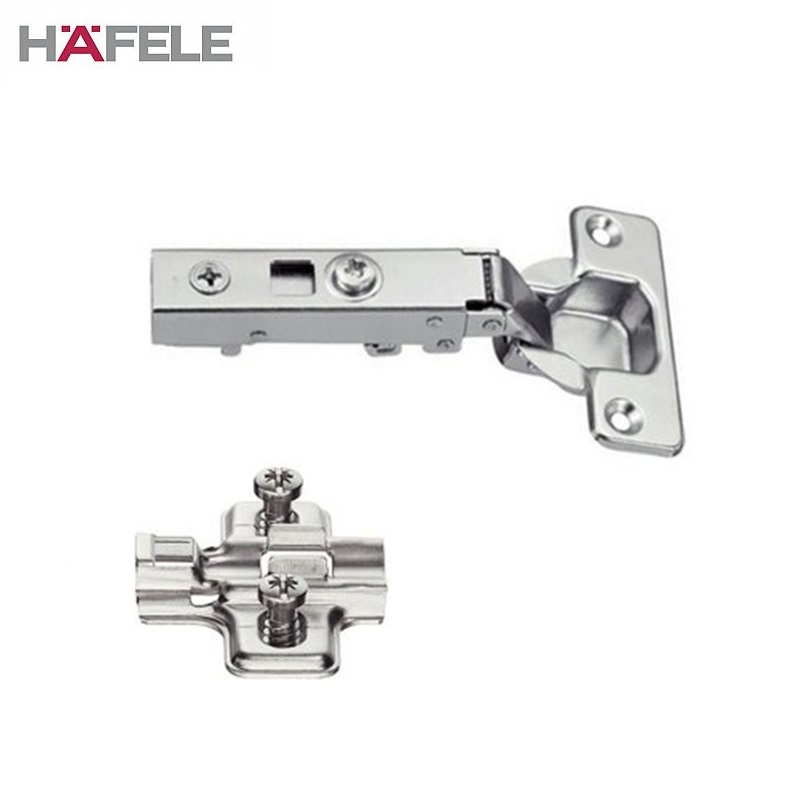

Soft Close Cabinet Hinge with Cruciform Plate

Code:
HF/31160505716
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

MATERIAL: Steel TYPE: Soft Close Cabinet Hinge STYLE: Cabinet Door Concealed FINISH: Nickel Plated FIXINGS: Cruciform mounting plate & screws included Description This kitchen cabinet hinge offers modern technology by combining both the soft close silent operation al...Read More

Create a wishlist

"Great service…"

Anne Marie Francis

Description

MATERIAL: Steel

TYPE: Soft Close Cabinet Hinge

STYLE: Cabinet Door Concealed

FINISH: Nickel Plated

FIXINGS: Cruciform mounting plate & screws included

Description

This kitchen cabinet hinge offers modern technology by combining both the soft close silent operation along with the easy to remove clip function.

The soft close mechanism allows your kitchen cabinet door to slowly close eliminating slamming doors, and the clip function allows you to remove the door at the press of a button.

This hinge comes complete with a cruciform mounting plate and pre inserted euro screws for attaching to your cabinet and is designed for 18mm kitchen cabinets.

  • Opening angle 110 degree
  • Automatic closing spring
  • 35 mm cup diameter
  • For 14 - 22 mm door thickness
  • Integrated soft close
  • Screw fixing or dowel fixing cup
  • Smuso Quick fixing arm
  • Nickel-plated steel
  • Cruciform mounting plate with pre-mounted Euro screw
  • One part plate with 2 mm height adjustment

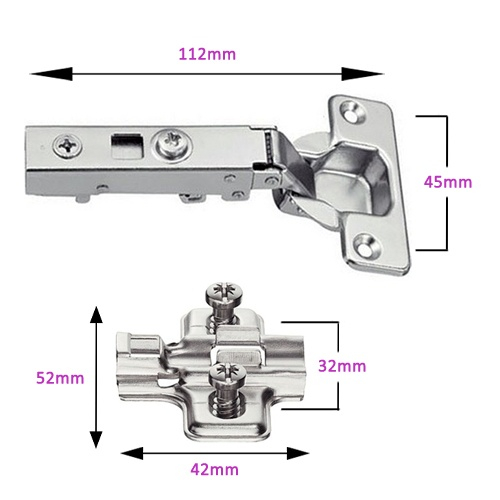

Dimensions

110 degree turn

OVERALL HINGE LENGTH: 112mm

HINGE HOLE TO HOLE FIXING POINTS: 45mm

CRUCIFORM PLATE LENGTH: 42mm

CRUCIFORM PLATE WIDTH: 52mm

CRUCIFORM PLATE HOLE TO HOLE FIXING POINT: 32mm

Details

Finish Nickel Plated
