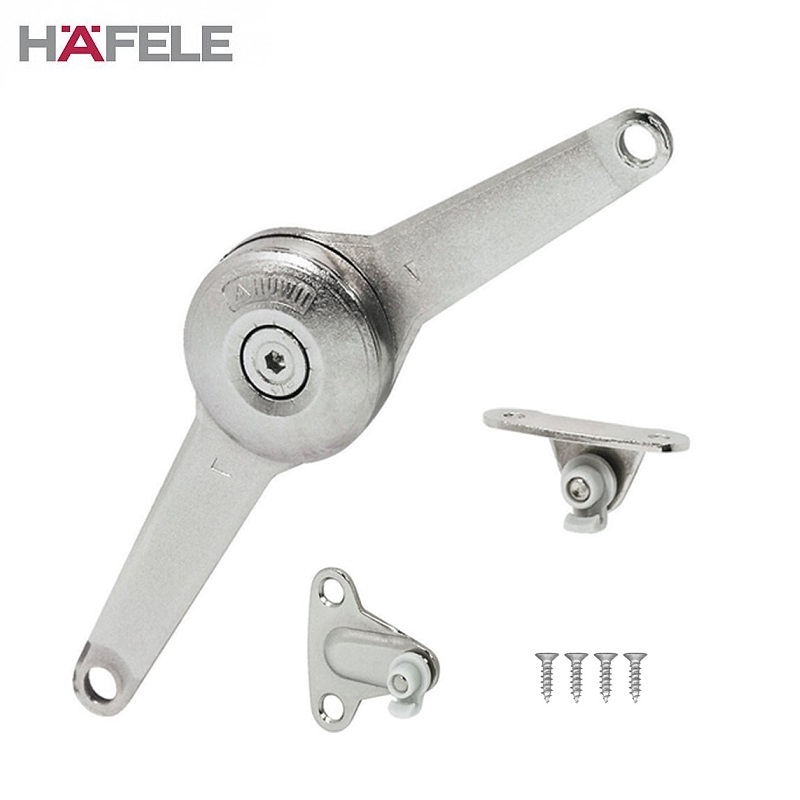

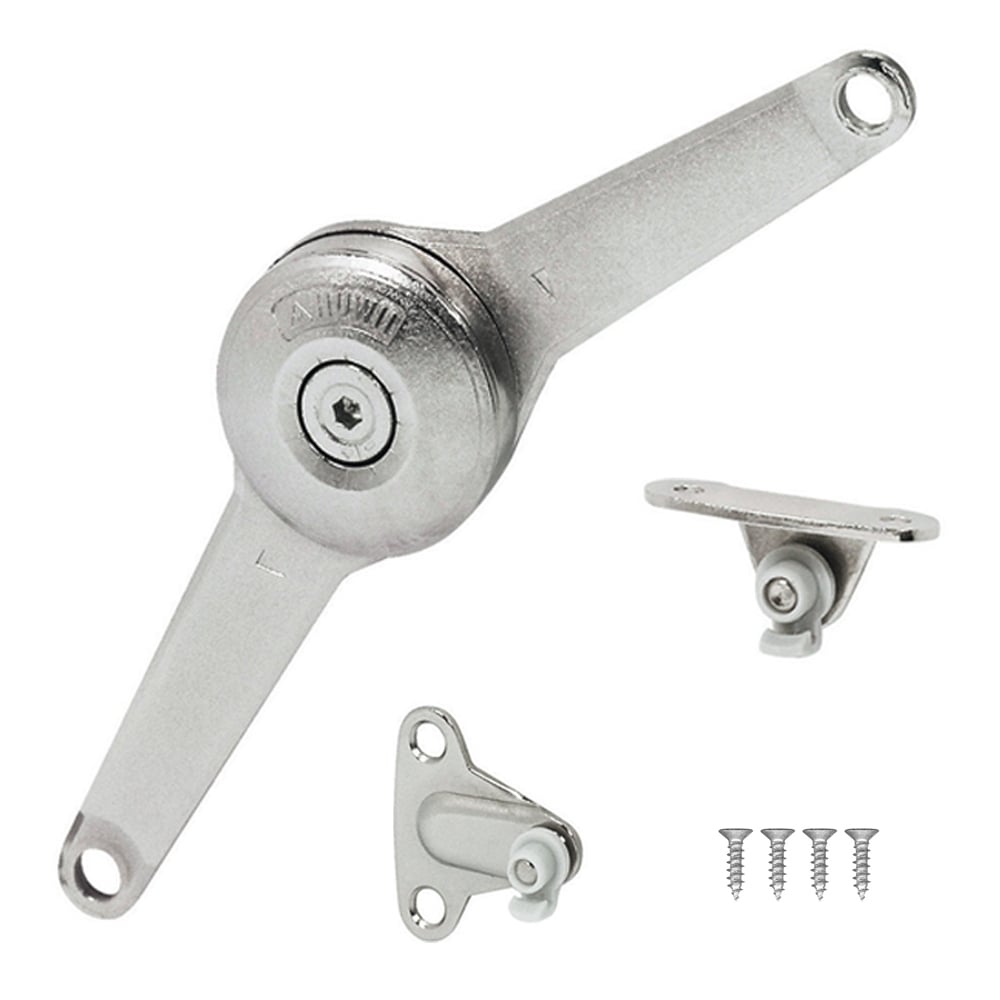

Standard Duo Lid and Flap Stay Set

Code:
HF/37366612
Brand:
Free UK Delivery

This item is out of stock and not available to purchase.

MATERIAL: Steel (brackets) and Zinc Alloy (lid stay)TYPE: Cabinet hinge lid and flap staySTYLE: Drop down cabinetsFINISH: Nickel platedFIXINGS: 3.5mm x 15mm raised hospa screws includedADDITIONAL FEATURES: Supports three opening angles: 75, 90, 110 degree Description Cabin...Read More

Create a wishlist

"perfectly adequate delivered on al…"

Daniel Craig

Description

MATERIAL: Steel (brackets) and Zinc Alloy (lid stay)
TYPE: Cabinet hinge lid and flap stay
STYLE: Drop down cabinets
FINISH: Nickel plated
FIXINGS: 3.5mm x 15mm raised hospa screws included
ADDITIONAL FEATURES: Supports three opening angles: 75, 90, 110 degree

Description

  • Cabinet hinge lid and flap stay set for use with wooden lids or lids with aluminium frames (20-45mm frame width supported)

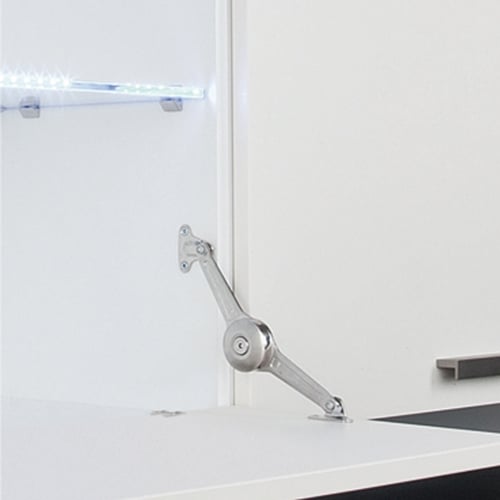

  • Useful for down drop kitchen and bathroom cabinet and cupboard doors
  • Unhanded design
  • Minimum installation depth of 130mm

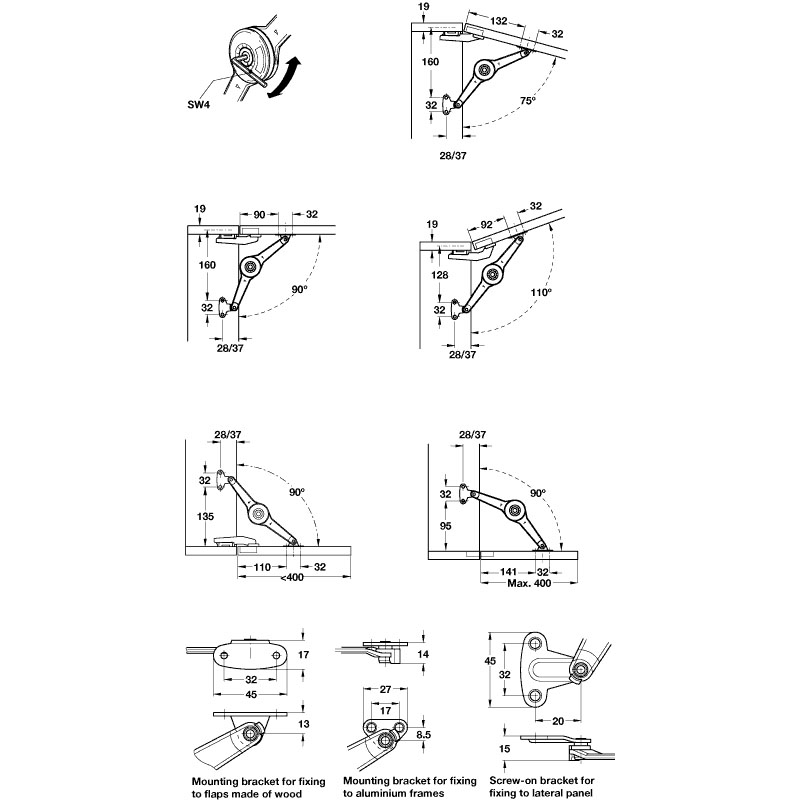

  • Item supports three different opening angles: 75, 90, 110 degree
  • Self closing function

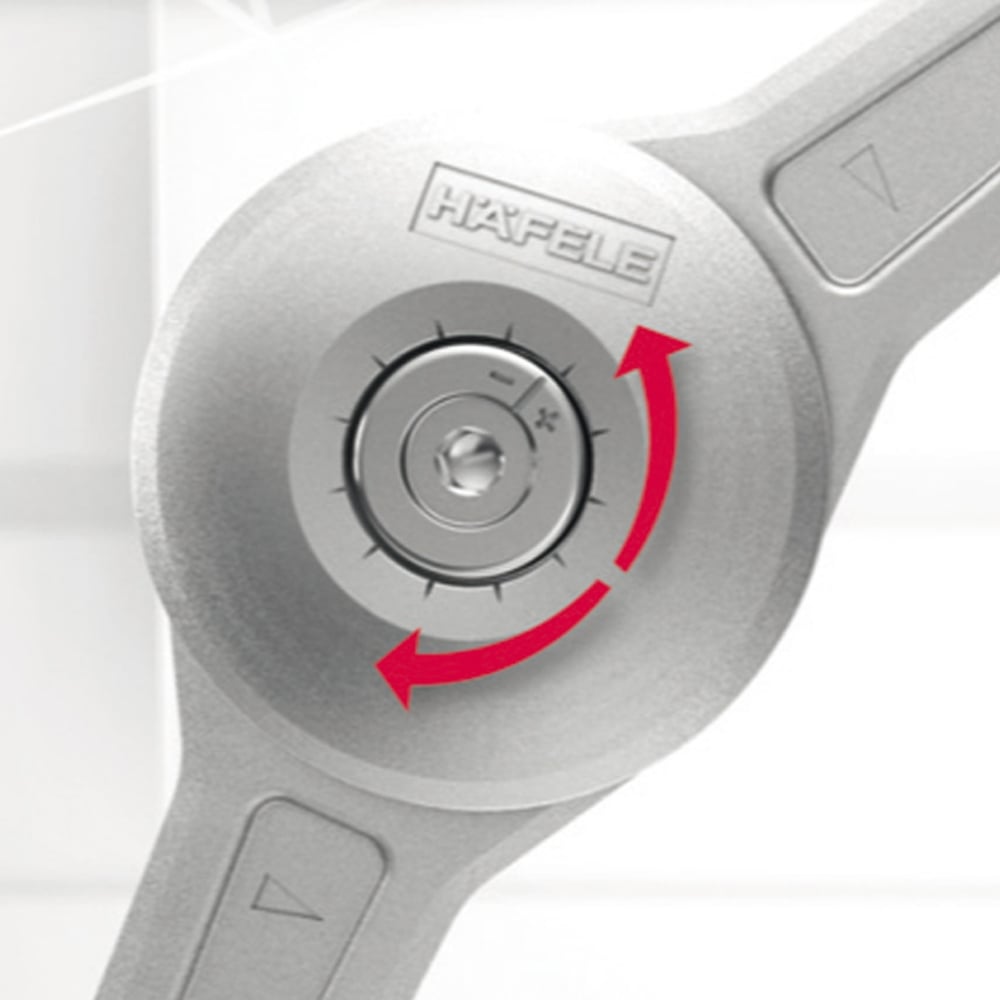

  • Contains braking and locking mechanism that can be easily adjusted using a SW4 hex key (not included)
  • Height 2 mm. side +3/-1 mm, tilt 1.5 mm and pull adjustment facility
  • This item clip-mounts to fixing brackets with pre-mounted screws
  • Brackets are made from steel whilst stay is made from zinc alloy
  • Adjusting the arms (overshear) turns the lid stay into a flap stay
  • Wear-resistant friction coupling with large adjusting range
  • This item requires concealed cabinet hinges to also be installed to the door/lid/flap
  • Installation instructions included

Please note: only ONE cabinet hinge is included

Why use cabinet stays?

Stays offer freedom of movement, and creatively challenge space constraints, by varying the opening geometry so that the type of opening is geared to the amount of available space or the intended application.LIFT UPorDROP DOWNstays are available for a wide range of application types

What is a drop down stay?

Featuring a smooth slow down system, once you begin to drop down the door, the automatic stay continues to open gently by itself

Dimensions

Please note that all dimensions are subject to a tolerance of +/- 3mm

OVERALL LENGTH: 205mm

SUITABLE DISTANCE FROM EDGE: 37mm

DIAMETER OF CENTRAL MECHANISM: 47mm

FIXING POINT CENTRE TO CENTRE: 195mm

Dimensions

Size 205mm

Details

Finish Nickel Plated
